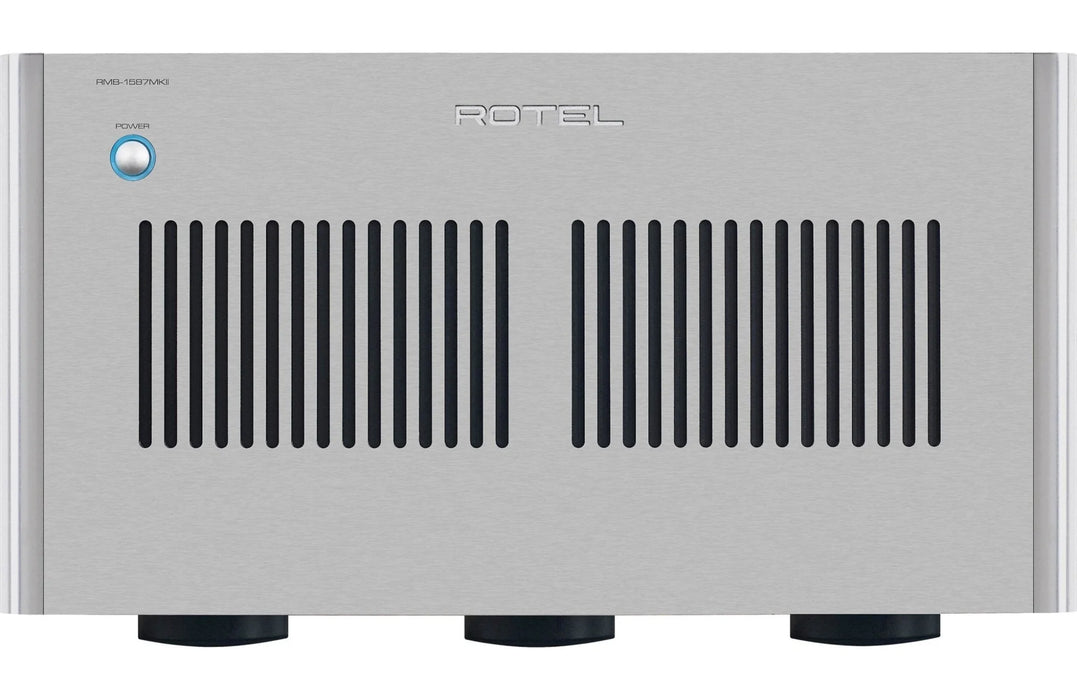

Rotel RMB 1587 MKII - Home Theatre Seven Channel Power Amplifier

by Rotel
₹ 559,900 - ₹ 559,900
₹ 559,900
₹ 559,900
₹ 559,900 - ₹ 559,900
₹ 559,900

Taxes & Shipping Included

Color: Silver

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems. The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.

Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

The RMB-1585MKII is available in both black and silver colors.

Features
  • 155 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all seven channels driven
  • 4-ohm stable for use with a wide range of speakers
  • Class AB design
    • dual custom-made massive toroidal transformers for stable, noise-free performance
    • eight high-efficiency energy storage capacitors provide a ready supply of current
  • frequency response: 10-100,000 Hz (+0/-0.3dB)
  • signal-to-noise ratio: 111 dB
  • four thermostat-controlled, variable-speed ultra-low-noise fans
  • rack-mountable with optional hardware (sold separately)
  • detachable power cord

Specifications

Continuous Power Output
155W/Ch (7 channels driven, 8Ω)
250W/Ch (7 channels driven, 4Ω)
335W/Ch (2 channels driven, 4Ω)


Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%

Frequency Response
10Hz - 100kHz +0, -3dB

S/N Ratio (IHF "A" Weighted)
111dB

Gain
26.6dB

Crosstalk/Separation
>55dB
Dimensions (W × H × D)
431 × 237 × 456mm
17" × 9.4" × 18"

Front Panel Height
5U / 221mm (8.75")

Power Requirements
220V, 50Hz

Power Consumption
1400W

Net Weight
37.6kg (82.9lbs.)

BTU Rating (4Ω, 1/8th power)
4016 BTU/h
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
330

INPUT SENSITIVITY
Line Level Inputs (RCA): 1.61V
Line Level Inputs (XLR): 3.4V

INPUT IMPEDANCE
Line Level Inputs (RCA): 12kΩ
Line Level Inputs (XLR): 50kΩ
