Rotel RMB 1506 - 6 Channel Power Amplifier - The Audio Co.

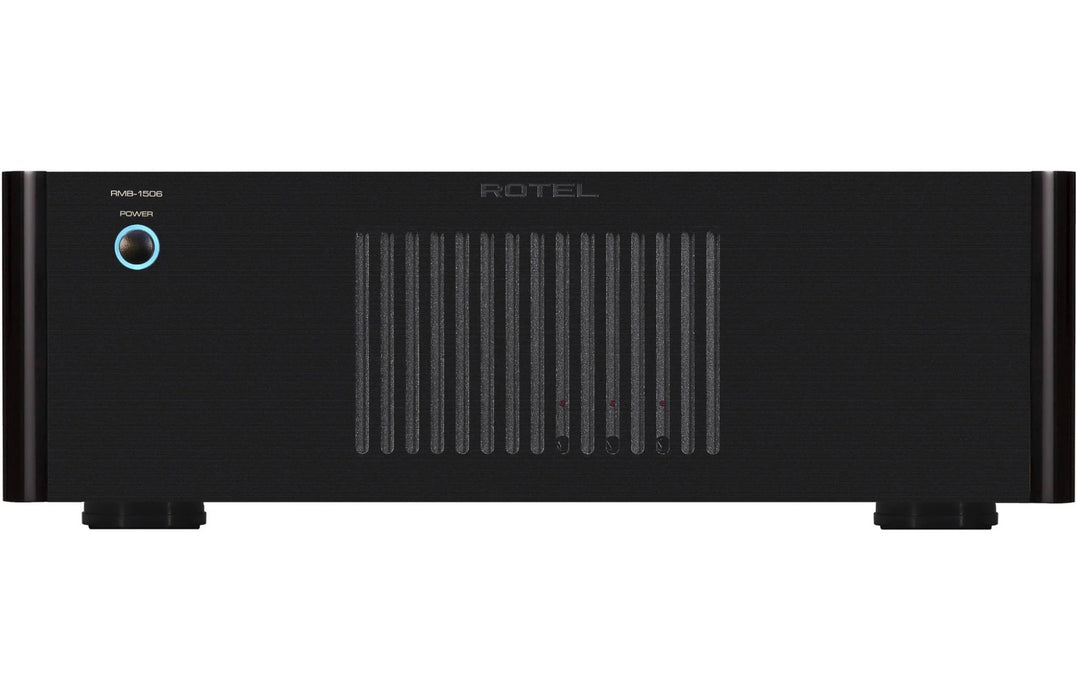

Rotel RMB 1506 - 6 Channel Power Amplifier

by Rotel
₹ 139,900 - ₹ 139,900
₹ 139,900
₹ 139,900
₹ 139,900 - ₹ 139,900
₹ 139,900

Taxes & Shipping Included

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.

Features

  • 6 x 50 Watts of robust power
  • Class AB amplifier design
  • Automatic signal sensing
  • 12v trigger input

Specifications

CONTINUOUS POWER OUTPUT
50W/Ch (All channels driven, 8Ω)
80W/Ch (All channels driven, 4Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE
10Hz - 100kHz ±1dB

S/N RATIO (IHF "A" Weighted)
115dB

GAIN
26dB


DIMENSIONS (W × H × D)
431 × 144 × 424mm
17" × 5.7" × 16.7"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
450W

STANDBY POWER CONSUMPTION
2.6W

NET WEIGHT
15.3kg (34lbs.)

BTU RATING (4Ω, 1/8th power)
1680 BTU/h


INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
>200

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
1V

INPUT IMPEDANCE
20kΩ

Support
  • Datasheet
  • Manual
