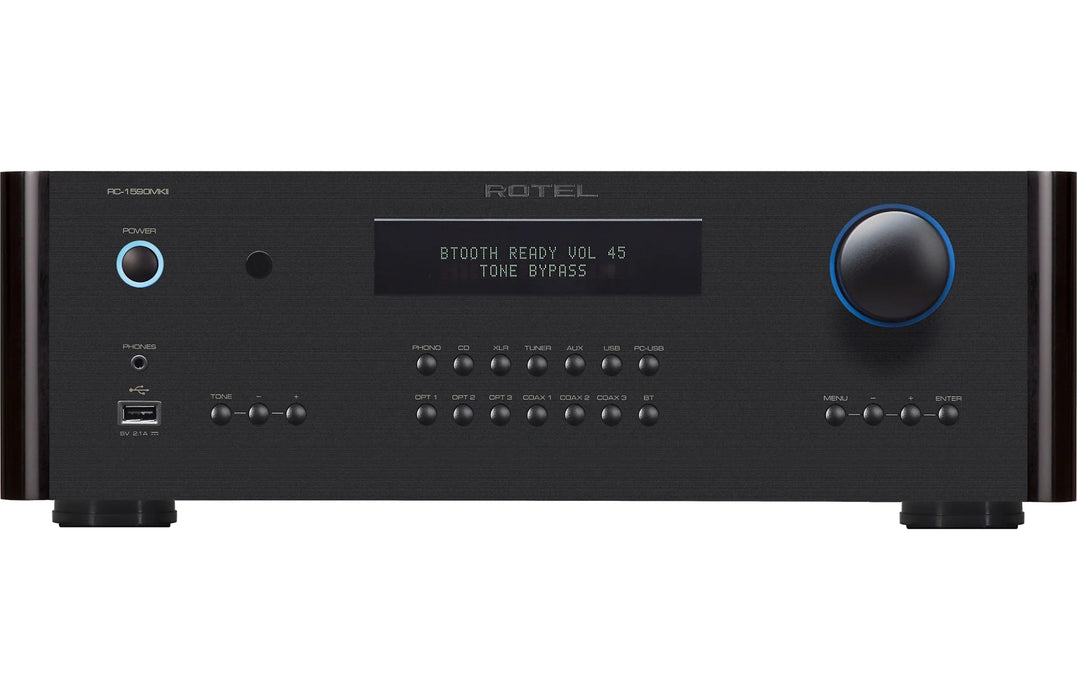

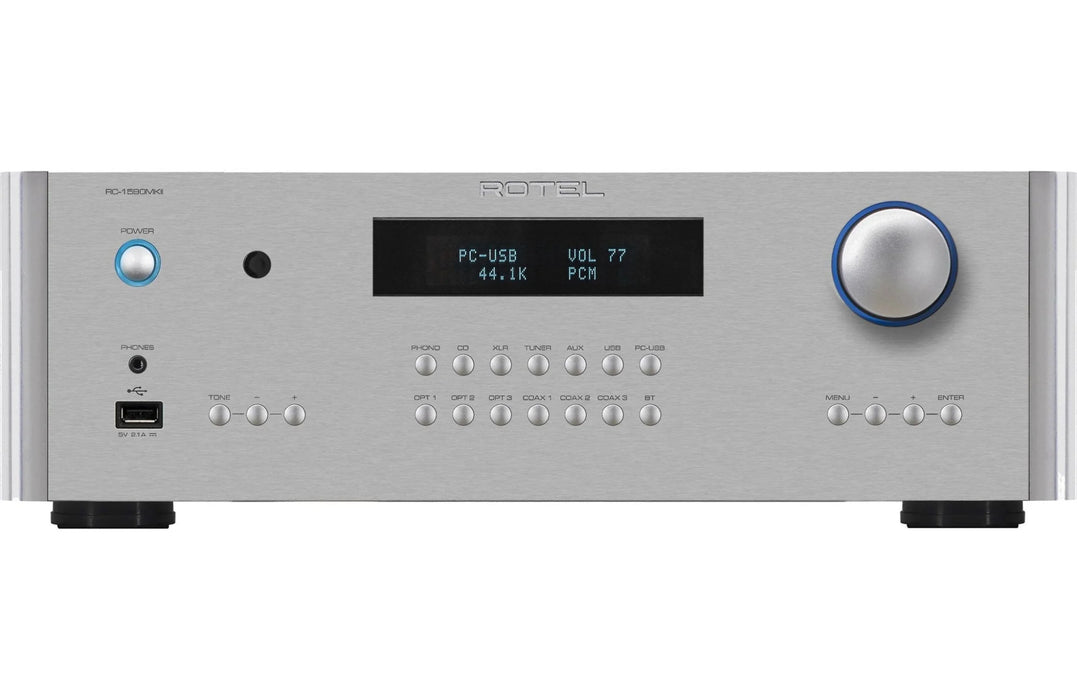

Rotel RC 1590MKII - Audiophile Stereo Preamplifier with Bluetooth & DAC

by Rotel
₹ 244,900 - ₹ 244,900
₹ 244,900
₹ 244,900
₹ 244,900 - ₹ 244,900
₹ 244,900

Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that -- a reference preamplifier rending analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.

Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.



Features

  • Certified Roon Tested
  • Supports MQA & MQA Studio
  • Texas Instruments premium 32-bit/ 384kHz Digital to Analog Converter
  • Moving Magnet phono stage input for Turntable connection
  • Wireless Bluetooth with aptX and AAC
  • Balanced XLR inputs and outputs

Specifications

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.002%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (+0dB, +0.1dB)
Digital Inputs: 20Hz - 20kHz (0±0.5dB, Max)
Phono Input: 20Hz - 20kHz (+0.3dB, -0.2dB)

S/N RATIO (IHF "A" Weighted)
Line Level Inputs (RCA): 117dB
Line Level Inputs (XLR): 115dB
Digital Inputs: 108dB
Phono Input: 80dB

DIMENSIONS (W × H × D)
431 × 144 × 348mm
17" × 5.7" × 13.9"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
45W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
10.1kg (22.27bs.)

BTU RATING
78 BTU/h

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.002%

INPUT SENSITIVITY
Line Level Inputs (RCA): 150mV
Line Level Inputs (XLR): 250mV
Digital Inputs: 0dBFs
Phono Input (MM): 2.5mV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 64mV

OUTPUT LEVEL
Unbalanced (RCA): 1V
Balanced (XLR): 2V

CHANNEL SEPARATION
Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB

TONE CONTROLS
±10dB at 100Hz / 10kHz

PREOUT LEVEL
1.65 V (at - 20 dB)

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested



Support

Reviews & Awards



About Rotel

For over six decades Rotel has been engineering, manufacturing, and delivering audio products built to the highest standards of quality, with extraordinary performance and exceptional value.  This Japanese family owned, and family operated business leverages the tradition and heritage of this 60-Year old icon brand supported by innovation and passion delivering products proud to wear the Rotel badge building our ever-growing extended Rotel family of customers including audiophiles, music lovers, musicians, recording artists and loyal fans.
