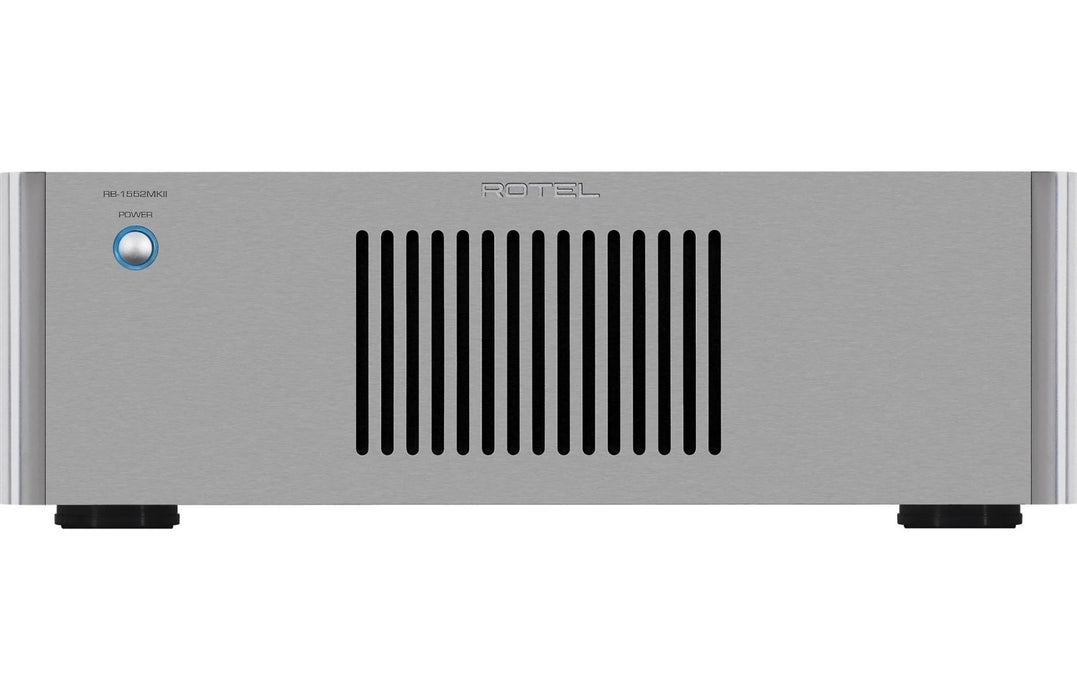

Rotel RB 1552 MkII - Audiophile Stereo Power Amplifier

by Rotel
Rs. 118,900.00

The RB-1552MKII is a 130 watt per channel class A/B amplifier. It is engineered to be powerful and robust, yet able to extract every last nuance out of even the most complex musical score.

Rotel engineering’s fanatical attention to detail means the sum is greater than the parts, what we call our Balanced Design Concept*. Each aspect of design is carefully considered holistically to result in maximum audio performance; from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results. The RB-1552MKII features independent left and right power rectification stages and decoupling, and is essentially a mono block design. Further evidence of design over- spec is in the selection of premium “slit-foil” capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.

The RB-1552MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very affordable, as has been the tradition with Rotel electronics for over 50 years.


Features

  • 2 x 130 Watts of Robust Power
  • Class AB amplifier design
  • High-quality slit foil Capacitors made in Britain
  • Rack ears included
  • Balanced XLR inputs

    Specifications

    CONTINUOUS POWER OUTPUT
    130W/Ch (All channels driven, 8Ω)

    TOTAL HARMONIC DISTORTION (THD)
    (20Hz–20kHz) <0.03%

    FREQUENCY RESPONSE
    10Hz - 100kHz ±0.5dB

    S/N RATIO (IHF "A" Weighted)
    120dB

    GAIN
    RCA: 26.5dB
    XLR: 22.5dB
    DIMENSIONS (W × H × D)
    431 × 144 × 339mm
    17" × 5.7" × 13.4"

    FRONT PANEL HEIGHT
    3U / 132.6mm (5.25")

    POWER REQUIREMENTS
    230V, 50Hz

    POWER CONSUMPTION
    400W

    STANDBY POWER CONSUMPTION
    0.5W

    NET WEIGHT
    12.4kg (27lbs.)

    BTU RATING (4Ω, 1/8th power)
    905 BTU/h
    INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
    <0.03%

    DAMPING FACTOR
    450

    SPEAKER IMPEDANCE
    4Ω minimum

    INPUT SENSITIVITY
    Line Level Inputs (RCA): 1.5V
    Line Level Inputs (XLR): 2.5V

    INPUT IMPEDANCE
    Line Level Inputs (RCA): 12kΩ
    Line Level Inputs (XLR): 100kΩ
