Rotel C8+ - 8 Channel Power Amplifier
Taxes & Shipping Included

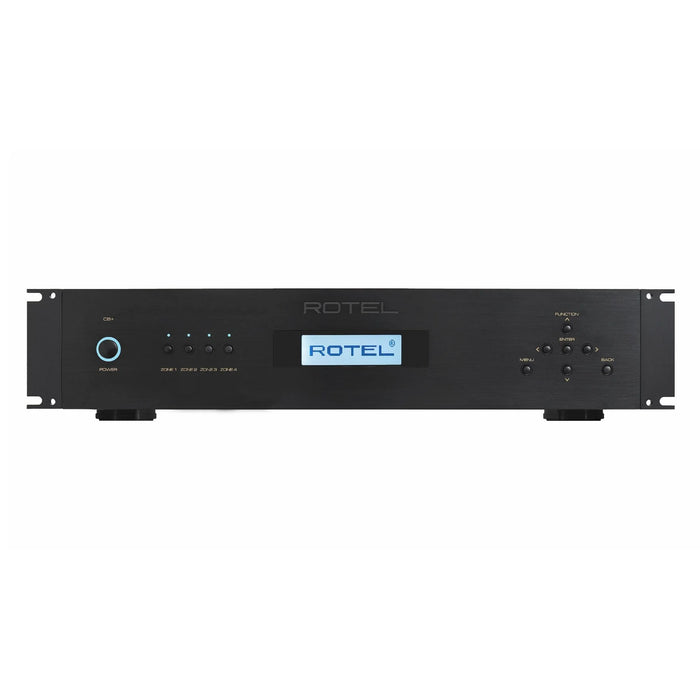

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads. The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.

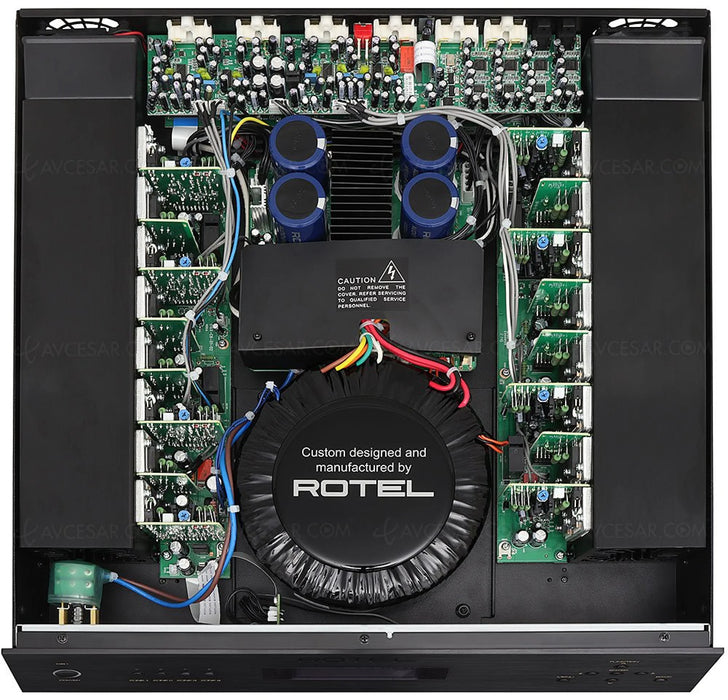

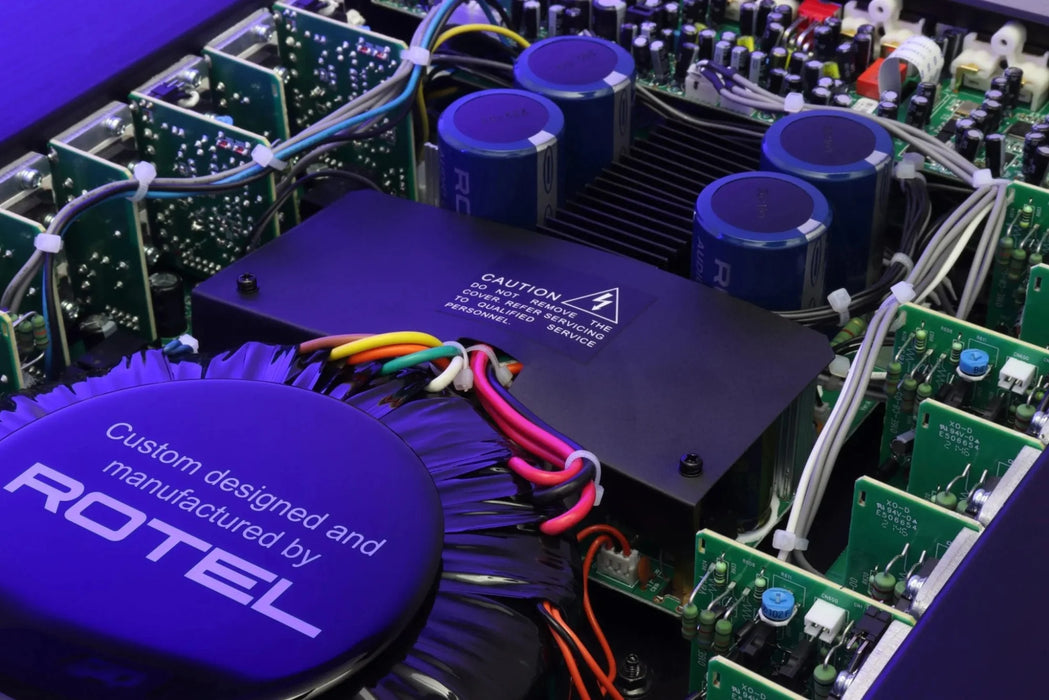

The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.
For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings.

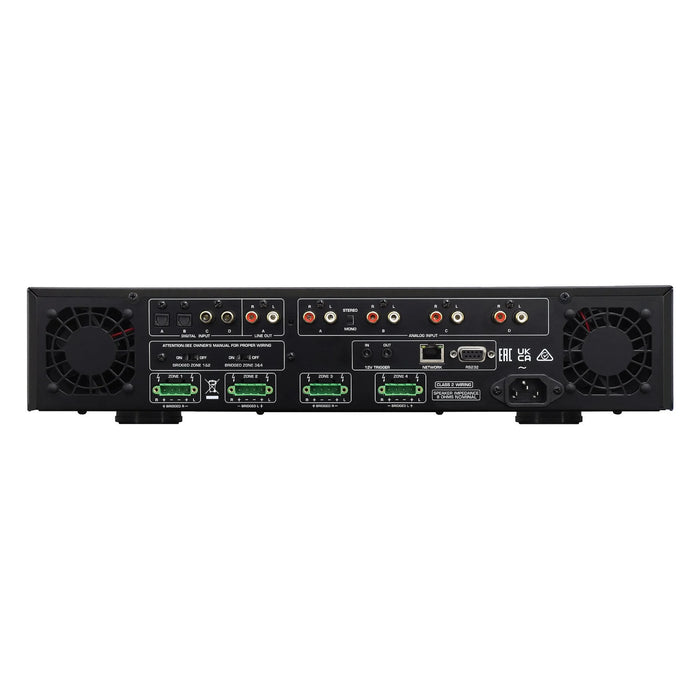

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.
The custom 2U height requires no top or bottom clearance when rack mounting.
The C8 is available in black only.
Features
- 8 x 150 Watts of robust class AB power, 4 Ohms
- Class AB amplifier design
- 4 individual 24-bit/192kHz Digital to Analogue Converters
- Custom engineered toroidal transformer
- 12 volt trigger input
- Rack ears included
Specifications
- MAXIMUM POWER OUTPUT 150W/Ch (8 channels driven, 4Ω)
- CONTINUOUS POWER OUTPUT 100W/Ch (8 channels driven, 8Ω)
- TOTAL HARMONIC DISTORTION (THD) <0.1%
- FREQUENCY RESPONSE Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB, Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB
- S/N RATIO (IHF "A" Weighted) Line Level Inputs: 100dB, Digital Inputs: 102dB
- DIMENSIONS (W × H × D) 430 × 97 × 414mm, 17" × 3.9" × 16.3"
- FRONT PANEL HEIGHT 2U / 88.1mm (3.5")
- POWER REQUIREMENTS 220V, 50Hz
- POWER CONSUMPTION 980W
- STANDBY POWER CONSUMPTION Normal: <0.5W, Network Standby: <2W
- NET WEIGHT 18.35kg (40.79lbs.)
- BTU RATING (4Ω, 1/8th power), 2744 BTU/h
- INTERMODULATION DISTORTION (60Hz:7kHz, 4:1) <0.1%
- DAMPING FACTOR (20Hz - 20kHz, 8Ω) 80
- TONE CONTROLS ± 10dB at 100Hz / 10kHz
- CROSSTALK / SEPARATION >50dB
- INPUT SENSITIVITY Line Level Inputs: 0.3V, Digital Inputs: -13.5dBfs
- INPUT IMPEDANCE Line Level Inputs: 31kΩ, Digital Inputs: 75Ω
- INPUT OVERLOAD Line Level Inputs (RCA): 2.8V
-
DIGITAL TO ANALOG CONVERTERS Texas Instruments
-
OPTICAL DIGITAL SIGNALS SPDIF LPCM (up to 192kHz/24-bit)
About Rotel
For over six decades Rotel has been engineering, manufacturing, and delivering audio products built to the highest standards of quality, with extraordinary performance and exceptional value. This Japanese family owned, and family operated business leverages the tradition and heritage of this 60-Year old icon brand supported by innovation and passion delivering products proud to wear the Rotel badge building our ever-growing extended Rotel family of customers including audiophiles, music lovers, musicians, recording artists and loyal fans.
