Rotel A12 MKII - Integrated Amplifier with Bluetooth & DAC

by Rotel
Original price ₹ 133,900 - Original price ₹ 133,900
Original price ₹ 133,900
₹ 133,900
₹ 133,900 - ₹ 133,900
Current price ₹ 133,900

The Rotel A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.

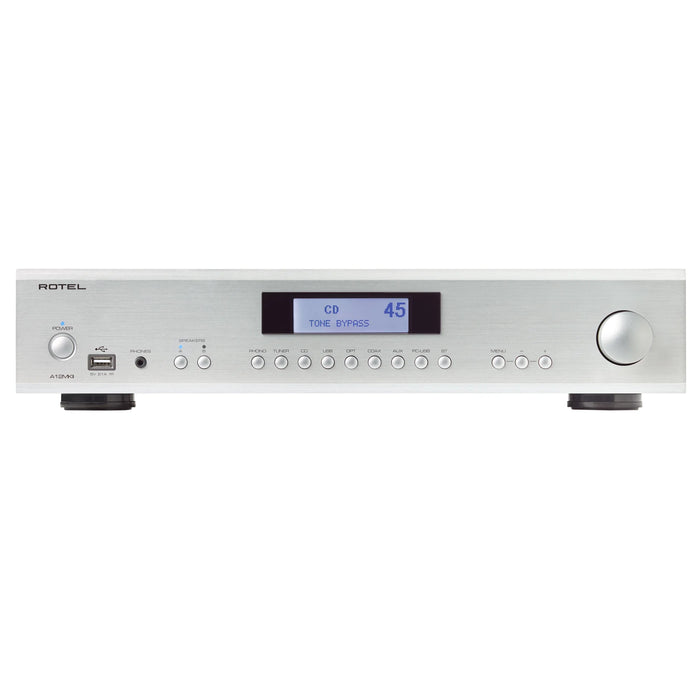

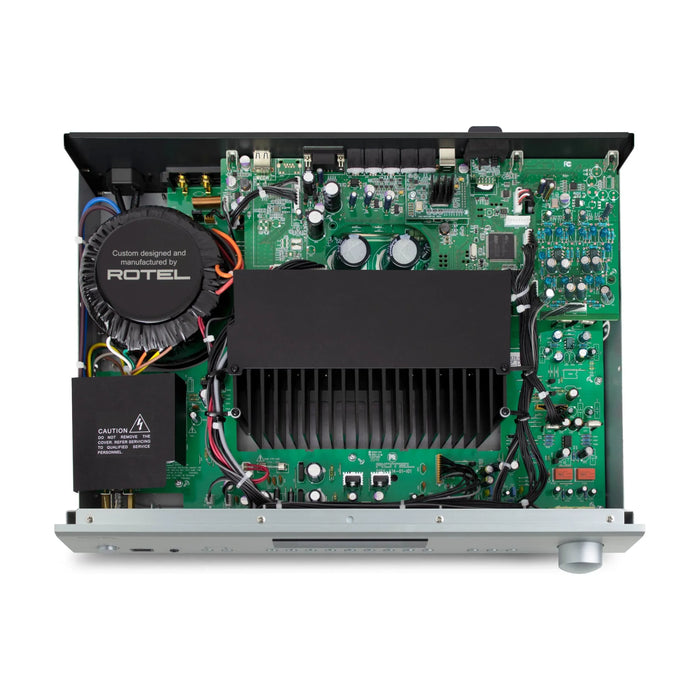

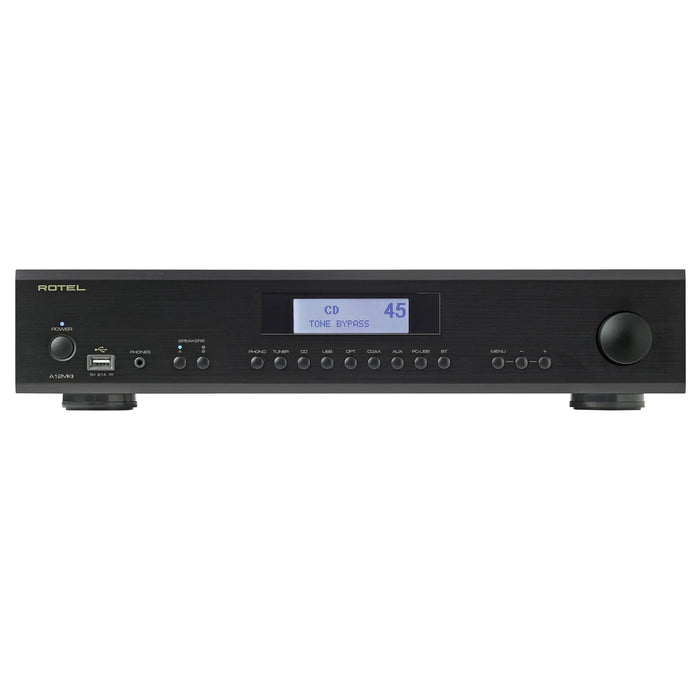

The A12MKII Integrated Amplifier measures only a slim 80 mm (3 inches) tall but stands well above its sleek design profile in performance and feature set for all music lovers. The heart of the A12MKII begins with Rotel’s in-house manufactured oversized toroidal transformer feeding high efficiency storage and smoothing capacitors for deep, controlled bass energy.

The power supply features multiple voltage and current regulators delivering independent power to critical analog, digital and amplification stage circuits isolating sensitive low voltage signals from high power speaker outputs lowering the noise floor and reducing unwanted distortion. Circuit design follows Rotel’s proprietary Balanced Design Concept with physical and electrical isolation techniques delivering exceptionally clean audio.

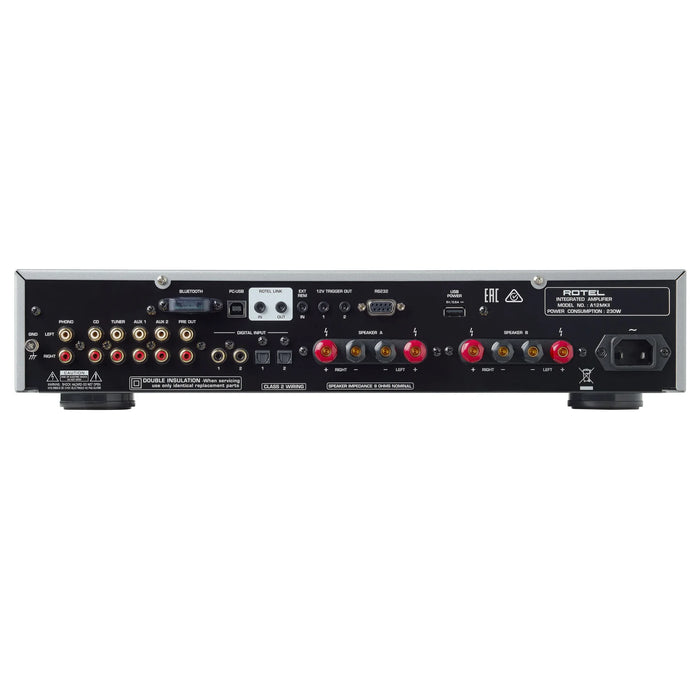

The A12MKII is replete with inputs supporting your favorite sources including a Moving Magnet Phono Stage for vinyl fans, 4 RCA analog, 4 digital, PC-USB and high quality aptXTM Bluetooth for wireless streaming. A premium 32-bit Texas Instruments Digital to Analog converter extracts genuine and accurate details of the music with custom output filters and preamplifier circuits preserving the integrity of the audio stream.

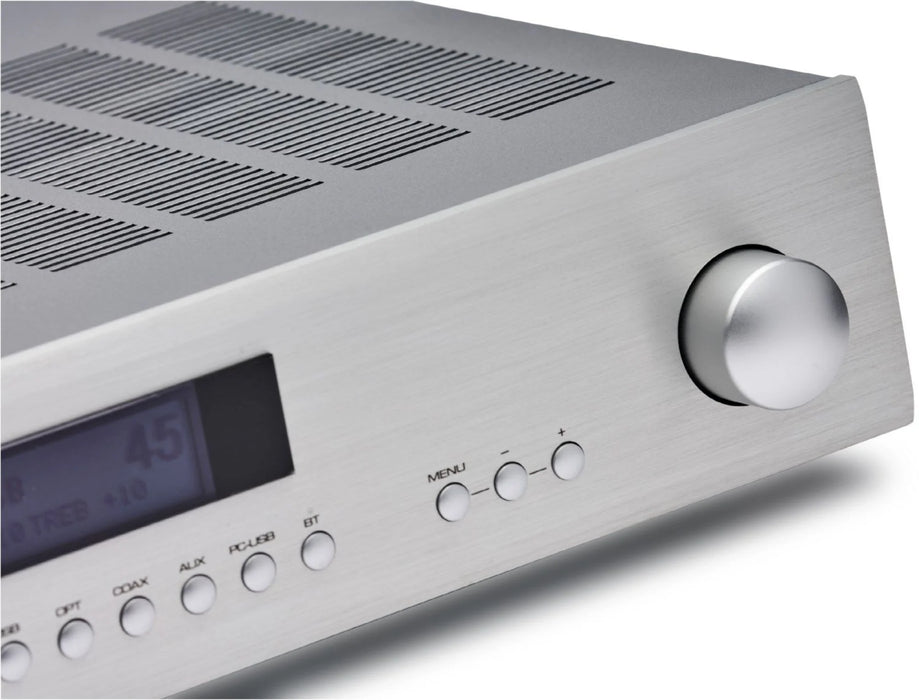

The Class AB amplifier delivers 60 Watts of dynamic power into 8 ohms utilizing high current, fast transient output devices for improved accuracy of the music timing and a more lifelike reproduction of audio into dual A-B speaker binding posts. The IR remote, front panel controls, and graphic display ensure effortless operation. RS232, 12V triggers and remote input ensure seamless integration with control systems. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Features
  • 2 x 60 Watts of robust Class AB power
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Wireless aptXTM Bluetooth
  • Moving Magnet Phono Input for Turntable connection

Specifications
MAXIMUM POWER OUTPUT
120W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
60W/Ch (8Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.018%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
Digital Inputs: 10Hz - 90kHz, 0±2dB
Phono Input: 20Hz - 20kHz, 0±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
230W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
8.76kg (19.31lbs.)

BTU RATING (4Ω, 1/8th power)
632 BTU/h

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
220

INPUT SENSITIVITY
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV

INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV

PREOUT LEVEL
1.2V

OUTPUT IMPEDANCE
470Ω

TONE CONTROLS
±10dB at 100Hz / 10kHz

DIGITAL INPUT
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
Roon Tested
