Rotel A11 MKII - Integrated Amplifier with Bluetooth & DAC - The Audio Co.

Rotel A11 MKII - Integrated Amplifier with Bluetooth & DAC

by Rotel
₹ 95,900 - ₹ 95,900
₹ 95,900
₹ 95,900
₹ 95,900 - ₹ 95,900
₹ 95,900

Taxes & Shipping Included

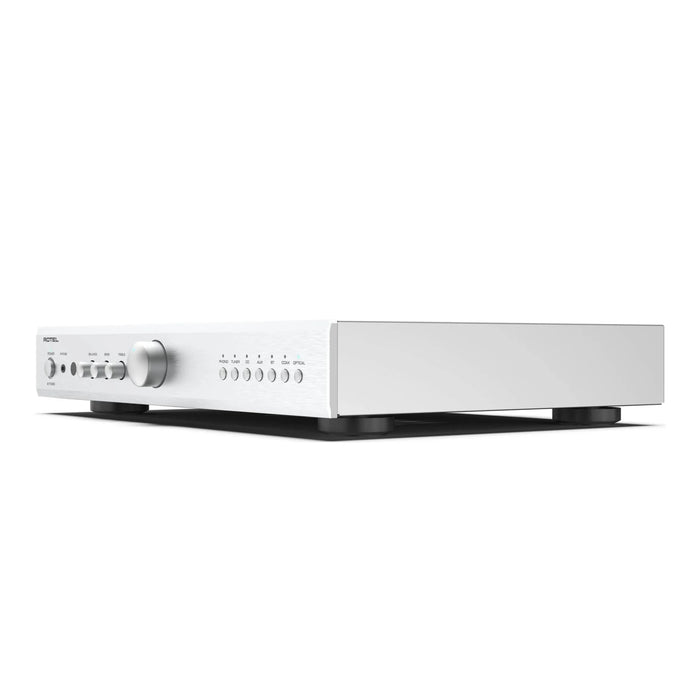

Color: Silver

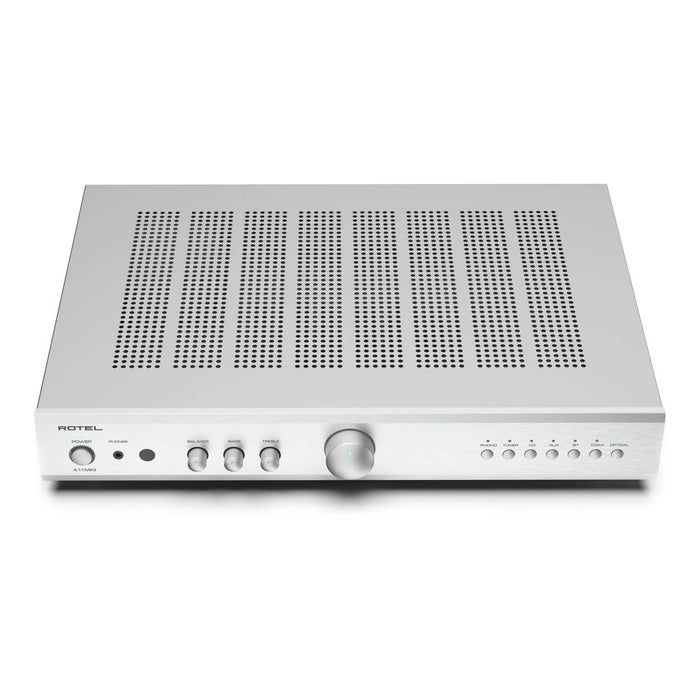

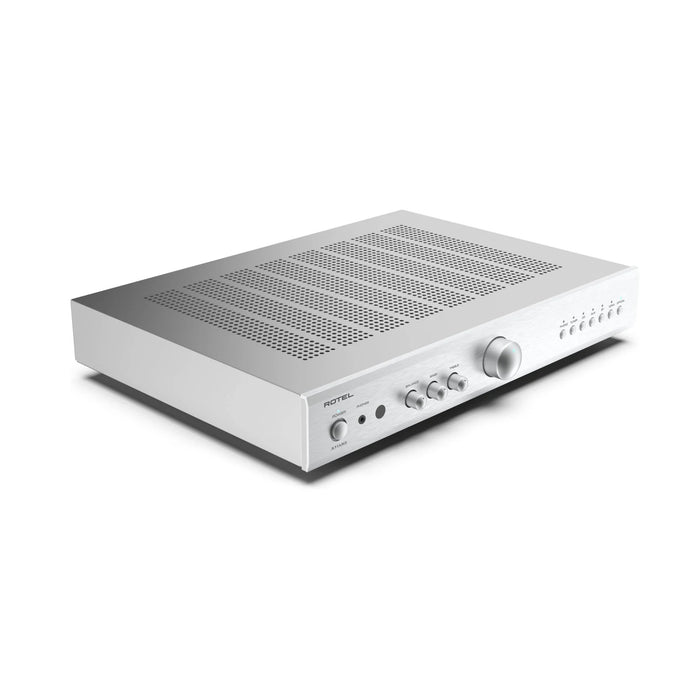

The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience. Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital and Moving Magnet Phono stage inputs.

The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

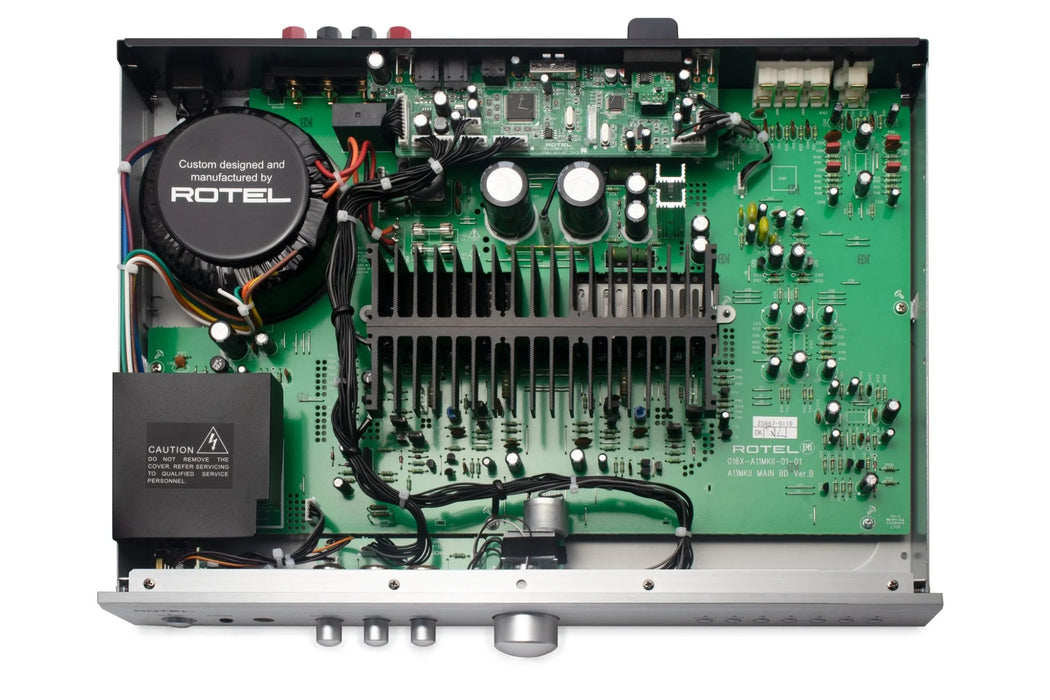

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

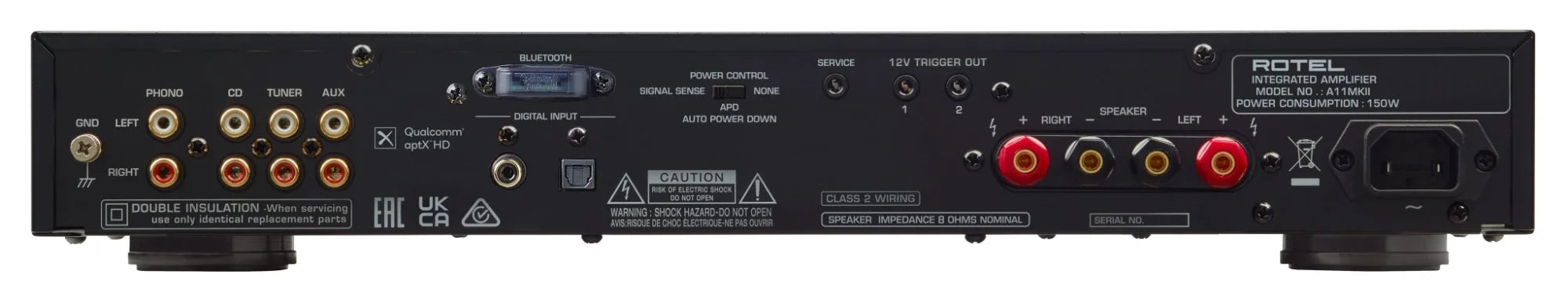

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

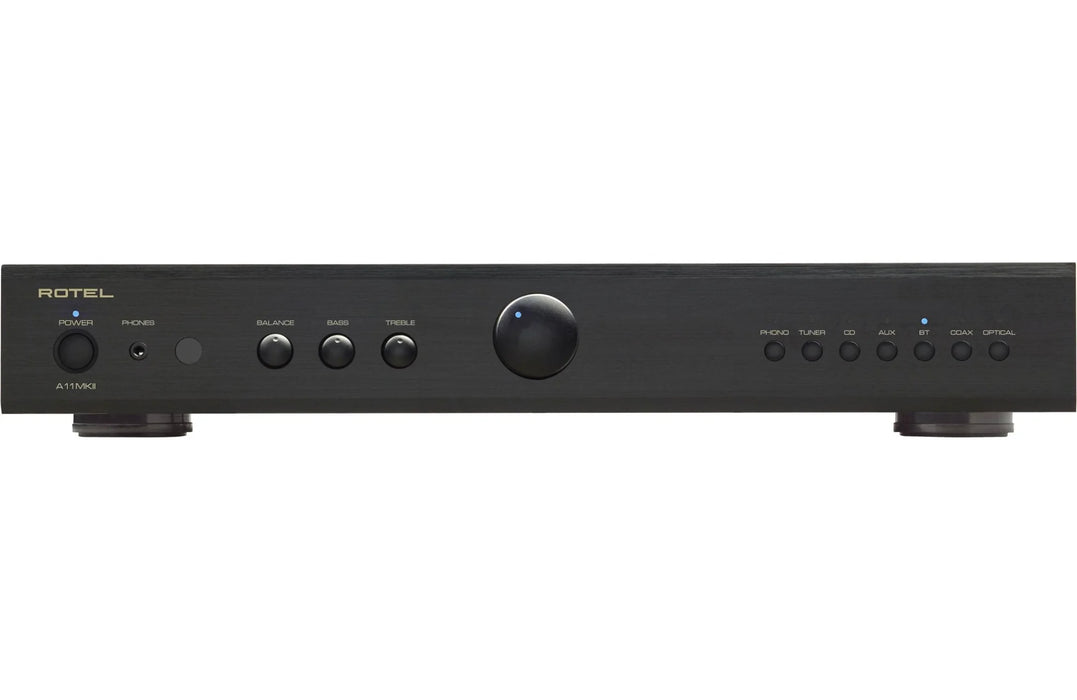

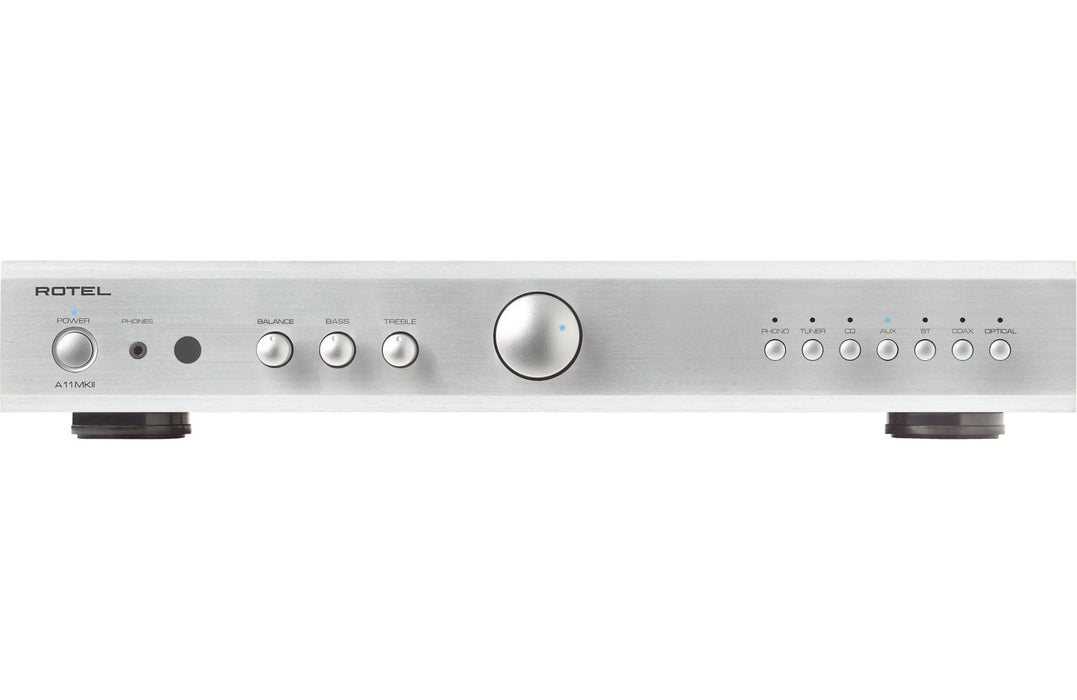

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.

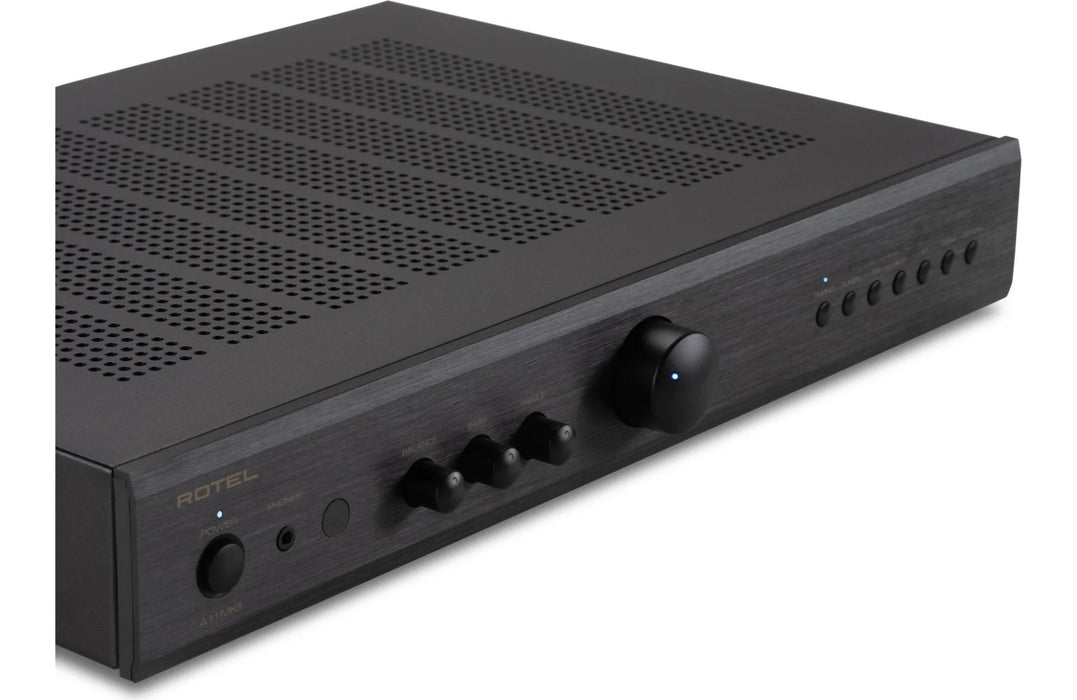

The A11MKII is available in both black and silver colors.

Features

  • 50 watts x 2 channels into 8 ohms at 0.03% THD
  • Class AB amplification with custom-designed toroidal transformer
  • wireless Bluetooth with high-quality aptX HD and AAC coding
  • frequency response: 10-100,000 Hz (line inputs, -0.5dB/+0.05dB); 20-20,000 Hz (phono input, -0.5dB/+0.3dB)
  • signal-to-noise ratio: 90 dB (line); 85 dB (phono)
  • front-panel volume, balance, and tone controls
  • detachable power cord
  • remote control

Specifications

POWER OUTPUT
50W/Ch (8Ω)
62W/Ch (4Ω)

TOTAL HARMONIC DISTORTION
(THD)
<0.03%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB

DIMENSIONS (W × H × D)
430 × 73 × 347mm
17" × 2-7/8" × 13-5/8"

FRONT PANEL HEIGHT
60 mm (2 3/8”)

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
150W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
6.8kg (15lbs.)

BTU RATING (4Ω, 1/8th power)
450 BTU/h
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
120

INPUT SENSITIVITY
Line Level Inputs: 130mV
Phono Input (MM): 1.6mV

INPUT IMPEDANCE
Line Level Inputs: 45kΩ
Phono Input (MM): 43kΩ

INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV

TONE CONTROLS
±6dB at 100Hz / 10kHz

Support

About Rotel

For over six decades Rotel has been engineering, manufacturing, and delivering audio products built to the highest standards of quality, with extraordinary performance and exceptional value.  This Japanese family owned, and family operated business leverages the tradition and heritage of this 60-Year old icon brand supported by innovation and passion delivering products proud to wear the Rotel badge building our ever-growing extended Rotel family of customers including audiophiles, music lovers, musicians, recording artists and loyal fans.
