Rotel A10 MKII - Integrated Amplifier - The Audio Co.

Rotel A10 MKII - Integrated Amplifier

by Rotel
₹ 72,900 - ₹ 72,900
₹ 72,900
₹ 72,900
₹ 72,900 - ₹ 72,900
₹ 72,900

Taxes & Shipping Included

Color: Silver

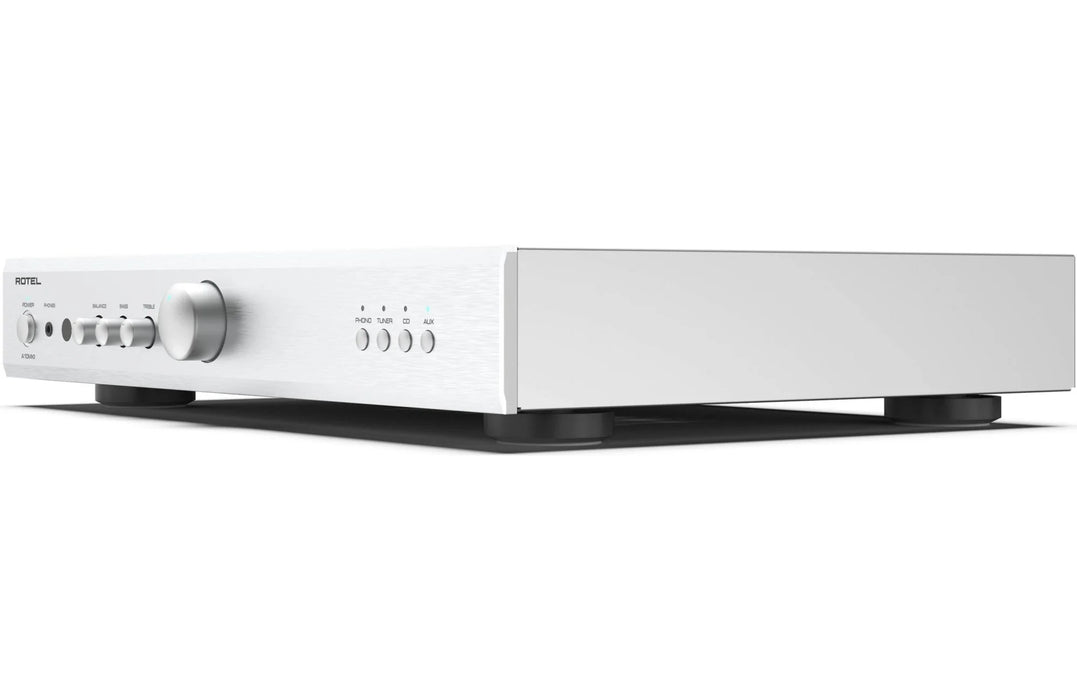

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

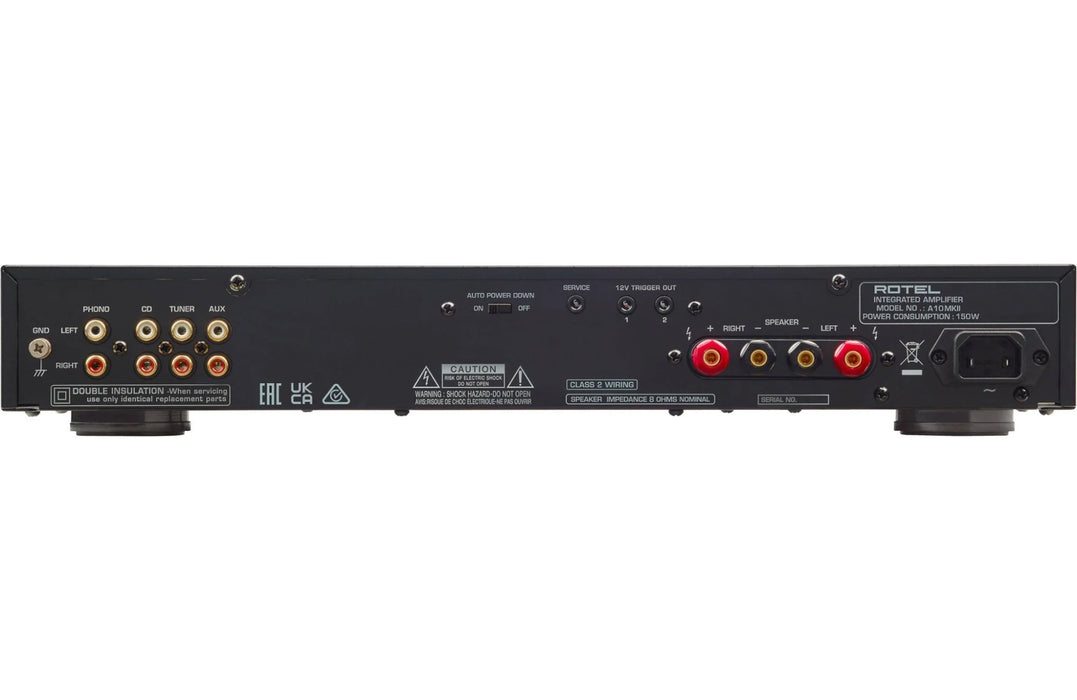

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

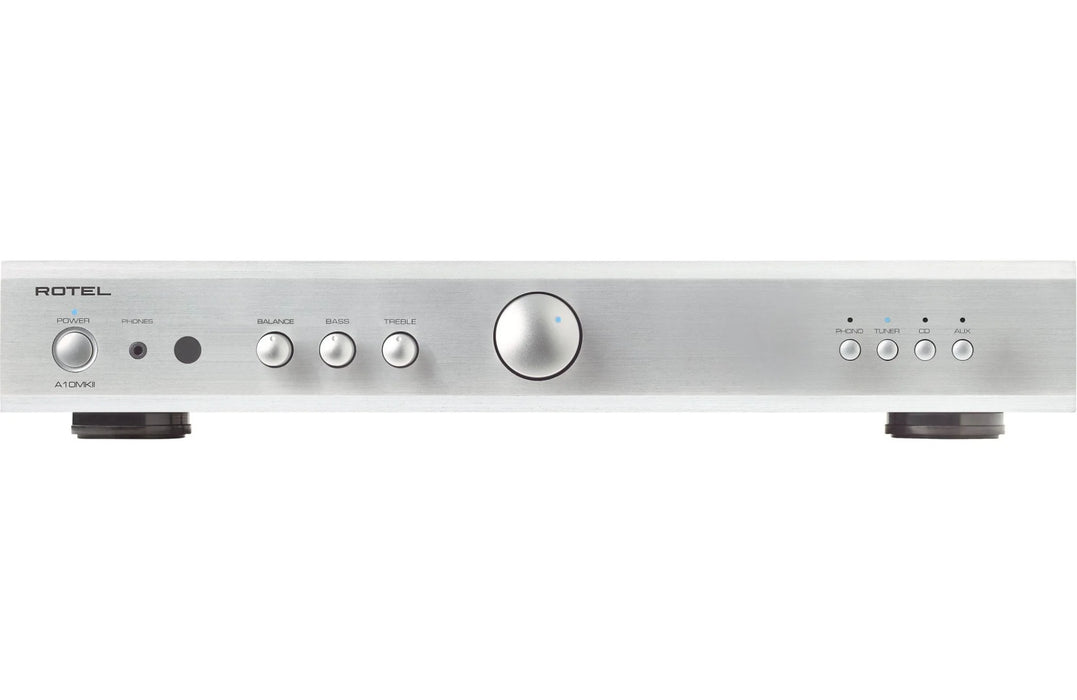

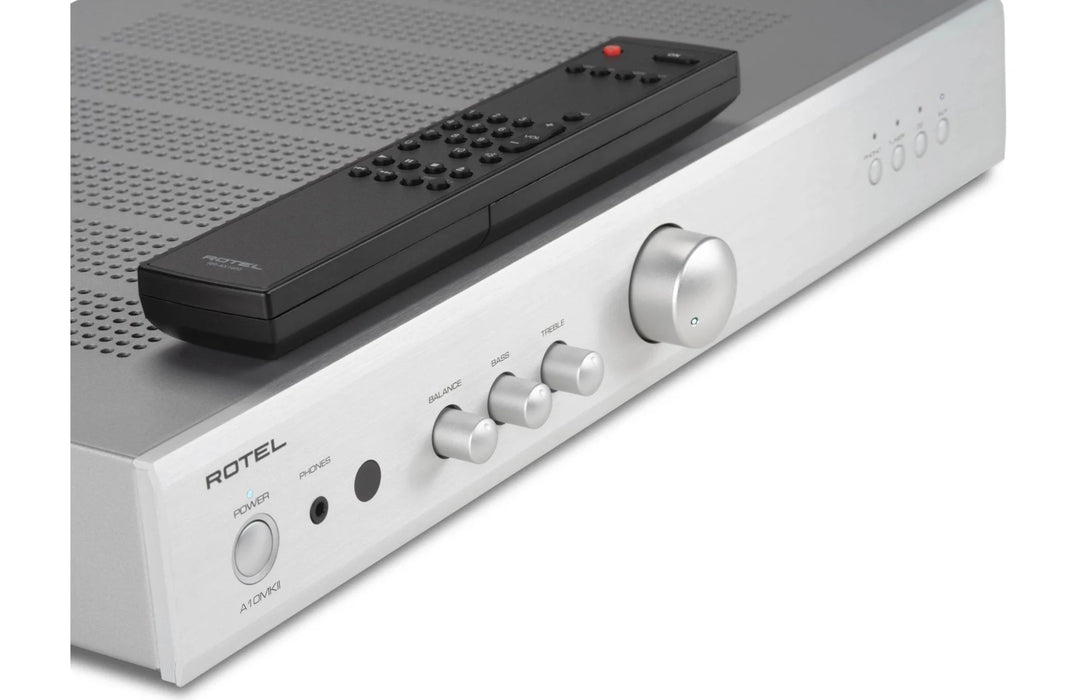

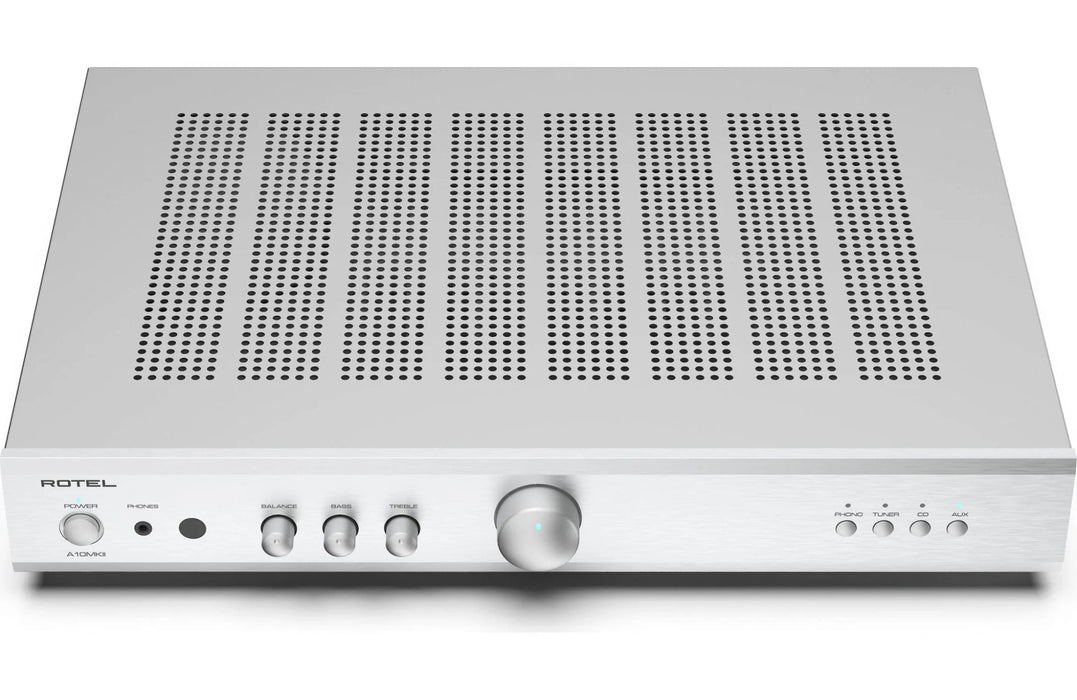

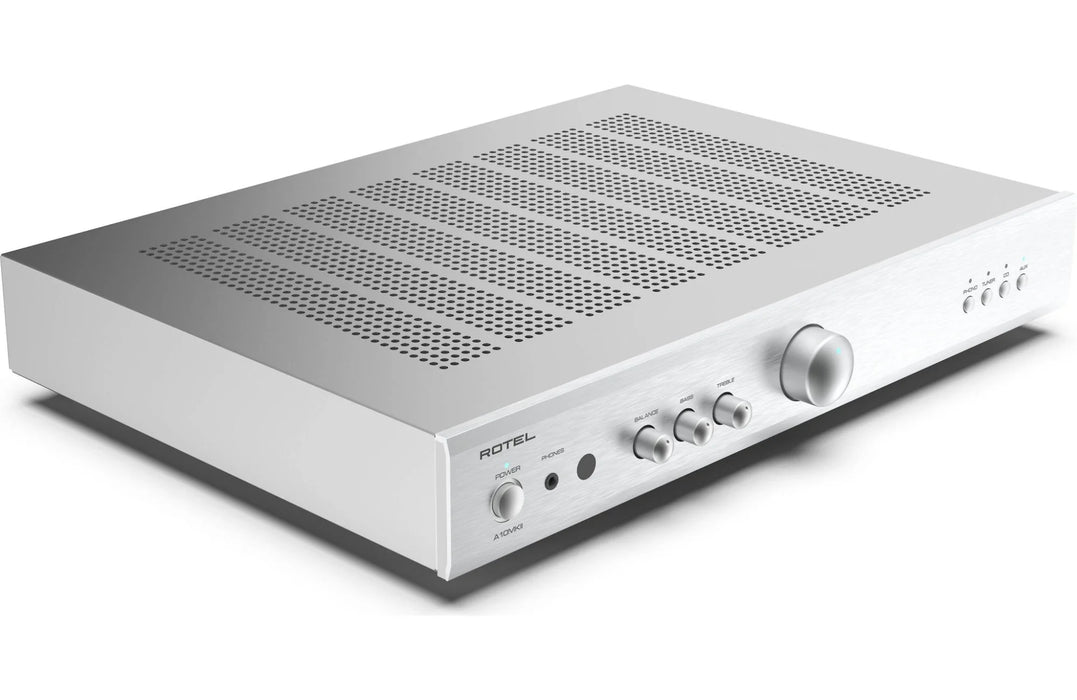

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

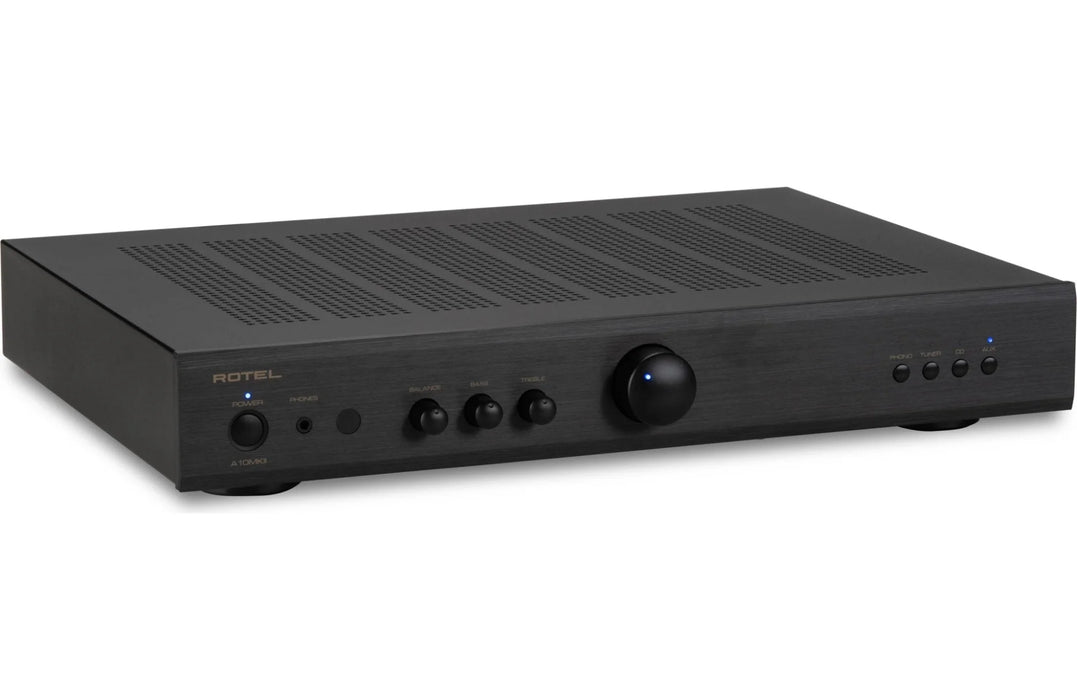

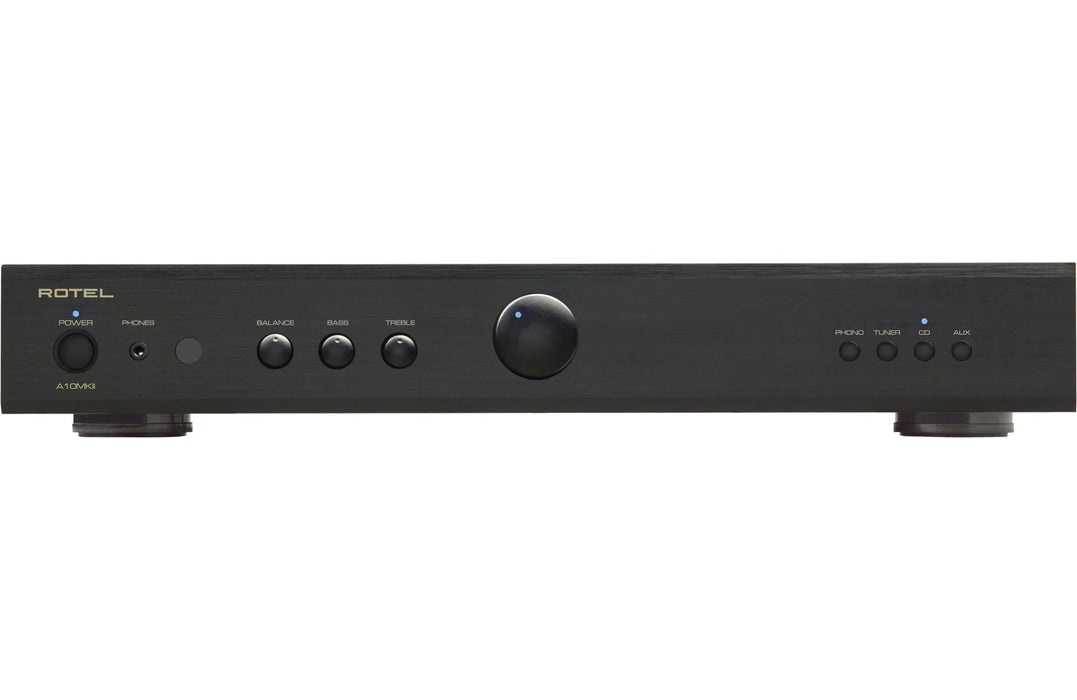

The A10MKII is available in both black and silver colors.

Features

  • 50 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.03% THD
  • Class AB amplification with custom-designed toroidal transformer
  • frequency response: 10-100,000 Hz (line inputs, -0.5dB/+0.05dB); 20-20,000 Hz (phono input, -0.5/+0.3dB)
  • signal-to-noise ratio: 90 dB (line); 85 dB (phono)
  • front-panel volume, balance, and tone controls
  • detachable power cord
  • remote control

Specifications

POWER OUTPUT
50W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
(THD)
<0.03%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB

DIMENSIONS (W × H × D)
430 × 73 × 347mm
17" × 2-7/8" × 13-5/8"

FRONT PANEL HEIGHT
60 mm (2 3/8”)

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
150W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
6.6kg (14.5lbs.)

BTU RATING (4Ω, 1/8th power)
450 BTU/h
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
120

INPUT SENSITIVITY
Line Level Inputs: 120mV
Phono Input (MM): 1.5mV

INPUT IMPEDANCE
Line Level Inputs: 45kΩ
Phono Input (MM): 43kΩ

INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV

TONE CONTROLS
±6dB at 100Hz / 10kHz

Support

About Rotel

For over six decades Rotel has been engineering, manufacturing, and delivering audio products built to the highest standards of quality, with extraordinary performance and exceptional value.  This Japanese family owned, and family operated business leverages the tradition and heritage of this 60-Year old icon brand supported by innovation and passion delivering products proud to wear the Rotel badge building our ever-growing extended Rotel family of customers including audiophiles, music lovers, musicians, recording artists and loyal fans.
