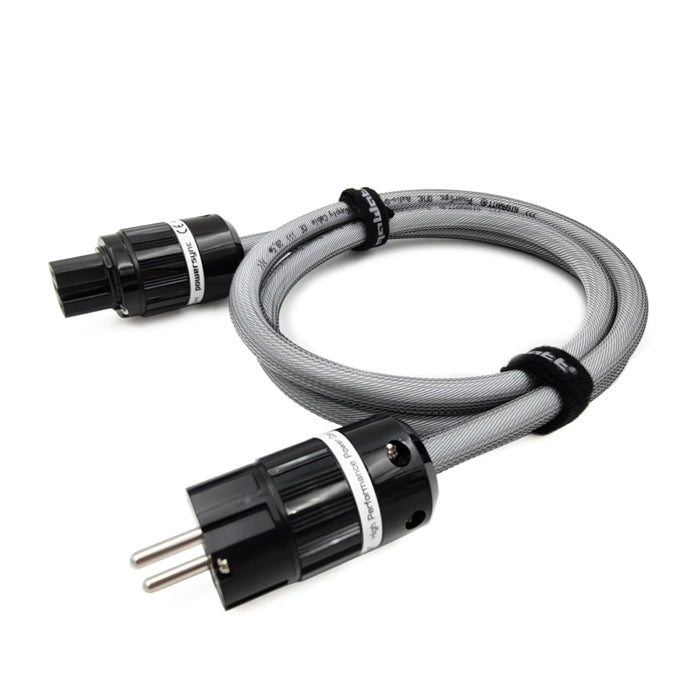

GigaWatt PowerSync Audiophile AC Power Cable
Taxes & Shipping Included
PowerSync is the introductory model of the GigaWatt family of power cords, following the highly acclaimed PowerSync ULTRA (formerly known as LC-3EVO). While it is their most budget-friendly product, no compromises were made during its creation. The GigaWatt PowerSync cable is capable of delivering clean, stable power to the most demanding electronic equipment so they can perform at their maximum potential. It therefore constitutes an essential element in any hi-fi or home cinema installation.
The GigaWatt PowerSync power cable is designed to deliver clean, stable current to all audio and video electronics. This GigaWatt PowerSync cable uses heavy-gauge copper conductors to maximize current capacity and limit disturbances. This allows you to reduce the noise level and obtain optimal operating conditions for your devices.
5N OFC copper
The GigaWatt PowerSync power cable is precisely developed to maximize the transfer of electrical current. It notably uses OFC 5N copper conductors. This is selected for its 99.999% purity, making it possible to limit the interaction between the grains. This copper is used in 3 14 AWG conductors made from 10 strands with a diameter of 0.514 mm. Thanks to the use of large diameter conductors, the GigaWatt PowerSync cable is capable of providing very high current and can therefore be used with any audio or video device, even the most demanding such as power amplifiers or subwoofers.
Strong Isolation
The quality of a power supply also depends on the purity of the current. To prevent interference, the GigaWatt PowerSync cable effectively isolates the conductors. The latter are first placed in a polyethylene dielectric sheath. This is coupled to a static screen made of an aluminum sheet laminated with plastic. This film covers the entire cable to ensure optimal protection against surrounding electromagnetic and radio radiation (RFI & EMI). The GigaWatt PowerSync cable also benefits from an additional drainage wire under the screen and external insulation in GA 70AT03 material, further surrounded by a nylon mesh braid.
Cold Crimping
At its ends, the GigaWatt PowerSync cable adopts a Schuko type power connector on one side and a three-pole IEC-C15 connector on the other. The conductors are mechanically connected to these plugs, thus avoiding any soldering. This design ensures optimal contact and better conductivity. In addition, it preserves the molecular structure of the conductors and does not modify their impedance. Any risk of distortion is thus eliminated.
The conductors are made from OFHC C10100 copper, with 5N purity, additionally annealed, to get a homogeneous structure and better conductivity. The cable consists of three wires with a 14 AWG cross-section, insulated with PE dielectric. A single wire contains 10 strands with a diameter of 0.514mm.
The conductors are protected with a static shield made of plastic laminated aluminum foil. The tight construction of the screen, covering 100% of the cable surface, perfectly protects against unwanted external EMI and RFI noise, and prevents the formation and propagation of internal interference. There is an additional drain wire under the screen.
The conductors are covered by an outer insulation of GA 70AT03 material, further surrounded by a nylon mesh braid. All conductors are connected to the plug terminals mechanically, without soldering, which guarantees reliability and optimal performance.
PowerSync is an essential accessory for the PF-1e, PF-1EVO and PF-2EVO power strips.
The cable is equipped with high quality proprietary plugs-GigaWatt G-010 and G-030 (choice of IEC C15, IEC C19, SCHUKO, NEMA 5-20R, AS/NZS 3112).
Features
- Premium AC Power Cable with IEC C15 and Schuko Connectors
- 14 AWG cross-section made from OFHC C10100 copper, with 5N purity
- Copper conductors
- Strong insulation
- High current capacity
- Cold crimping
- Proprietary GigaWatt G-010 and G-030 plugs
- Made in Poland
Specifications
- Available plug types EU (Schuko), US (Nema 5-20R), AU (AS/NZS 3112), IEC C15
- Line voltage 240 VAC / 50-60 Hz
- Maximum load (continuous) 16 A
- Net weight 0.42kg
- Gross weight 0.53 kg
- Outer diameter Ø 11mm
- Lengths 1.5 m standard,1m/2m/2.5m/3m or more by request
About Gigawatt
Enhance your audio and video experience with GigaWatt's high-quality power accessories. Founded in Poland in 2007 by an electronics engineer and audio enthusiast, GigaWatt offers competitively-priced products designed to protect your devices from power noise and surges while delivering impressive sound and picture quality. While there are many power filtering and distribution products, Gigawatt is considered the gold standard when it comes to delivering audiophile sound with top tier protection.
