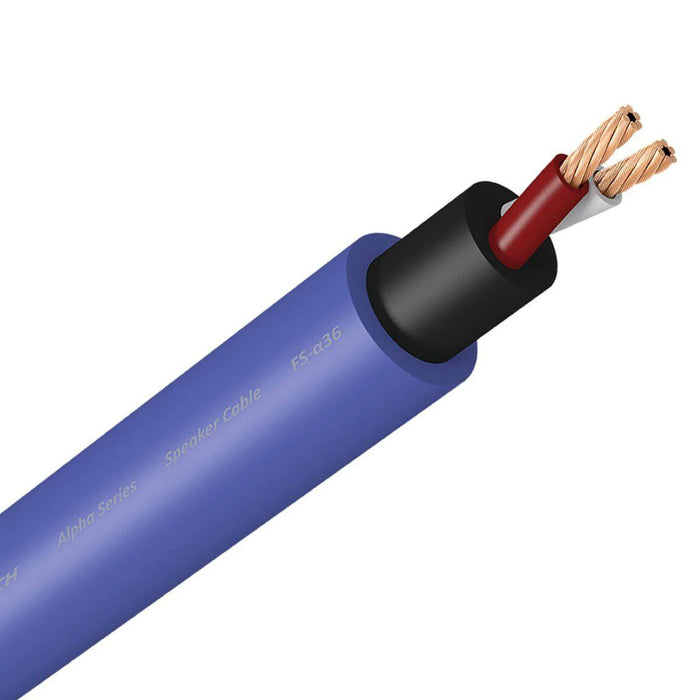

12AWG α(Alpha) OCC Conductor Solid Core Speaker cable (2 x 3.05 sq mm)

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

SPECIFICATIONS

・Conductor Material: α(Alpha) OCC
・Construction（pcs／mm): 20pcs / ψ0.18 mm X 6+ψ0.9mm Incorporating damping carbon particles in center filler core
・Insulation Material: Audio grade PE (Red,White)
・Nom. Thickness: 1.25mm
・Diameter: 5.1mm
・Twisting Method: 2 Cores Twisted Together
・Inner Sheath Material: Audio grade flexible PVC (Black) Incorporating damping carbon particles
・Sheath Material: Audio grade Flexible PVC (Purple Blue)
・Nom. Thickness: 1.0 mm
・Overall Diameter Approx.: 13.0mm
Max. Conductor Resistance: Ω／km 5.3 (JISC3005 6 20℃)
・Min. Insulation Resistance: MΩ‧km >100 (JISC3005 9.1 20℃)
・CAPACITANCE: PF/M 41.7 at 1KHz
・INDUCTANCE: uH/M 1.4 at 1KHz
・Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)
・Made in Japan

Note: Price Per Meter, Without Termination
