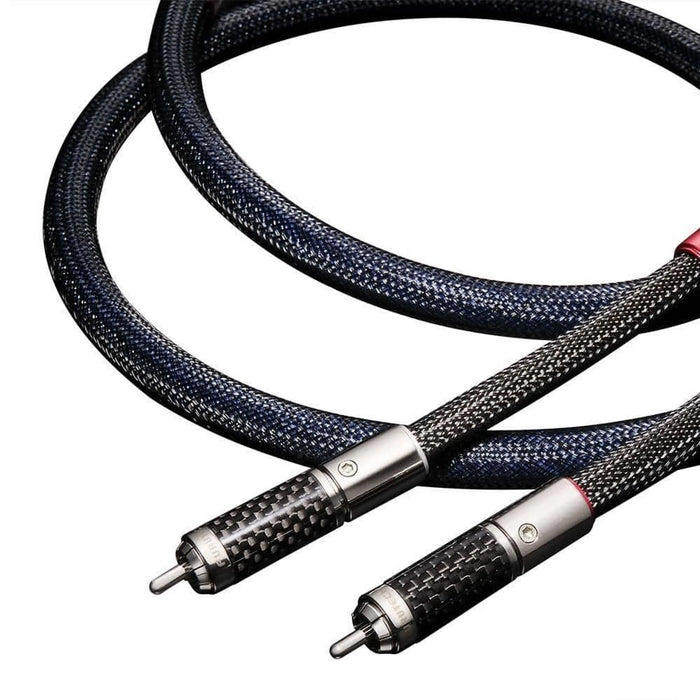

Furutech Digiflux RCA - Audiophile Digital Coaxial Cable

High End Performance
Hyper Coaxial Digital Interconnect Cable

Furutech’s Award-Winning Pure Transmission Build Quality

The sense of mechanical integrity of the Digiflux Hyper balanced Interconnect cable’s build is immediately apparent. Furutech Pure Transmission technology turns a macro lens on every element of power and signal transfer applying optimized engineering solutions to well-known problems such as contact resistance, grounding, EMI and RFI rejection, and using the best materials and processes available.

FEATURES

• α (Alpha) OCC Conductor strand wires
• Double-layer shield construction for improved noise insulation
• Triple-layer Insulation: Special grade polyethylene skin and air foam polyethylene plus a final layer of high density polyethylene skin
• Connectors: Furutech-engineered nonmagnetic rhodium-plated α (Alpha) OCC conductor Carbon fiber finished CF-102(R) RCA connectors
• The best damping and insulation materials for improved frequency extension and tonal balance
• Four layered jacket construction for improved damping.
• Carefully engineered cable clamp improves grip and reduces mechanical and electrically-induced distortion
• Dimensions: Cable diameter approx. 12.8mm • Overall length: 1.2M/set
• Made in Japan

SPECIFICATIONS

• α (Alpha) -OCC Conductor ・37-strand 1.15mm diameter wires
• Insulation-1: Special grade Polypropylene Skin, 1.18mm diameter
• Insulation-2: Special grade air-foam Polypropylene, 5.45mm diameter
• Insulation-3: Special grade high-density Polypropylene Skin, 5.5mm diameter
• Shield-1: 0.118 mm braided α (Alpha) Conductor wires braided(85% up)
• Sheath: RoHS Compliant Flexible PVC (Blue) approx. 8.0mm diameter
• Shield-2: Special grade Rip stop taffeta RFI/EMI shield tape wrap (100%)
• Jacket: RoHS Compliant braided Nylon 4 layers, approx. 12.8mm
• Cable type: Hyper Coaxial Type
• Characteristic Impedance: 75 ± 3 Ω
• Made in Japan
• 1.2m length
