Furutech Digi Reference III XLR Audiophile AES/EBU Digital Cable - Cable

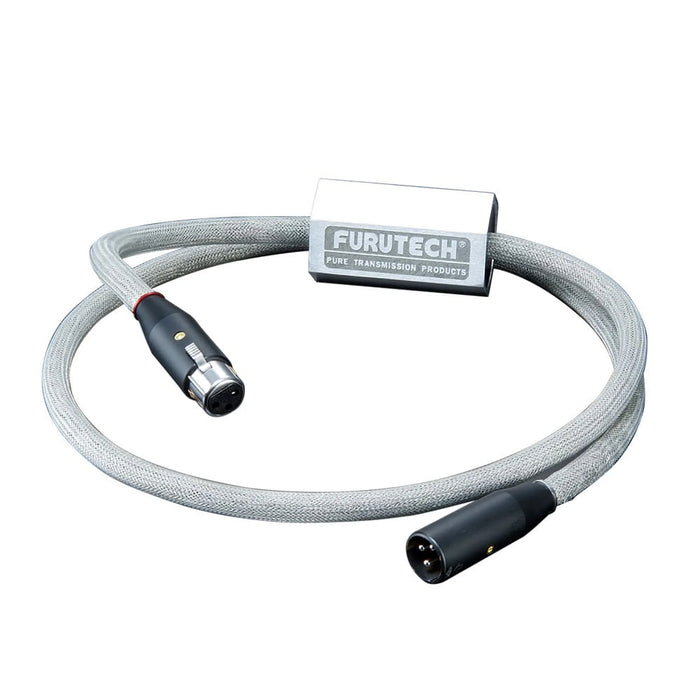

Furutech Digi Reference III XLR Audiophile AES/EBU Digital Cable

by Furutech
₹ 127,090 - ₹ 127,090
₹ 127,090
₹ 127,090
₹ 127,090 - ₹ 127,090
₹ 127,090

Taxes & Shipping Included

The Furutech Digi Reference III XLR top of the line AES/EBU digital interconnect cable utilizes double-shielded α (Alpha)-OCC conductors and Formula GC-303 antimagnetic EMI-absorbent modules to provide exceptional build quality and enhance resolution, dynamics, and the overall performance of your components. All connectors are made with rhodium-plated for superior signal transfer.

Features

  • Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise
  • Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
  • High performance beautifully engineered XLR connectors [FP-601M (R)] and [FP-602F (R)] transfer signal without reflections for extremely low jitter performance
  • Pins high-contact luxuriously-finished nonmagnetic rhodium-plated phosphor bronze for stable Furutech Pure Transmission signal
  • Additionally shielded with special fiberglass and 0.12 mm α (Alpha) conductor braid
  • Insulated with air-foamed HDPE reducing capacitance and damping vibration
  • Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region”glare.
  • GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range, better defining the original recording's venue. Natural, unforced detail reveals nuance and energy for an engaging musical experience.
  • α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutech’s α (Alpha) Cryogenic and Demagnetizing Process
  • Made in Japan

    Specifications

    • 30-strand α (Alpha)-OCC Conductor ・ 0.18mm , 1.14mm diameter
    • Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter
    • Cable Lay: Two twisted cores with cotton yarn
    • Cable Wrap: Non-woven fabric wrap approx. 5.8mm diameter
    • Shield-1: 0.12mm braided α (Alpha) Conductor braid density: 80％ UP x 6.3mm diameter
    • Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter
    • Shield-2: Special fiberglass and copper wire stranded braid
    • Jacket: Nylon yarn braid approx. 10.5mm diameter.
    • Shield-3: Special EMI and noise-absorbent Formula GC-303 module
    • Connectors: Male [FP-601 M (R)] and female [FP-602 F (R)]
    • Electrical Properties of Cable Test Method
    • Max. Conductor Resistance 26.4 Ω／km JISC3005 6 20℃
    • Min. Insulation Resistance 1000 MΩ-km JISC3005 9.1 20℃
    • Dielectric Strength AC. 500 V／1 min. JISC3005 8
    • Electrostatic Capacitance Approx 42 PF／m at 1 KHz
    • Characteristic Impedance Approx 120 Ω at 100 KHz
    • 1.2m length
