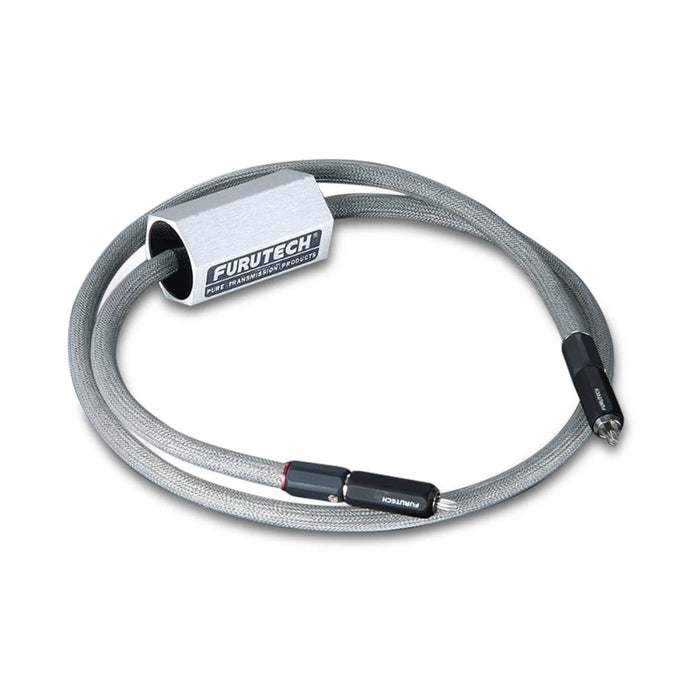

Furutech Digi Reference III RCA - Audiophile Digital Coaxial Cable

High End Performance
Coaxial Digital Interconnect Cable

Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.

FEATURES

• Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise
• Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
• High performance beautifully engineered rhodium-plated connectors [RCA FP-106 (R)] or BNC [FP-3-117 (R)] transfer signal without reflections for extremely low jitter performance
• Center filament pin [FP-106 (R)] a high-contact work of engineering art composed of nonmagnetic rhodium-plated phosphor bronze with Teflon dielectric
• RCA connector backbone composed of nonmagnetic rhodium-plated eutectic cast copper alloy with beautifully-finished nonmagnetic copper alloy outer locking shell
• BNC connectors [FP-3-117 (R)] characteristic impedance 75 ± 5Ω
• Additionally shielded with special fiberglass and 0.12 mm α (Alpha) conductor braid
• Insulated with air-foamed HDPE reducing capacitance and damping vibration
• Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region”glare.
• GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range, better defining the original recording's venue. Natural, unforced detail reveals nuance and energy for an engaging musical experience.
• α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutech’s α (Alpha) Cryogenic and Demagnetizing Process
• Made in Japan

SPECIFICATIONS

• Construction and Materials: 37-strand α (Alpha)-OCC Conductor, 0.16mm, 1.15mm diameter
• Insulation-1: HDPE 1.75mm diameter
• Insulation-2: Air-foamed PE, 5.5mm diameter
• Shield-1: 0.12mm braided α (Alpha) Conductor braid density: 80％ UP x 6.3mm diameter
• Sheath: Two layers flexible PVC (Aquamarine) 8mm diameter
• Shield-2: Special fiberglass and copper wire stranded braid
• Jacket: Nylon yarn braid approx. 10.5mm
• Shield-3: Special fiberglass and copper wire stranded braid
• Connectors: RCA [FP-106 (R)] or BNC [FP-3-117 (R)]
• Max. Conductor Resistance 25 Ω／km JISC3005 6 20℃
• Min. Insulation Resistance 1000 MΩ‧km JISC3005 9.1 20℃
• Dielectric Strength AC. 1000 V／1 min JISC3005 8
• Electrostatic Capacitance Approx 56 PF／m at 1 KHz
• Characteristic Impedance 75 ± 5 Ω at 10 MHz
• Made in Japan
• 1.2m length
