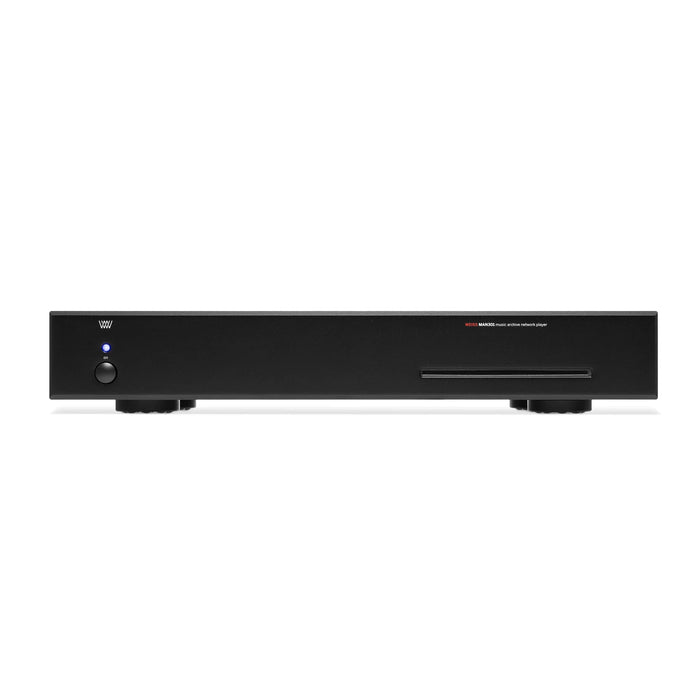

Weiss MAN301 Music Server and Streamer - Server / Silver - Streamer

Weiss MAN301 Music Server and Streamer

by Weiss
₹ 942,000 - ₹ 942,000
₹ 942,000
₹ 942,000
₹ 942,000 - ₹ 1,366,000
₹ 942,000
Variant: Server

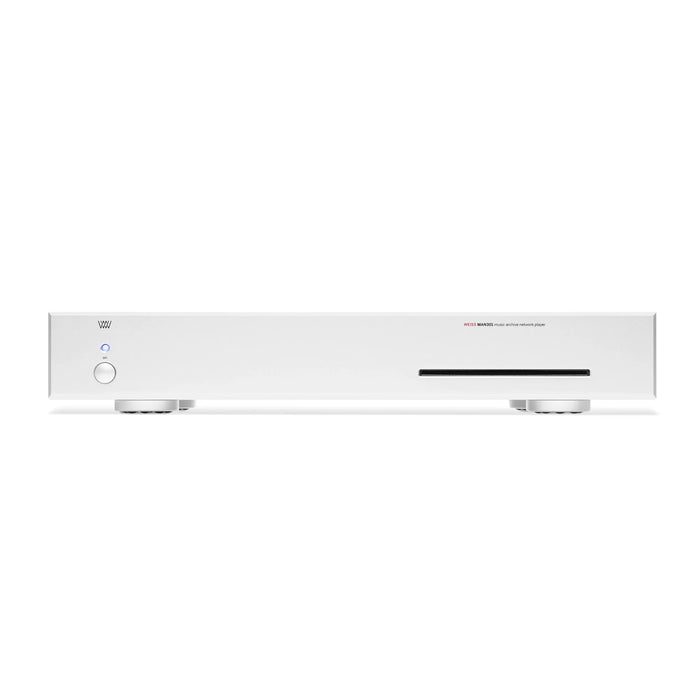

Color: Silver

All Your Music At Your Fingertips. iPad controlled and Music Archive Music Player, Streamer, CD Ripper, Preamp and more. The MAN301R provides a single access point to your entire music library. Play back and archive music on NAS drives, stream music from the internet, play Internet Radio Stations, rip CDs, get cover art and metadata — and control it all via the ROON interface and the Weiss web interface.

The MAN301R is a powerhouse in terms of features and versatility, and a must-have for enthusiasts with music collections that are played back from multiple locations and / or for music streaming lovers.

Roon Mode

he main operating mode which needs the user to have a Roon subscription in order to be able to use the Roon user interface. Roon allows to:
– stream music from Qobuz, Tidal, KKBOX, Dropbox (with the appropriate subscriptions)
– play files from local storage devices
– stream radio stations via the Internet
For more information see https://roon.app

Connect the MAN301R to your network to access your NAS devices and the Internet. Then use the Roon app to control and organize your entire music library. All common audio file formats are supported.

The MAN301R runs the Roon Core software, thus no additional computer is required.

Pre-Amp Mode

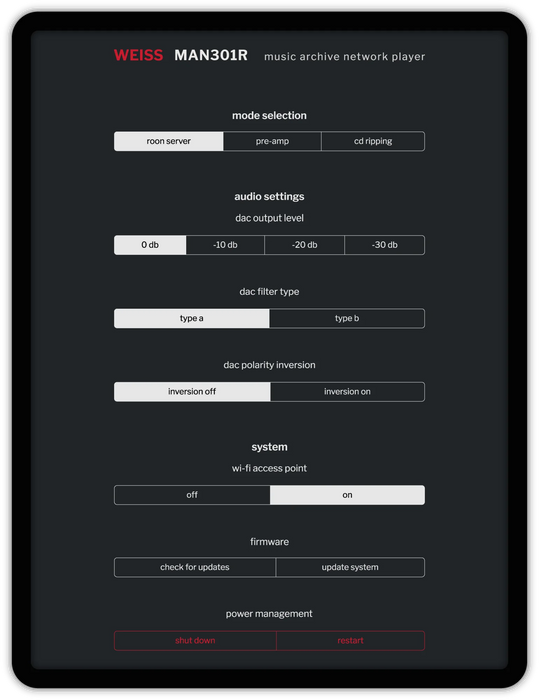

This mode allows the use of the MAN301R as a D/A Converter. Provided the MAN301R has a D/A Converter module installed. If there isn’t any D/A Converter installed the preamp mode can be used as a volume control for digital signals via the web interface.

The inputs available in pre-amp mode are: AES/EBU and S/PDIF on XLR, RCA and TOSLINK connectors, UPnP and airplay.

CD Ripping Mode

This mode allows to rip CDs to a USB storage device plugged into the back of the MAN301R. The ripped files then can be played from within the USB storage device or can be copied to another storage device.

Features

  • Buit-in Roon Server, CD-Ripper and DAC (option)
  • Multiple MAN301 devices can be controlled from within a single iPad.
  • Multiple users per MAN301 device are supported, each with his/her own music library, playlists, searches etc..
  • All common audio file formats (uncompressed, lossless compressed, lossy compressed) are supported for playback and ripping.
  • Music library displayed according to album names, artist names, genres, recently played, recently added.
  • A powerful search facility allows to store searches, which result in dynamic playlists.
  • Playlists are easily added, edited and can be set safe.
  • Volume control in 4 coarse analog steps and with a high resolution, dithered digital fader.
  • Start, stop, skip controls.
  • Repeat single track or repeat whole playlist function.
  • Powerful cover art search in multiple databases including Gracenote and Google.
  • CD ripping in all common audio file formats.
  • Direct CD playback without the need to rip the CD.
  • Metadata fetching from various databases including Gracenote. (Gracenote is the most powerful database for CD metadata and cover art).
  • Comprehensive user interface on iPad, easily to be handled even by computer novices.
  • Software upgradeable via Internet.
  • Internet radio streaming.
  • Future software upgrades will include various signal processing facilities.
  • Made in Switzerland

Specifications

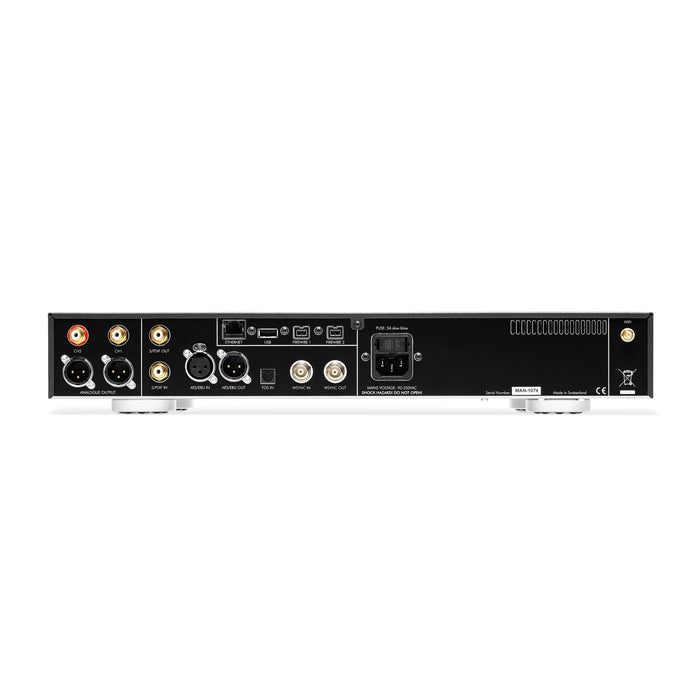

Digital Inputs
  • (1) Ethernet connector
  • (1) XLR connector
  • (1) RCA connector
  • (1) TOSLINK connector (optical)
  • XLR, RCA, TOSLINK inputs accept professional or consumer standard, i.e. accept AES/EBU or S/PDIF signals
  • Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz on any of the inputs, except TOSLINK input: 96 kHz maximum
  • Maximum input word-length: 24 Bits
Digital Outputs
  • (1) XLR connector w/ AES/EBU format
  • (1) RCA connector w/ AES/EBU format
  • (1) USB type A connector
  • (1) Ethernet connector
Analogue Outputs (DAC version)
  • (2) XLR connectors (hot on pin 2), DC coupled, short circuit proof output circuitry, output impedance 44 Ω
  • (2) RCA connectors, DC coupled, short circuit proof output circuitry, output impedance 22 Ω
  • The output level is selectable via the web interface
Supported File Formats
  • WAV 44.1-192 kHz, 8-32 Bit, float, double
  • AIFF 44.1-192 kHz, 8-32 Bit, float, double
  • M4a/ALAC 44.1-192 kHz, 16-32 Bit
  • M4a/AAC 44.1-96 kHz
  • FLAC 44.1-192 kHz, 16-24 Bit (32 not tested/unknown)
Dimensions
  • Depth: 30 cm / 11.8 inches
  • Width: 45 cm / 17.7 inches
  • Height: 6.6 cm / 2.6 inches
  • Height with feet: 7.4 cm / 2.9 inches
Power Supply

Two separate power supplies are employed, one for the computer section and another one for the digital and analog audio sections. The audio section power supply uses a toroidal transformer with a combination of switching and linear voltage regulators. The standby power is at a very low 0.5 W maximum.

Support
