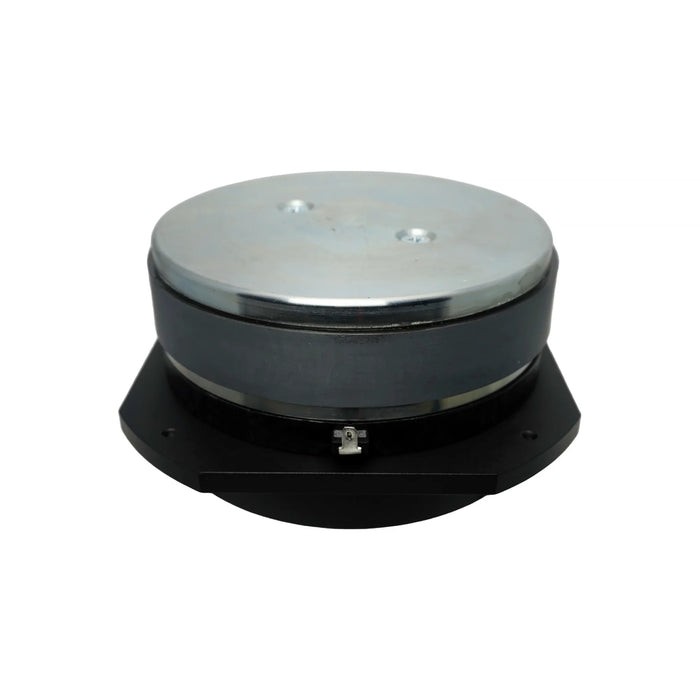

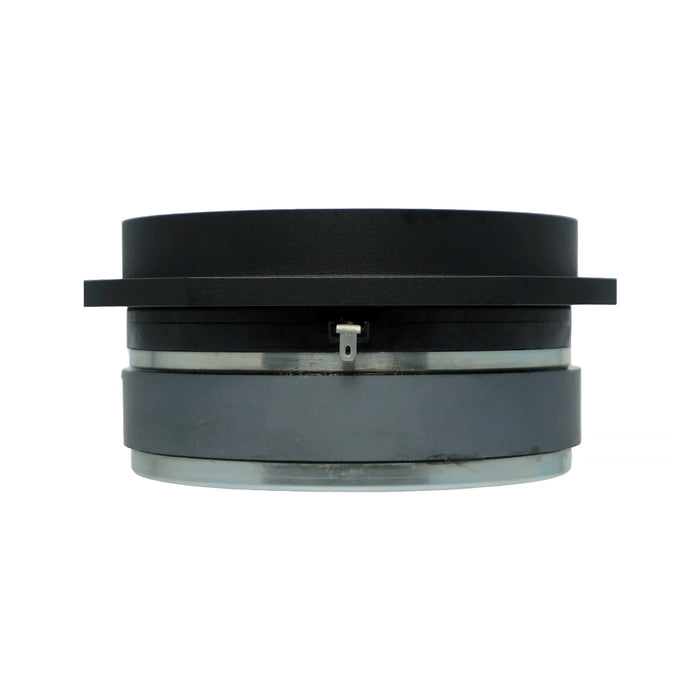

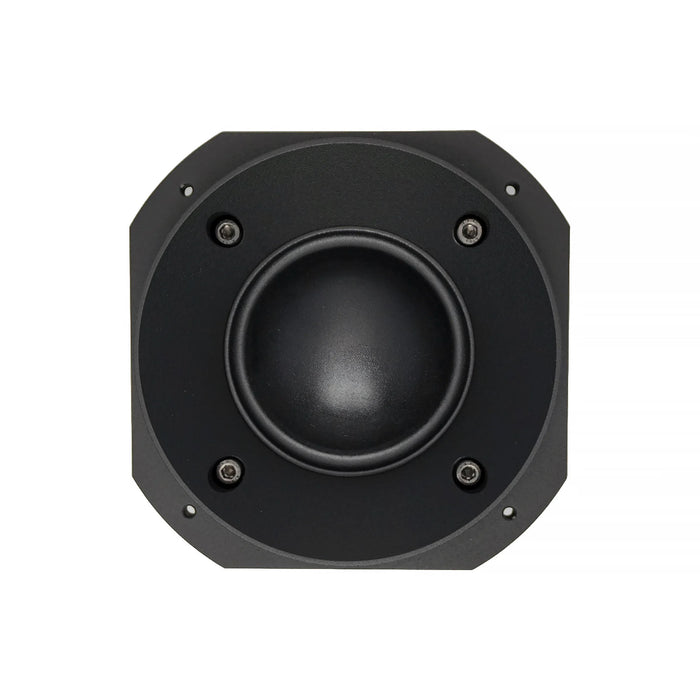

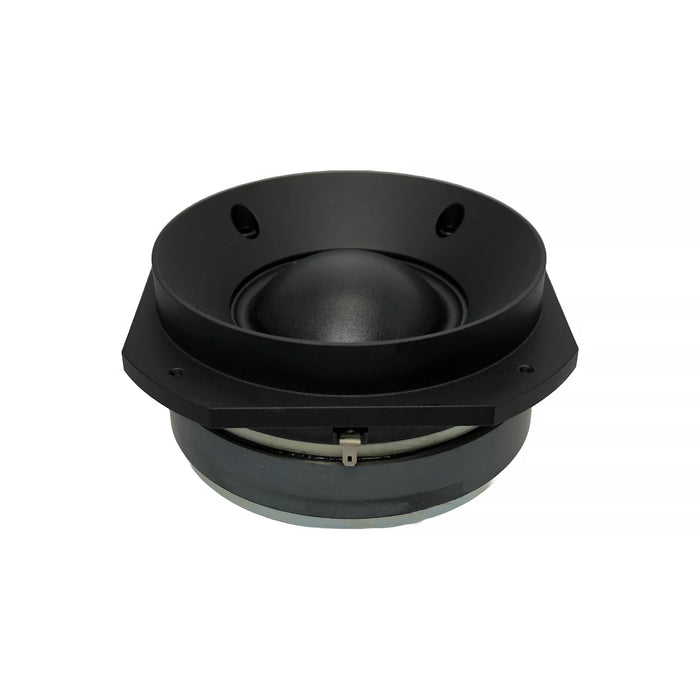

Volt VM754 3inch Soft Dome Midrange
Taxes & Shipping Included
The Volt VM754 delivers studio-grade midrange performance through meticulous engineering. This 3-inch soft dome driver combines a front-mounted horn with FEA-optimised magnet assembly to achieve exceptional clarity and controlled dispersion. A single-layer copper voice coil enables dynamic range without sacrificing detail, while the coated fabric dome and dual surround design minimize coloration and ensure stability under demanding conditions. The 155 mm ceramic magnet provides high efficiency and thermal reliability. Mounted on a rigid aluminium chassis with M5 threaded inserts for secure installation, the VM754 excels in critical monitoring applications where precision imaging and smooth frequency response are non-negotiable.
This 3" (75 mm) soft midrange dome developed for studio monitors that demand accuracy, power, and effortless midband clarity. Loaded by a short, front-mounted horn, it delivers exceptionally smooth frequency response and the controlled dispersion required for precise imaging in critical listening environments.
A lightweight, single-layer copper voice coil—wound on a former slightly longer than the focused magnet gap—allows generous excursion at the lower end of the operating range while maintaining detail and control. The one-piece fabric dome and surround are coated for consistency and low coloration, with a secondary rear surround ensuring full coil stability under dynamic conditions.
The FEA-optimised magnet assembly uses a substantial 155 mm ceramic magnet to achieve high efficiency and dependable thermal performance. The structure is mounted to a rigid, painted aluminium chassis, and termination braids are hidden inside the unit keeping the design clean. Standard 4.8 mm spade terminals accept soldered or push-on connectors.
For serviceability, the dome and coil are built onto a precisely locating, replaceable diaphragm ring for straightforward field replacement. The VM754 is designed for rear mounting, with M5 threaded inserts incorporated into the flange for secure, reliable installation.
Features
- Wide dispersion
- Low distortion
- 100 Watt (AES)
- Exceptionally smooth response
- 92dB sensitivity
- Made in UK
Specifications
- Model Number: VM754
- Nominal Diameter (mm): 75
- Power Capacity (Watt AES): 100
- Frequency Range (Hz): 450-4500
- Impedance (Ohms): 8
- Voice Coil Diameter (mm): 75
- Voice Coil Height (mm): 9.5mm
- Voice Coil Layers: 1
- Magnet Gap Height: 7.5mm
- Linear Excursion (XMax): ±1mm
- Maximum Excursion (mm): 4
- Volume Displacement: 1 Litres
- Connection:4.8mm Solder
- Chassis: Machined Aluminium
Support
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
