Volt RV4564 18inch Subwoofer
The Volt RV4564 uses Radial chassis technology
exceptional power handling and superb reliability.
The RV4564 bass unit is optimised for accurate bass reproduction. It has a massive Xmax, a symmetrical field magnet and extended centre pole for linear excursions up to 25mm peak to peak with accuracy and control.
The critically doped carbon fibre loaded cone maintains rigidity for transient punch and slam. It features three cooling systems: a vented magnet, the patented Radial chassis and a multi-finned magnet intercooler.
This technology keeps voice coil temperatures exceptionally low and substantially reduces power compression to maintain the full dynamic range even after prolonged operation.
Additionally the stability of the Thiele-Small parameters resulting from cooler operation preserves system bass performance at high levels. The RV4564 is intended for use in high power professional studio monitors and sub bass systems.
Features
- 18" Radial Chassis
- 750 Watt (AES)
- Optimised for Sub Bass
- Exceptionally Low Power Compression
- 4" Voice Coil
- Multi-Finned Magnet Intercooler
- Made in UK
Specifications
- Model Number: RV4564
- Nominal Diameter (mm): 450
- Power Capacity (Watt AES): 750
- Sensitivity (dB/watt/m): 93

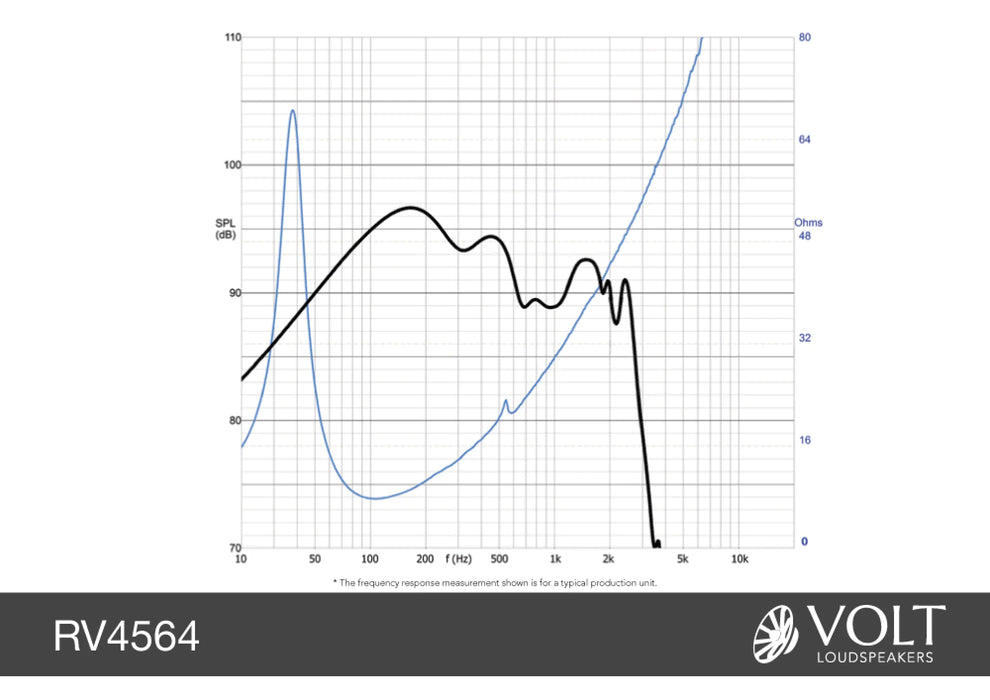

- Frequency Range (Hz): 25-500
- Impedance (Ohms): 4 or 8
- BL Factor: 25.7
- Voice Coil Diameter (mm): 100
- Voice Coil Material: Copper
- Maximum Excursion (mm): 44 (before damage)
- Magnet Assembly Weight (Kg): 11.5
- Effective Moving Mass (Kg): 0.235
- Compliance (M/N): 0.00016
- Volume Displaced (litres): 13
- Connection: Metal Push Terminals
- Chassis: Diecast Aluminium
Support
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
