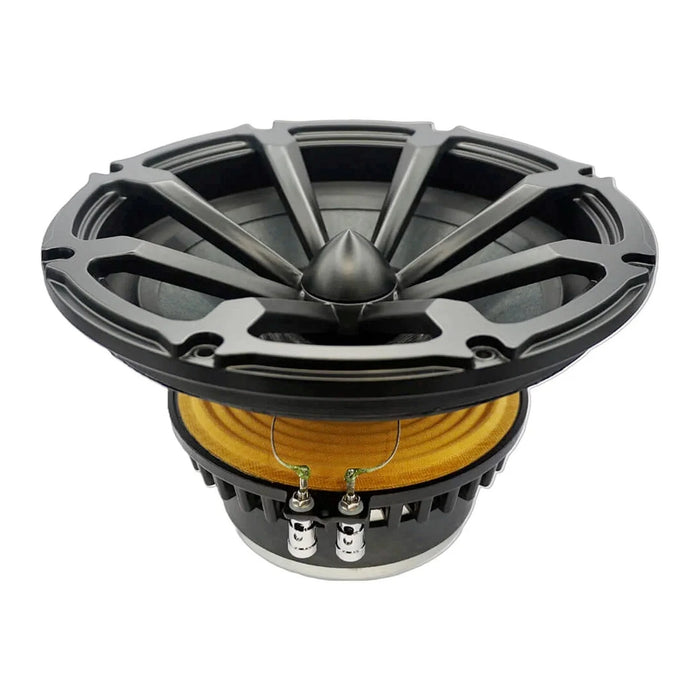

Volt RV2501 10inch Woofer
The Volt RV2501 uses Radial chassis technology
exceptional power handling and superb reliability.
The RV2501 features three cooling systems: in addition to a vented magnet it uses the Radial chassis, which acts as a giant heatsink, plus a multi-finned magnet intercooler.
This keeps voice coil and magnet temperatures exceptionally low resulting in superb reliability, 3dB less power compression and tight, clean bass even after prolonged operation at maximum power.
The RV2501 has a symmetrical field magnet with extended centre pole for absolute linearity and transient control on high power peak inputs. It has double rear suspensions for stability and a 4 layer voice coil to maximise BL.
Features
- 10" Radial Chassis
- Low Loss Mirrored Double Suspension
- Low Damping NBR Rubber Surround
- Air Dried Paper/Carbon Fibre Cone
- Multi-Finned Magnet Intercooler
- Made in UK
Specifications
- Model Number: RV2501
- Nominal Diameter (mm): 250
- Power Capacity (Watt AES): 250
- Sensitivity (dB/watt/m): 91
- Frequency Range (Hz): 30-800
- Impedance (Ohms): 8
- BL Factor: 13.9
- Voice Coil Diameter (mm): 50
- Voice Coil Material: Copper
- Maximum Excursion (mm): 10 (before damage)
- Magnet Assembly Weight (Kg): 5.2
- Volume Displaced (litres): 2.2
- Connection: Metal Push Terminals
- Chassis: High-Pressure Diecast Aluminium
Support
Note
- Price is per unit
