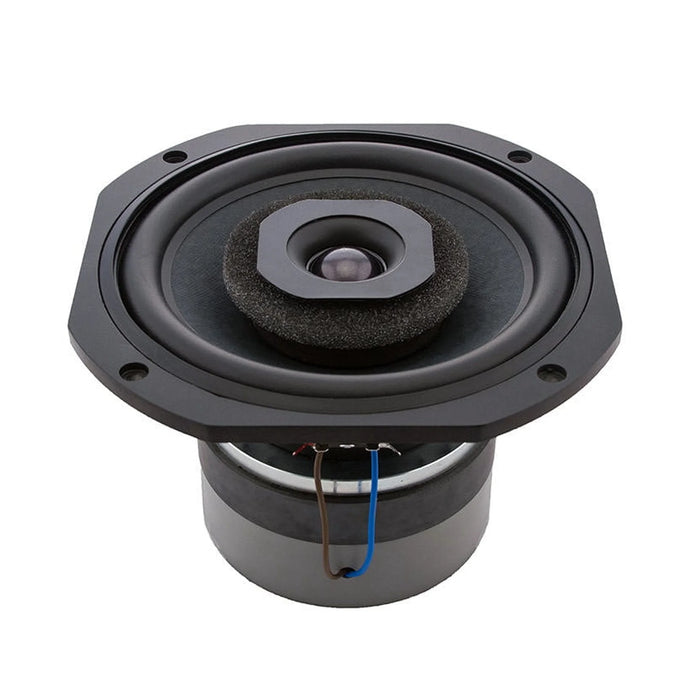

Volt CX220.1 8inch Coaxial
The Volt CX220.1 is a coaxial unit with integral crossover and a ferrofluid cooled dome tweeter. High power handling, excellent dispersion and low distortion make the CX220.1 suitable for studio and fixed installation applications where quality and dynamic range are essential.
The bass-midrange system features a symmetrical field magnet, dual rear suspensions and a critically doped surround for low colouration and linearity.
The tweeter has a 28mm voice coil and Neodymium magnet for efficiency and power handling. A foam disc behind the tweeter flange minimises diffraction problems and gives a wide, smooth off axis response. The entire tweeter assembly is field replaceable.
Thiele-Small parameters are optimised for use in compact enclosures.
Features
- Full Range Coaxial Driver
- Double suspension
- Symmetrical Field Magnet
- Integral Crossover and Dome Tweeter
- 150 Watt (AES)
- Made in UK
Specifications
- Model Number: CX220.1
- Nominal Diameter (mm): 220
- Power Capacity (Watt AES): 150
- Sensitivity (dB/watt/m): 90
- Frequency Range (Hz): 40-20000
- Impedance (Ohms): 4, 8, or 16
- BL Factor: 11.9
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 3.6
- Effective Moving Mass (Kg): 0.028
- Compliance (M/N): 0.00069
- Volume Displaced (litres): 1
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium
Support
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
