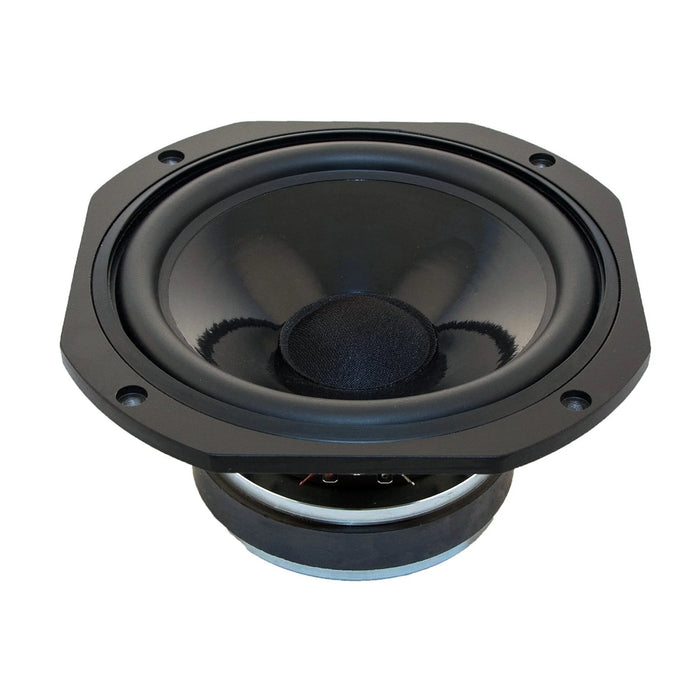

Volt BM228.8 8inch MidWoofer
The Volt BM228.8 (8") delivers powerful bass performance with extended low colouration midrange.
It uses a symmetrical field magnet system for large linear excursion capability with low distortion and mirrored double rear suspensions ensuring transient stability at high drive levels.
The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended midband enabling optimum 2-way systems.
The diecast aluminium chassis is vented below the suspensions to increase cooling airflow to the voice coil and magnet.
Features
- 100 Watt (AES)Doped HIPS Cone
- Double Low Loss Suspensions
- Diecast Aluminium Vented Chassis
- Extended Pole, Symmetrical Field Magnet Design
- Made in UK
Specifications
- Model Number: BM228.8
- Nominal Diameter (mm): 220
- Power Capacity (Watt AES): 150
- Sensitivity (dB/watt/m): 89
- Frequency Range (Hz): 30-3000
- Impedance (Ohms): 8 or 16
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Suspension: Mirrored Double
- Cone Material: Coated Black HIPS
- Surround: Rubber
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 3.6
- Volume Displaced (litres): 0.8
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium
Support
Note
- Price is per unit
