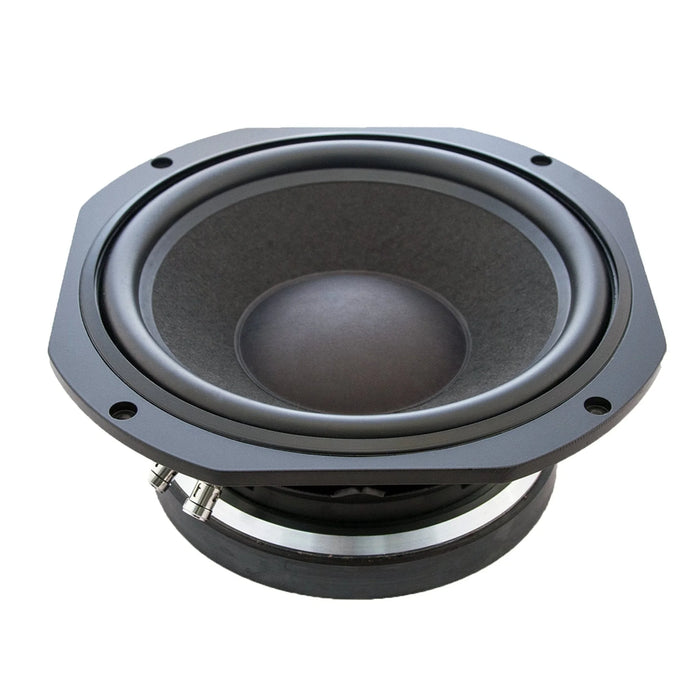

Volt B2500.1 10inch Woofer
Taxes & Shipping Included
The Volt B2500.1 is the ultimate 250 mm high-power studio bass driver. This unit is intended for state-of-the-art studio systems where dynamic range and analytical clarity are essential.
The B2500.1 uses a massive magnet with symmetrical magnetic field and extended pole for maximum linearity. Matched dual rear suspensions maintain stability at high power levels.
The cone is exceptionally rigid ensuring true piston integrity.
Features
- Dual suspension
- Symmetrical Field Magnet
- Rear vented magnet
- Exceptional Bass Performance
- 250 Watt (AES)
- Made in UK
Specifications
- Model Number: B2500.1
- Nominal Diameter (mm): 250
- Power Capacity (Watt AES): 250
- Sensitivity (dB/watt/m): 88
- Frequency Range (Hz): 25-1000
- Impedance (Ohms): 8, 16, or 24
- BL Factor: 18.7
- Voice Coil Diameter (mm): 75
- Voice Coil Material: Copper
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 8.1
- Effective Moving Mass (Kg): 0.104
- Compliance (M/N): 0.00016
- Volume Displaced (litres): 2
- Connection: Metal Push Terminals
- Chassis: Painted Diecast Aluminium
Support
- Datasheet
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
