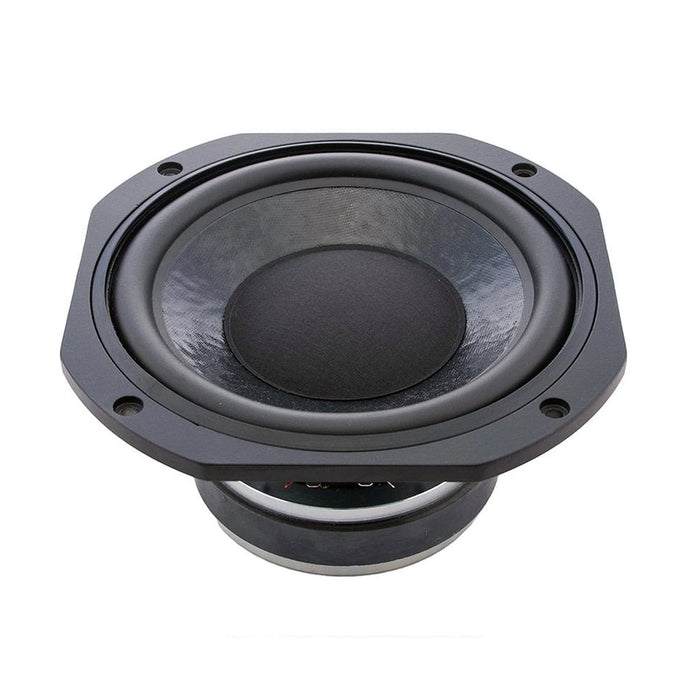

Volt B220.2 8inch Woofer
The Volt B220.2 uses a symmetrical field magnet system with a long coil for large linear excursion capability.
Double rear suspensions guarantee transient stability at high drive levels. The cone is doped for minimal colouration.
The Thiele-Small parameters are optimised for easy use in relatively small enclosures to give extended bass performance.
Features
- Doped cone
- Double suspension
- Symmetrical Field Magnet
- Exceptional Bass Performance
- 150 Watt (AES)
- Made in UK
Specifications
- Model Number: B220.2
- Nominal Diameter (mm): 220
- Power Capacity (Watt AES): 150
- Sensitivity (dB/watt/m): 90
- Frequency Range (Hz): 25-1000
- Impedance (Ohms): 8 or 16
- BL Factor: 11.8
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 3.6
- Effective Moving Mass (Kg): 0.033
- Compliance (M/N): 0.00077
- Volume Displaced (litres): 0.8
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium
Support
Note
- Price is per unit
About Volt Loudspeakers
Since 1979, Volt Loudspeakers have built an international reputation for professionalism and excellence in the best traditions of the British audio industry. Volt’s patented Radial Technology is the brain child of the company’s founder, David Lyth. From PMC, Quested, ProAc, Graham Audio and Kerr Acoustic to Funktion-One, the list of audio brands that use Volt drivers in their high end loudspeakers is an enviable list of Tier A high quality manufacturers who use nothing but the best parts available for their top tier products.
