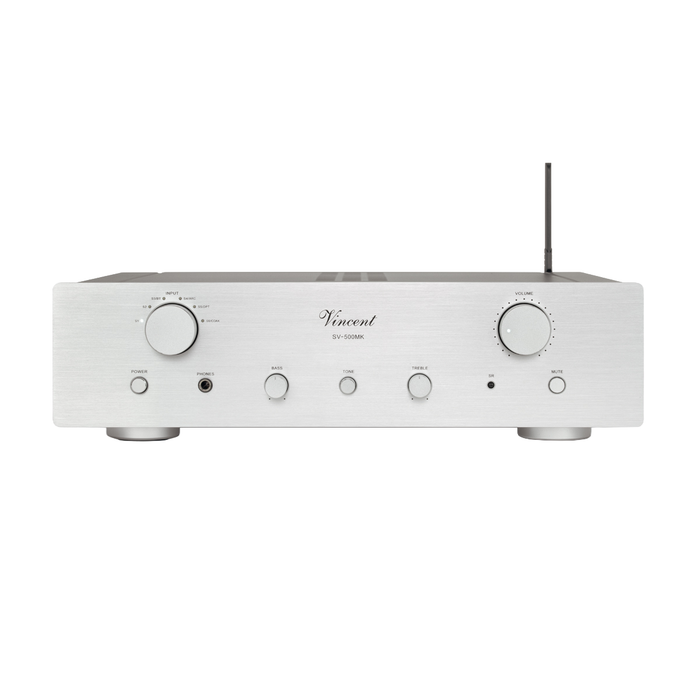

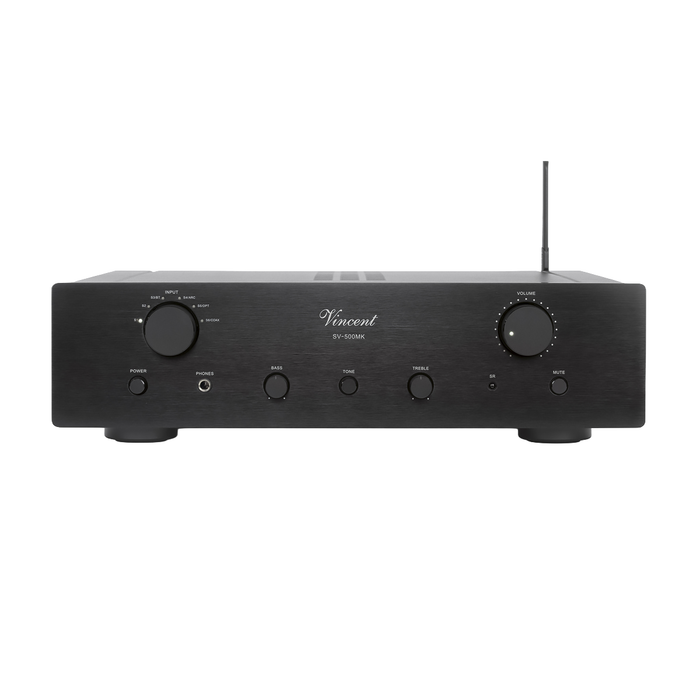

Vincent SV-500 Hybrid Integrated Amplifier

by Vincent
₹ 176,000 - ₹ 176,000
₹ 176,000
₹ 176,000
₹ 176,000 - ₹ 176,000
₹ 176,000

Taxes & Shipping Included

Color: Black

A "little" hybrid amp with the successful Vincent quality and a very good balance between price and performance - is that possible? Not only we had this question. We also had many customers' requests. So we designed and developed a "people's amp" - the SV-500. The tube gives a warm and natural sound to the SV-500. Its transistor makes it powerful. Ample power supply for the SV-500 avoids dynamic losses.

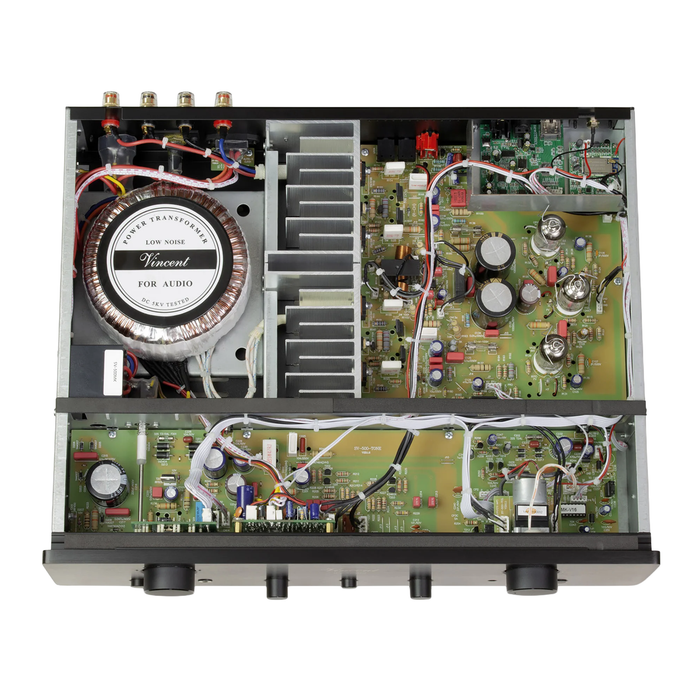

The SV-500 does not only look similar to its big brother, but also works with similar circuit inside. The tubes' assembly, however, has been altered. Audio signals are processed by two 6N1 tubes, one 12AX7 tube and amplified by four Toshiba transistors at the output.

A different 110 Watts toroidal transformer comes into operation as well. Two condensators for grading of electric power and caching have 20,000 uF. The SV-500 is supplied with 4 analogue (RCA) and 2 digital (optical and coax) inputs for different sound sources. In addition to that, the SV-500 has a pre-output and a rec-output that provide for a subwoofer and/or recording equipment. An aluminium remote control is included and adds to the classy designer look.

Features

  • 2 x 50W (8ohm)
  • 32-bit/384kHz-capable Burr Brown PCM5100 DAC
  • Inputs: 4x RCA; 1x optical digital; 1x coaxial digital
  • Digital Inputs
  • Pre/Subwoofer Out
  • Bass & Treble Controls

Specifications

  • Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB; 20 Hz - 50 kHz +/- 2 dB
  • Nominal Output Power RMS/8 Ohm: 2 x 50 Watt
  • Nominal Output Power RMS/4 Ohm: 2 x 80 Watt
  • Input Sensitivity: 420 mV
  • T.H.D.: < 0.1% (1 kHz, 1 Watt)
  • Signal-Noise Ratio: >90dB
  • Input Impedance: 47 kOhm
  • Inputs: 4 x Stereo RCA, 1 x Optical, 1 x Coax

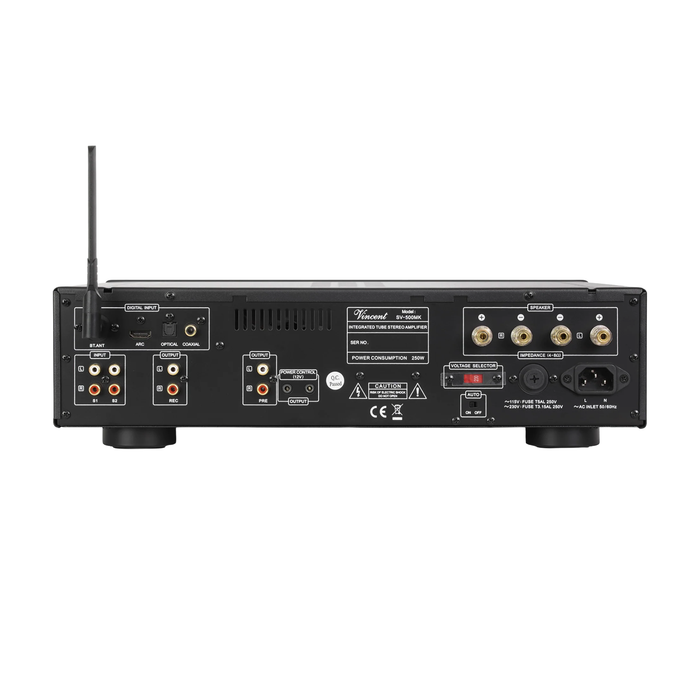

  • Outputs: 1 x Stereo RCA Rec Out, 1 x Stereo RCA Pre Out, 2 x Power Control, 2 x 2 Speaker Terminal
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Tubes: 1 x 12AX7, 2 x 6N1
  • Colour: Black or Silver
  • Weight: 10kg
  • Dimensions (W x H x D): 430 x 118 x 375 mm
