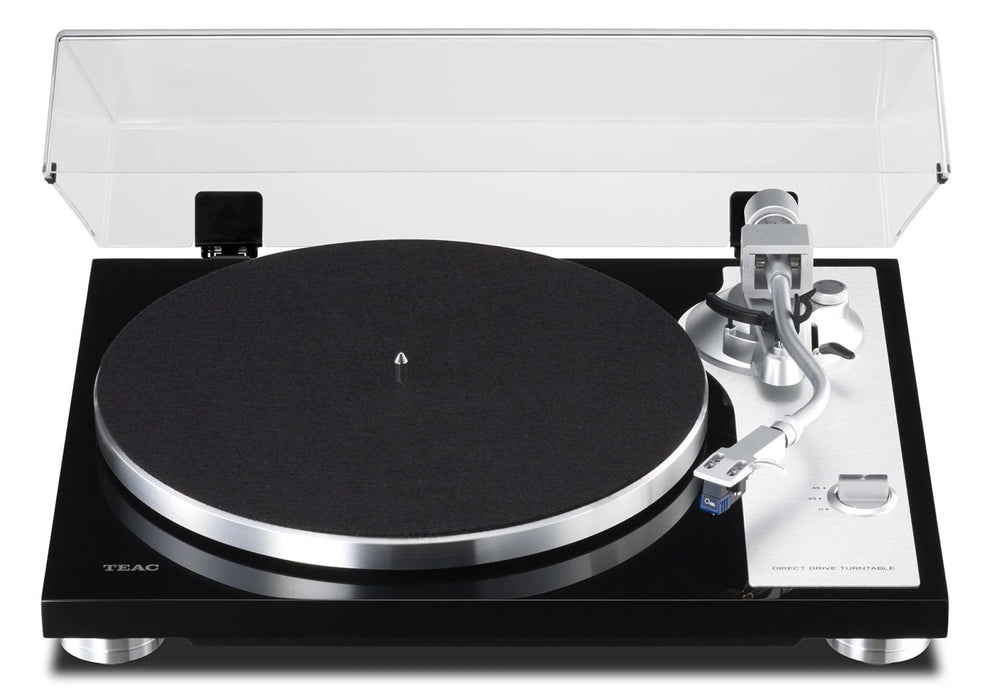

TEAC TN-4DSE - Vinyl Turntable with Phono Stage

by TEAC
Original price ₹ 125,000 - Original price ₹ 125,000
Original price ₹ 125,000
₹ 125,000
₹ 125,000 - ₹ 125,000
Current price ₹ 125,000

The TN-4D-SE is a direct-drive, analog turntable with an elegant, low-profile design, made possible by the use of a newly-developed brushless DC servo motor.

Its brushless DC motor (with feedback control system) achieves crystal-locked speed stability and smoother rotation while also eliminating cogging*. This low-profile motor allowed us to design a plinth that’s extraordinarily sleek and stylish compared to that of most other direct drive turntables. The new tonearm employs knife-edge, pivot-point bearings, developed in collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer. The result is an insightful, high-resolution sound quality that tonearms with conventional bearings can’t match. Partnering it is a carefully designed PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system. A high quality NJM8080 op-amp, specially designed for hi-fi applications by New Japan Radio Corporation, is employed to convey the finest of musical detail.

To extract the music from your vinyl, the TN-4D-SE comes with a highly-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. Noted for its innate musicality, the cartridge comes pre-installed on the headshell at the factory, allowing near ‘plug and play’ operation. The S-shaped tonearm meanwhile allows for quick cartridge/headshell swaps, so users can alter the sound quality by experimenting with different cartridges, if the desire takes them.

The TN-4D-SE is an analog turntable that achieves highly accurate rotational speeds and is very distinctive, for a direct-drive design, thanks to its sleek and stylish aesthetics.

What is Cogging?
Cogging is a phenomenon in which the periodic attraction of the armature and rotor inside the motor is dependent on the rotation angle, resulting in a fine pulsing. For example, if you turn the axle of a motor with your fingers, you'll feel the rotation occurring in steps. This phenomenon is known as cogging. In order to eliminate cogging on a direct-drive turntable, a motor needs to have large numbers of poles, along with complex circuits and a mechanism to achieve smooth rotation. As a result, most turntable direct-drive units are relatively large, which is why the resulting turntables are so bulky.


Features

  • Direct-drive analog turntable
  • Crystal-locked speed stability, thanks to a new brushless DC motor with feedback control
  • Die-cast aluminium platter
  • Knife-edge, pivot-point tonearm base, designed by high-end tonearm manufacturer SAEC
  • Multi-layer piano black or natural walnut veneer finish
  • Built-in PHONO EQ amplifier for high-quality sound (PHONO/LINE switchable)
  • Audiophile-grade NJM8080 op-amp used in PHONO EQ stage
  • 2-speed drive offering 33-⅓ and 45 rpm
  • Gold-plated oxidation-resistant output connectors
  • Oyster MM cartridge by SUMIKO
  • Shock-absorbing insulating feet
  • GND terminal
  • RoHS compliant

Specifications

Turntable section
Type Direct Drive
Motor Brush-less DC Motor
Rotation Speeds 33-⅓ rpm, 45 rpm
Wow-and-Flutters 0.1%
S/N Ratio 67dB or higher (A-weighted, 20kHz LPF)
Turntable (Platter)
Material Aluminium Die-cast
Diameter 30cm
Tone-arm section
Type S-shaped, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5.0g
Compatible Cartridge Weight 3.0g to 12.0g
14g to 23g (including Head-shell)
Head-shell and Cartridge sections
Type MM-type (SUMIKO Oyster factory installed)
Output Voltage 4.0mV (1kHz)
Needle Pressure 1.5 to 2.5g (appropriate value: 2.3g)
Weight 5.3g
Head-shell weight 11g (including nuts, screws, and wires)
Compatible Stylus Styluses for SUMIKO Oyster
Analog Outputs
Connector RCA Pin jack × 1 pair (PHONO/LINE switchable)
Output Voltage
PHONO 4.0mV (1kHz)
LINE 224mV (–13dBV)
Operating Power AC 100 to 240V, 50/60Hz
Power Consumption 2W
Standby Power 0.5W or less
Overall Dimensions (W×H×D) 420 × 117 × 356 mm /
16.5" × 4.6" × 14.0"
Weight Approx. 6.1kg / 13.5 lbs.
Included Accessories Felt Mat, EP Adapter, Counter Weight, Head-shell (SUMIKO Oyster installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE036W-24015), Owner's Manual (including Warranty Card)
