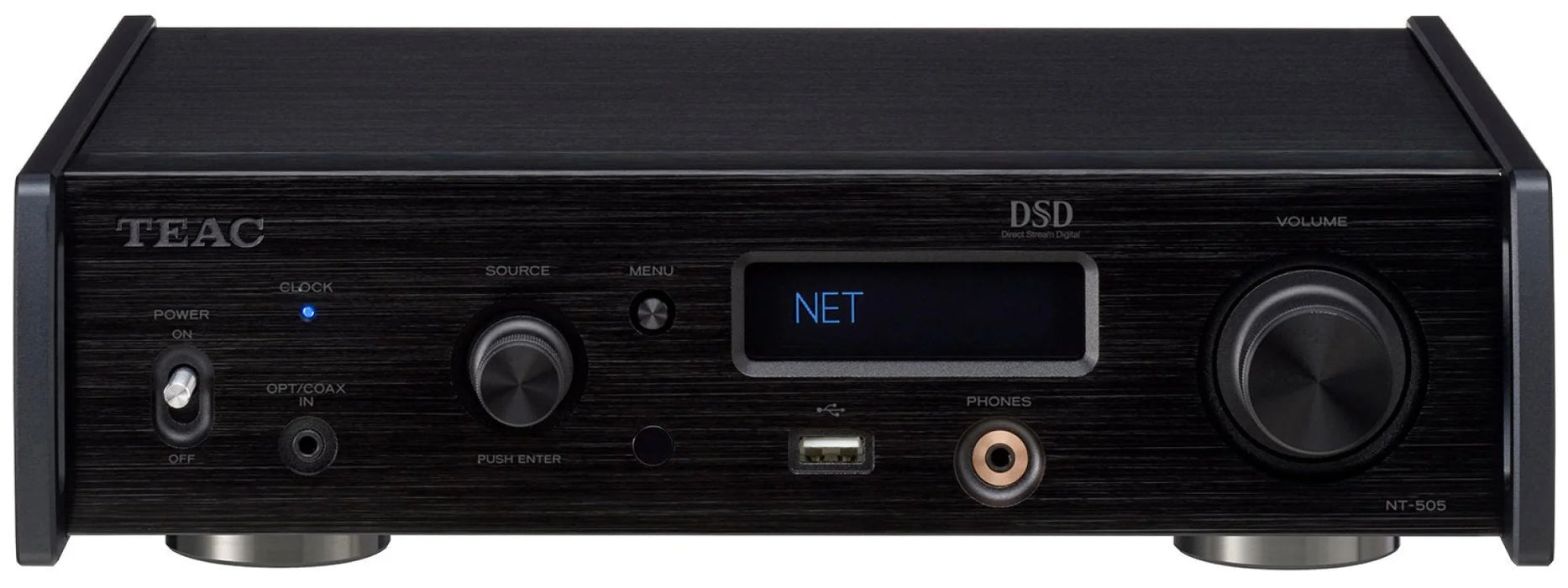

TEAC NT-505-X Hi-Res Streamer DAC
by TEAC
Sale
Original price
₹ 267,200
Original price
₹ 267,200
-
Original price
₹ 267,200
Original price
₹ 267,200
Current price
₹ 213,500
₹ 213,500
-
₹ 213,500
Current price
₹ 213,500
Taxes & Shipping Included
The TEAC NT-505-X is a class-leading dual monaural USB DAC with versatile network playback capabilities. It successfully incorporates the latest network technologies, along with TEAC’s decades of accumulated audio design experience, in an attractive package with an A4-sized footprint. The dual mono structure processes stereo signals with higher purity, and the D/A converter section uses one ES9038 Q2M (made by ESS Technology) in each of the left and right channels.
This model achieves a high signal-to-noise ratio by using each DAC in mono mode.
Moreover, when used as a USB DAC, its high specifications enable native playback of 22.5MHz DSD and 768kHz/32bit PCM formats. The Analog section, which is one of the keys to sound quality, includes four TEAC-HCLD2 buffer amp circuits that allow different drive modes, fully-balanced drive for balanced output, and parallel drive mode for unbalanced output to achieve enhanced acoustic expression.
On the network audio side, the NT-505-X supports high-quality music subscription services, namely TIDAL, Qobuz and Roon Ready*. There’s also a built-in MQA decoder, and you will enjoy unlimited music content on the Internet thanks to its high-quality digital and Analog processing technologies.
Furthermore, you can also enjoy wireless playback from smart devices with high audio quality thanks to the high performance specifications of the DAC.
Features
- Hi-Res audio playback supporting DSD512 (22.5MHz) and PCM 768kHz/32bit PCM
- DSD128 (5.6MHz) and PCM 192kHz/24bit Network streaming from NAS/PC
- ESS Technology ES9038 Q2M converter each for left and right channels
- 7 types of PCM digital filters
- Up-conversion up to 24.5MHz DSD and 384kHz/32bit PCM
- Dual on-board clocks for 44.1kHz and 48kHz frequencies
- 10MHz external clock input
- Supports MQA decoding
- Spotify, TIDAL, and Qobuz music subscription services*1
- Roon Ready
- Front USB port supporting Hi-Res playback from USB flash drive
- Bluetooth® receiver supporting LDAC™, Qualcomm® aptX™ HD, AAC and SBC
- Original TEAC-HCLD2 enhanced-current output buffer circuit
- Dual monaural circuit design
- Dual toroidal-core power transformers for each channel
- TEAC-QVCS quad volume control system
- 1/8" (3.5mm) 4-pole stereo headphone jack supporting ground-separate drive
- Full-dot OLED display with dimmer function
- Newly-developed “Stressless Foot” design with three support points
- Semi-floating design Top Panel
- Bulk Pet*2 USB transferring technology with four transfer modes for various sound characters
- Free TEAC HR Audio Player for Windows/Mac
- Free TEAC HR Streamer app for iOS/Android devices
Specifications
| Supported formats | |
| USB input | |
| PCM | 16/24/32 bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k Hz |
| DSD | 2.8M/5.6M/11.2M/22.5M Hz |
| Coaxial digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| Optical digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| DAC section | |
| USB DAC | ESS Technology ES9038 Q2M ×2 |
| Up-conversion | up to 384kHz/32-bit PCM, 24.5MHz DSD |
| LAN section | |
| Connector | RJ-45×1(1000Base-T) |
| MQA Decoder | Built-in |
| Audio inputs | |
| USB (rear) | USB B port, USB 2.0, asynchronous mode transfer, bulk transfer |
| Compatible Software | TEAC HR Audio Player (Windows, Macintosh) |
| COAXIAL digital (rear) | RCA pin×1 (gold-plated) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
| Optical digital (rear) | TOS-link×1 |
| Input level | -24.0 to -14.5dBm peak |
| Coaxial digital (front) | 1/8” (3.5mm) mini×1 (combined with optical digital input, detected automatically) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω * 1/8” Mini - RCA conversion cable included. |
| Optical digital (front) | 1/8” Mini Optical×1 (combined with coaxial digital input, detected automatically) |
| Input level | -24.0 to -14.5dBm peak |
| USB (front) | USB A port |
| Supported media | USB Flash Drive |
| Bluetooth® | |
| Bluetooth® version | 4.0 |
| Output class | Class2 (Range: approx. 33ft/10m) |
| Supported profiles | A2DP, AVRCP |
| Content protection | SCMS-T |
| Supported codec | LDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBC |
| No. of paired device | maximum 8 devices |
| Audio outputs | |
| XLR balanced | XLR×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 188Ω |
| RCA unbalanced | RCA pin×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 150Ω |
| Headphone outputs | |
| Connector | 1/8” (3.5mm) Stereo TRS jack×1 (gold-plated) |
| Polarity | Tip:L+, Ring1:R+, Ring3:L-, Sleeve:R- |
| Maximum output | 500mW + 500mW (into 32Ω) |
| Supported impedances | 16 to 600Ω |
| Clock section | |
| Internal clock | |
| Type | Crystal oscillator |
| Number of clocks | 2 (44.1kHz and 48kHz) |
| External clock input | |
| Connector | BNC (gold-plated) |
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | Rectangle wave: equivalent to TTL levels Sine wave: 0.5 to 1.0 Vrms |
| Audio performance | |
| Frequency Response | 10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off) |
| Total harmonic distortion | 0.002% or less (192kHz PCM input, RCA output, digital filter off) |
| S/N ratio | 110dB or higher (192kHz PCM input, RCA output, digital filter off) |
| Power supply | |
| AC120V, 60Hz | |
| AC220 - 240V, 50/60Hz | |
| Power consumption | 18W (0.4W in standby) |
| dimensions (including protrusions) | 290(W)×84.5(H)×248.7(D) mm / 11.4”(W)×3.3”(H)×9.8”(D) |
| Weight | 4.1kg / 9.1lbs |
| Included accessories | Power cord, RCA mini plug adapter cable, remote control (RC-1330),2 AAA batteries for remote control, Owner's Manual (with warranty) |
