TAC T-22 Integrated Tube Amplifier - Integrated Amplifier

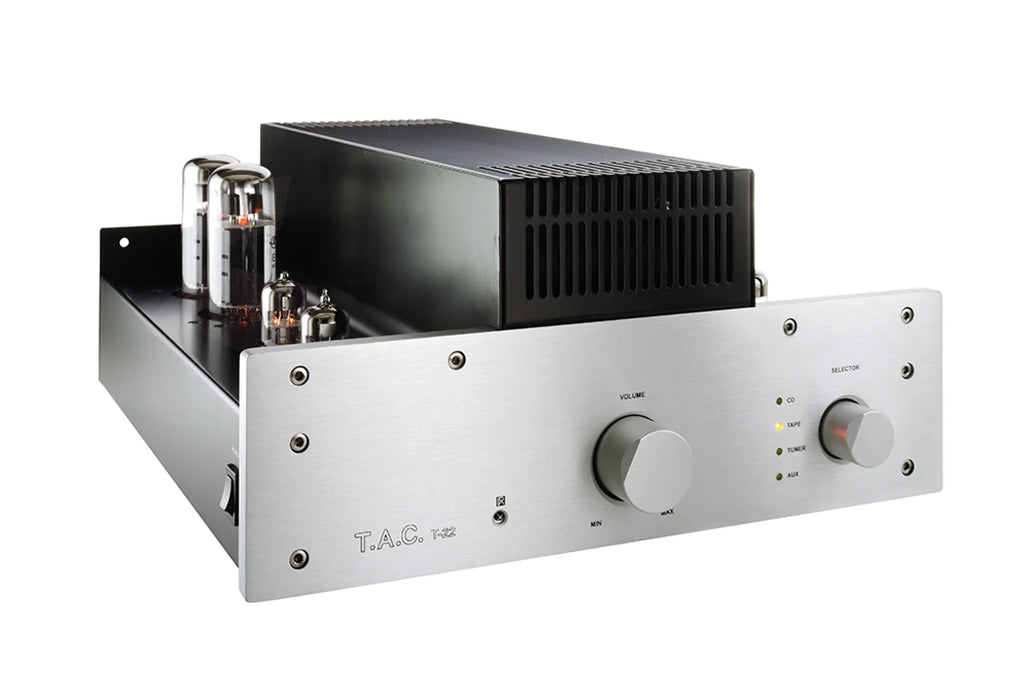

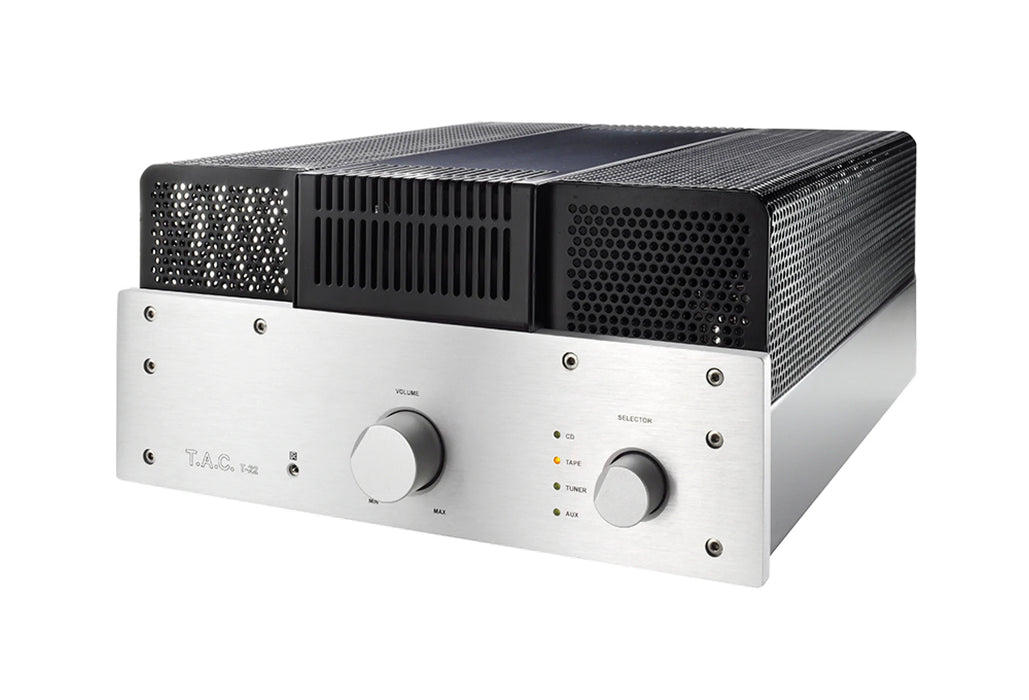

TAC T-22 Integrated Tube Amplifier

by Tube Amp Company
₹ 240,000 - ₹ 240,000
₹ 240,000
₹ 240,000
₹ 240,000 - ₹ 240,000
₹ 240,000

Taxes & Shipping Included

Proven technology in a modern design: that's how the T-22 from TAC presents itself. The two EL34 tubes per channel operate in a push/pull configuration. A feedback tap on the output transformer minimizes distortion and provides an ultra-linear circuit. All sound-defining components are measured before installation. To emphasize the purist character, a tone control was omitted.

Features
  • Purist design
  • 4 x 6N3, 4 x EL34 Tubes
  • 40w in 4/8 Ohms
Specifications
Rated power RMS 4-8 Ohm: 2 x 40 watts
Transmission: 20 Hz – 60 kHz (+/- 1.5 dB)
Distortion factor: < 1%
Signal-to-noise ratio: > 90 dB
Input impedance: 100 kOhm
Speaker impedance: 4 ohms / 8 ohms

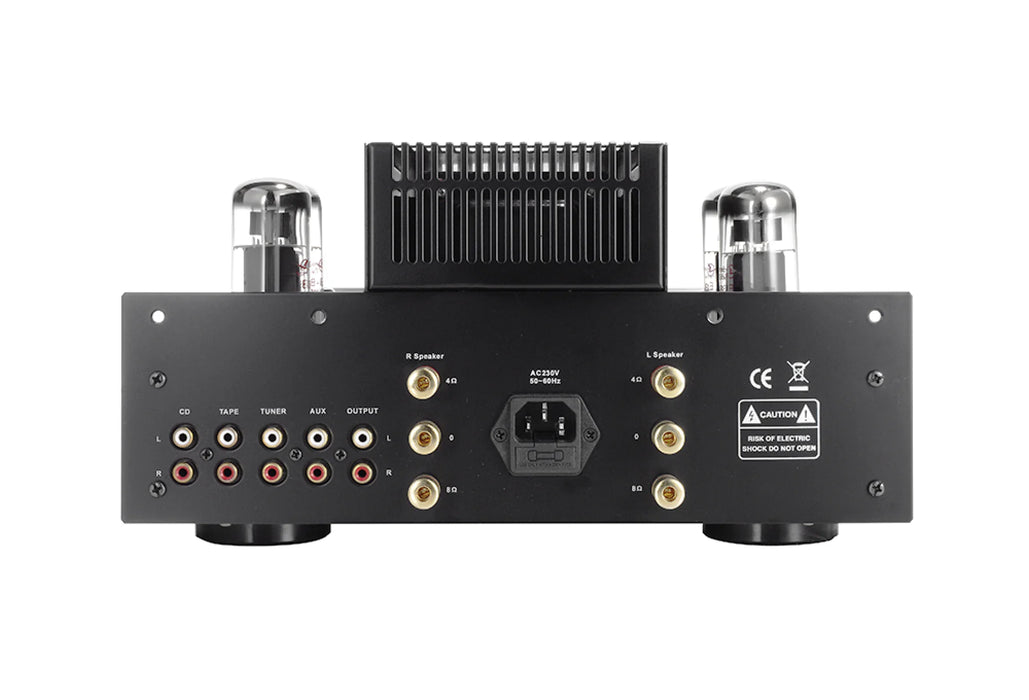

Entrances: 4 x stereo RCA
Outputs: 2 x speakers
Tubes: 4 x 6N3, 4 x EL34
Dimensions (W x H x D): 330 x 165 x 390 mm
Weight: 19.6 kg
Operating voltage: 230 V AC / 50 Hz
      Support

        Proven technology in a modern design: that's how the T-22 from TAC presents itself. The two EL34 tubes per channel operate in a push/pull configuration. A feedback tap on the output transformer minimizes distortion and provides an ultra-linear circuit. All sound-defining components are measured before installation. To emphasize the purist character, a tone control was omitted.

        • Purist design
        • 4 x 6N3, 4 x EL34 Tubes
        • 40w in 4/8 Ohms
        Rated power RMS 4-8 Ohm: 2 x 40 watts
        Transmission: 20 Hz – 60 kHz (+/- 1.5 dB)
        Distortion factor: < 1%
        Signal-to-noise ratio: > 90 dB
        Input impedance: 100 kOhm
        Speaker impedance: 4 ohms / 8 ohms
        Entrances: 4 x stereo RCA
        Outputs: 2 x speakers
        Tubes: 4 x 6N3, 4 x EL34
        Dimensions (W x H x D): 330 x 165 x 390 mm
        Weight: 19.6 kg
        Operating voltage: 230 V AC / 50 Hz
