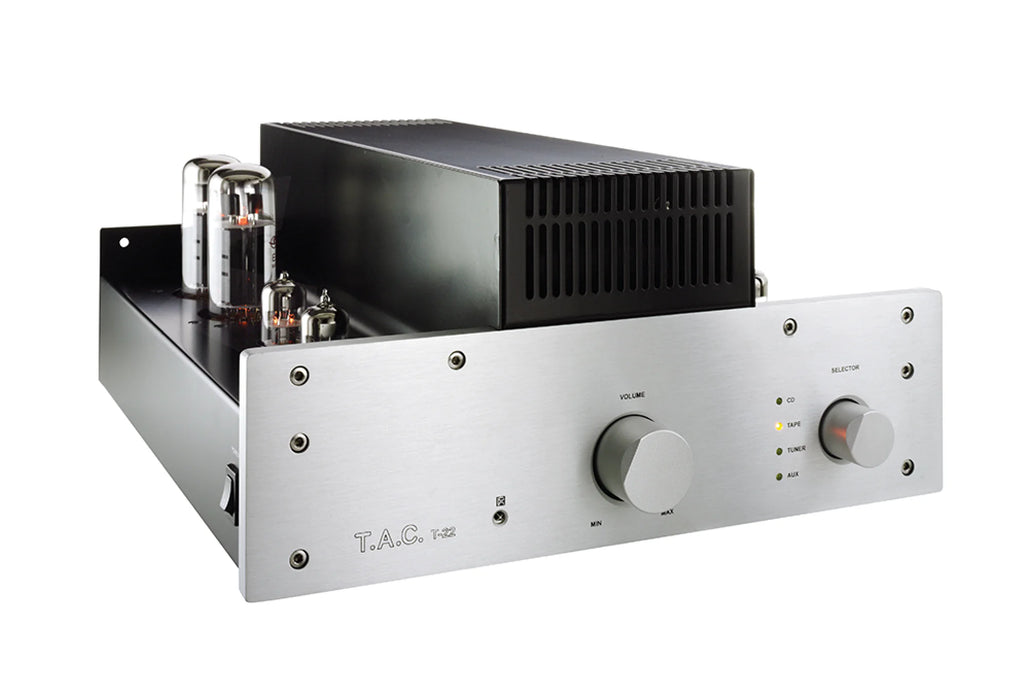

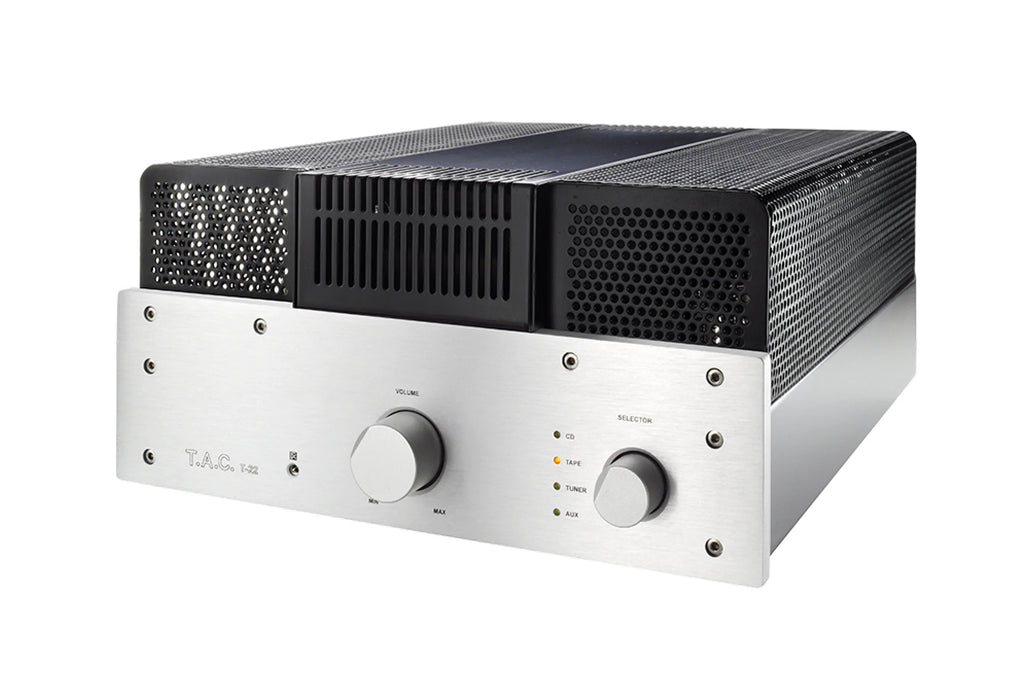

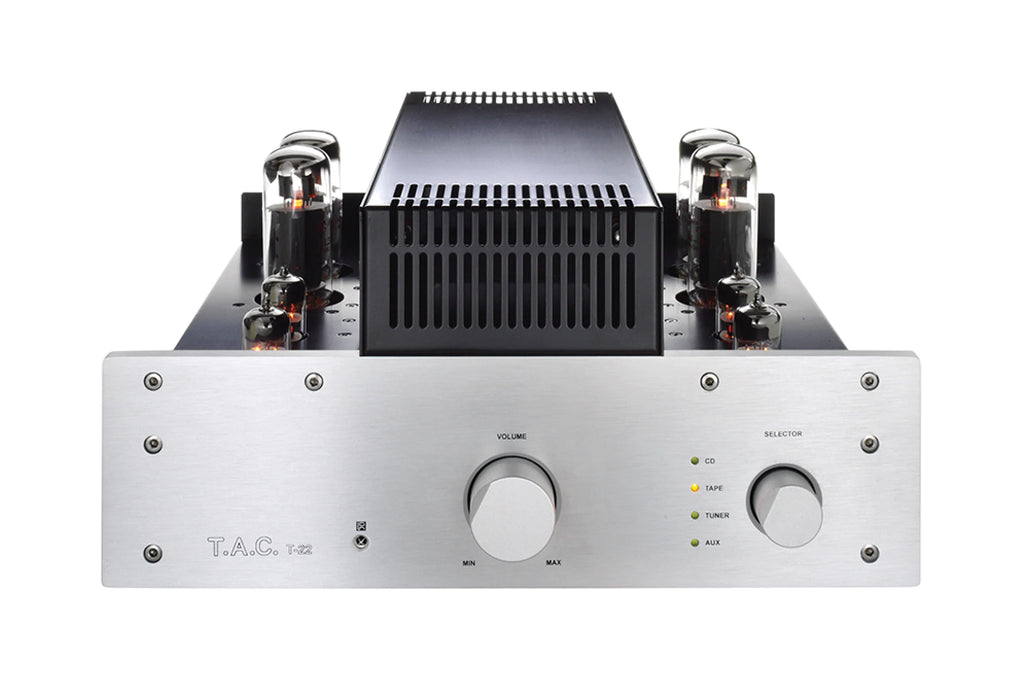

TAC T-22 Integrated Tube Amplifier
Original price
₹ 240,000
-
Original price
₹ 240,000
Original price
₹ 240,000
₹ 240,000
₹ 240,000
-
₹ 240,000
Current price
₹ 240,000
Taxes & Shipping Included
Proven technology in a modern design: that's how the T-22 from TAC presents itself. The two EL34 tubes per channel operate in a push/pull configuration. A feedback tap on the output transformer minimizes distortion and provides an ultra-linear circuit. All sound-defining components are measured before installation. To emphasize the purist character, a tone control was omitted.
Features
- Purist design
- 4 x 6N3, 4 x EL34 Tubes
- 40w in 4/8 Ohms
Specifications
Rated power RMS 4-8 Ohm: | 2 x 40 watts |
Transmission: | 20 Hz – 60 kHz (+/- 1.5 dB) |
Distortion factor: | < 1% |
Signal-to-noise ratio: | > 90 dB |
Input impedance: | 100 kOhm |
Speaker impedance: | 4 ohms / 8 ohms |

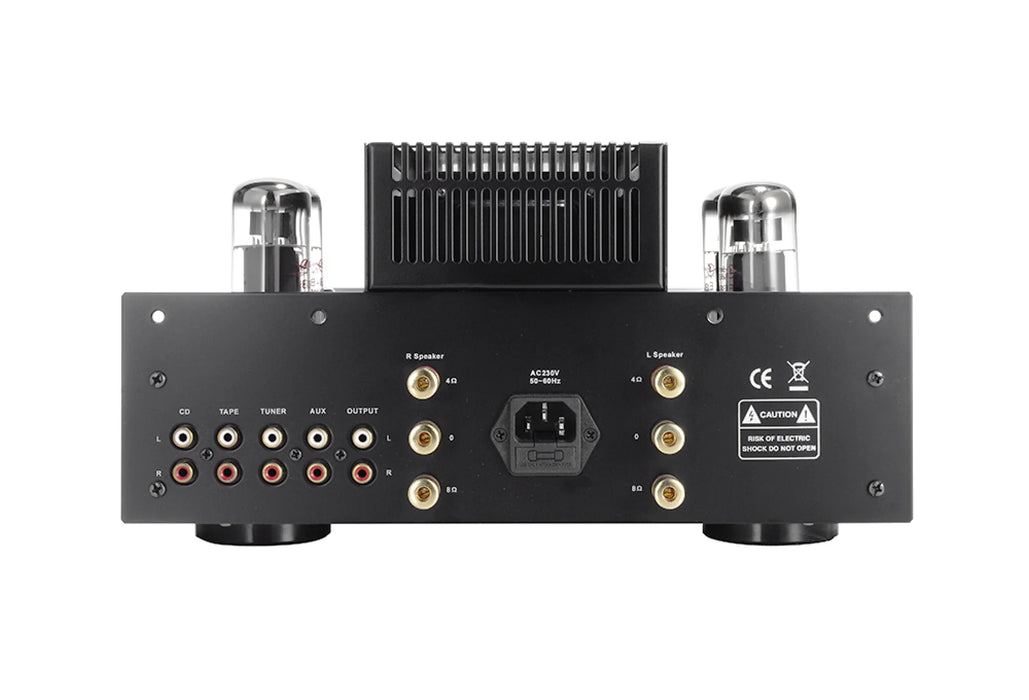

Entrances: | 4 x stereo RCA |
Outputs: | 2 x speakers |
Tubes: | 4 x 6N3, 4 x EL34 |
Dimensions (W x H x D): | 330 x 165 x 390 mm |
Weight: | 19.6 kg |
Operating voltage: | 230 V AC / 50 Hz |
