Sugden A21SE Phono Preamplifier - Phono Preamp

Sugden A21SE Phono Preamplifier

by Sugden
₹ 103,700 - ₹ 103,700
₹ 103,700
₹ 103,700
₹ 103,700 - ₹ 103,700
₹ 103,700

Taxes & Shipping Included

There are two dedicated phono amplifiers in the Sugden range and both are borne from our passion for vinyl. The Stage Two offers exceptional value for money with facilities to cater for both MM and MC cartridges. The design is a two box system separating the power supply from the amplifier. The phono amplifier has fixed loading for MM and 100 and 470 Ohm selection for MC. Our design criteria was to produce a product that was as neutral as possible, retaining a faithful and enjoyable analogue sound.

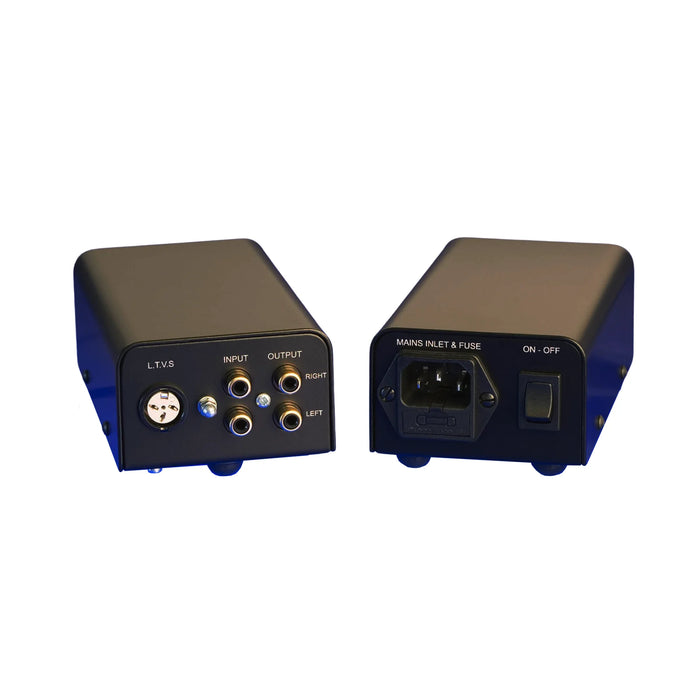

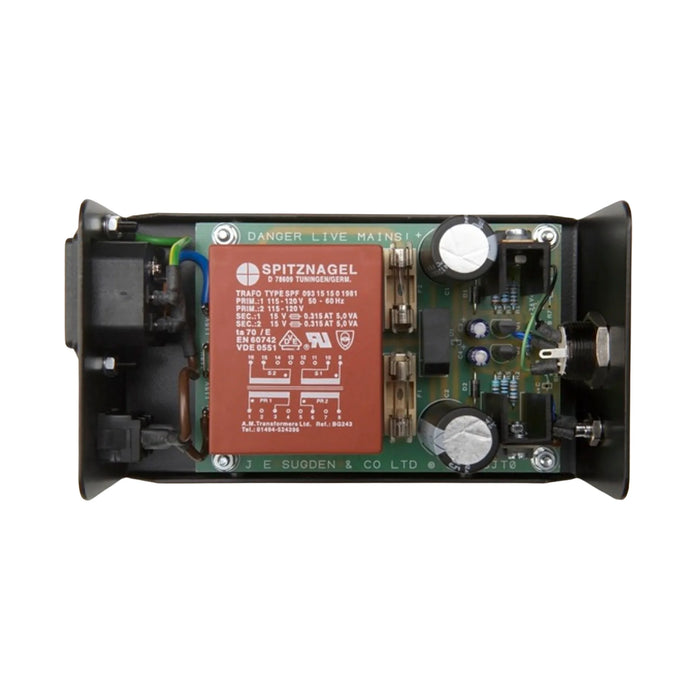

The design of the A21SE Stage Two is wide-bandwidth and we recommend that quality ancillaries should be used to obtain the best possible sound quality. Interconnects are an important part of the music chain so money should be invested in buying the best possible. To reduce pickup and interference the PSU has been separated from the phono amplifier. Therefore it is advisable to place the PSU as far away from the amplifier and other equipment as possible.

Specifications
  • Inputs Moving magnet, Moving coil, LTVS power in
  • Outputs Fixed line level output
  • Gain Adjustment Internal selection for MM or MC
  • Load Adjustment Internal for MC 100 and 470 Ohms, MM fixed load 47k
  • Earth Terminal Screw type
  • External Power Supply Mains powered
  • Input Sensitivity MM 3.0mV, MC 0.15mV
  • Output 350mV
  • Frequency Response +/-1.5dB 20Hz-20kHz
  • Signal to Noise >64dB
  • Gross Weight (packed) 2kgs
  • Dimensions Phono amplifier 60 x 140 x 77mm (hwd), Power supply 50 x 140 x 77mm (hwd)
Support

There are two dedicated phono amplifiers in the Sugden range and both are borne from our passion for vinyl. The Stage Two offers exceptional value for money with facilities to cater for both MM and MC cartridges. The design is a two box system separating the power supply from the amplifier. The phono amplifier has fixed loading for MM and 100 and 470 Ohm selection for MC. Our design criteria was to produce a product that was as neutral as possible, retaining a faithful and enjoyable analogue sound.

The design of the A21SE Stage Two is wide-bandwidth and we recommend that quality ancillaries should be used to obtain the best possible sound quality. Interconnects are an important part of the music chain so money should be invested in buying the best possible. To reduce pickup and interference the PSU has been separated from the phono amplifier. Therefore it is advisable to place the PSU as far away from the amplifier and other equipment as possible.

  • Inputs Moving magnet, Moving coil, LTVS power in
  • Outputs Fixed line level output
  • Gain Adjustment Internal selection for MM or MC
  • Load Adjustment Internal for MC 100 and 470 Ohms, MM fixed load 47k
  • Earth Terminal Screw type
  • External Power Supply Mains powered
  • Input Sensitivity MM 3.0mV, MC 0.15mV
  • Output 350mV
  • Frequency Response +/-1.5dB 20Hz-20kHz
  • Signal to Noise >64dB
  • Gross Weight (packed) 2kgs
  • Dimensions Phono amplifier 60 x 140 x 77mm (hwd), Power supply 50 x 140 x 77mm (hwd)
