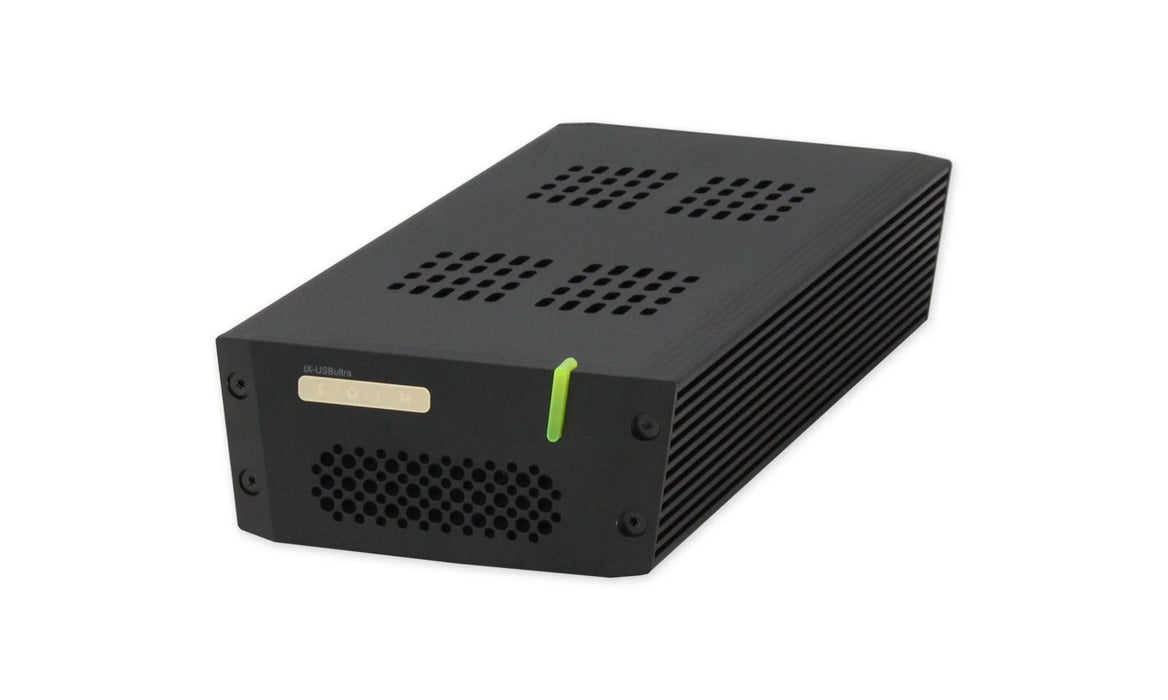

SOtM tx-USBultra with Master Clock - USB Regenerator

by SOTM
Original price ₹ 121,000 - Original price ₹ 155,000
Original price ₹ 121,000
₹ 121,000
₹ 121,000 - ₹ 155,000
Current price ₹ 121,000
Version: Basic

You may have heard or told “it sounds analog” or “it sound musical” when listening to very good sound.

Such expressions have been used to describe the sound that is close to the real charm in the actual performance stage or that is richly expressed in musical nuances rather than realistic charm. However, whether it is the former or the latter expressions, the meaning of these expressions could only make sense when the feelings of very dedicated and dynamic live performance reach to our ears and touch our mind.

However, with most audio systems, it is very difficult to experience such real charm or musical nuances, and in fact even it is also hard to reach to the sound with the ultra high-end audio systems too.

So SOtM, to overcome such situation, has been developed from SATA filters, tX-USB card series and other equipment since for the first time when people got into computer audio which have settled into the essential part of digital audio now days, but still it is a fact there is a lot to overcome to improve sound quality.

Facing up to the fact, the tX-USBUltra is designed to reach to the goal which improves sound quality. It works as a hub by receiving and distributing USB audio signals, but regenerating the USB AUDIO signal by the high-performance super clock module, sCLK-EX, installed inside to the product, so that sound could be superior to any other USB audio product and step into the upgraded sound.

The mid-low range sounds very deep, detailed and earnest, the high range sounds not distract but extremely delicate and open, and especially the very low range gives you transparency you have never heard before and gets you very natural and solid texture of performance.

The sound improvements with tX-USBUltra can be came out even in the ultra high-end audio system, it can be simply judged by the best USB audio device up to date.

Whatever is, it is very difficult to go beyond any limit in any field. At the heart of this product is the built-in super clock, sCLK-EX, which has been developed over the years, allowing you to experience a whole new range of sound and introduce you to go beyond the sound.

The tX-USBultra would show how to upgrade the sound quality and improve the dignity of music by in-depth research into advanced audio technology.

Key Features

  • USB audio signal regenerated by sCLK-EX
    • Custom designed ultra low phase noise oscillation circuit
    • Isolated differential clock signal circuit
    • Wide operating voltage input range
    • Ultra low noise regulator circuit
    • Optional 10MHz master clock input
  • 2 ports USB hub
  • USB port power ON/OFF switch



Specification

Indicate LED
  Power x 1

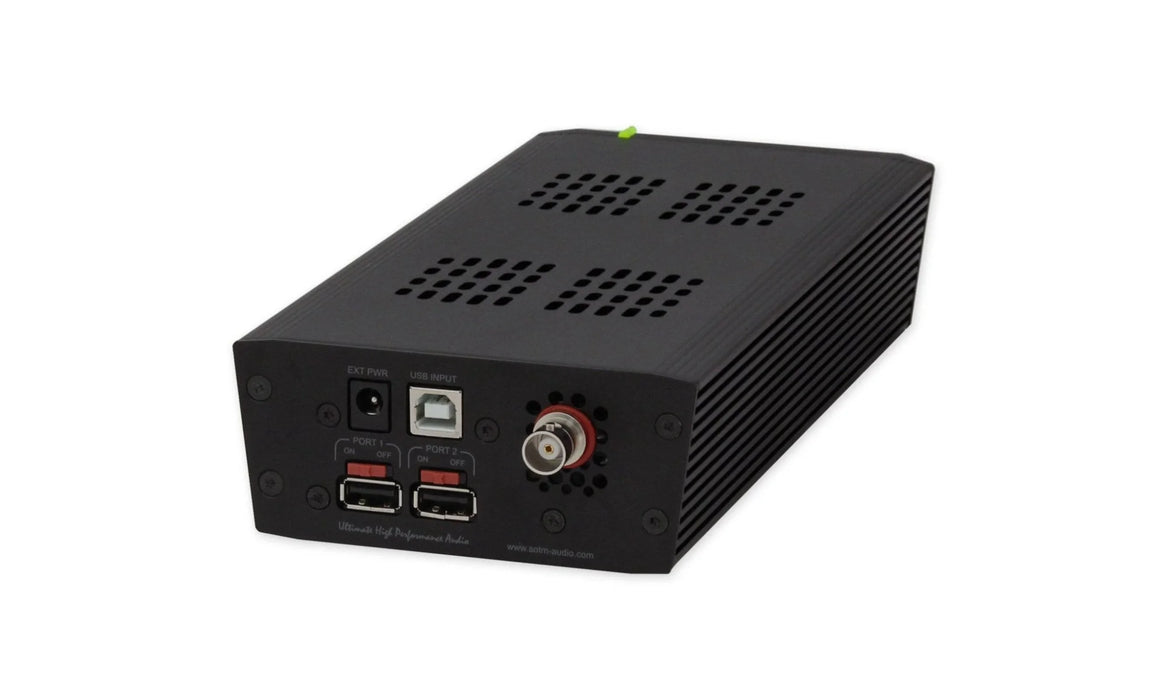

USB host interface
  Type B USB connector
USB output Ports
  Type A USB 2.0 connector x 2
  USB power on/off switch
USB interface chip set
  USB 2.0 Compliant HUB controller
  HS(480 Mbps), FS(12 Mbps), LS(1.5 Mbps) support
Internal reference clock
  sCLK-EX12 board
External master clock input : Optional
  Input frequency : 10MHz
  Isolated clock input
  50Ω BNC connector x 1
Power regulation circuit
  Custom designed ultra low noise regulator circuit x 5
  Standard ultra low noise regulator circuit x 1
  Active noise canceler circuit
External power input
  Input voltage : 9Vdc(Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc)
  Input current : 2A max
  5.5mm OD, 2.1mm ID adaptor jack
USB port output power
  Output voltage : +5.0V(+0.5V, -0.25V)
  Over current protection : 0.8A at 20°C
  Recommend output current : 0.5A >
Operating environment
  Operating temperature : +10 ~ +30℃
  Storage temperature : 0 ~ +40℃
  Operating & storage humidity : 10% ~ 90%
Dimension
  106 x 48 x 227(mm)
Weight
  1.5Kg >



Variants

  • Basic - USB Regenerator with Master Clock
  • SE-C - USB Regenerator with Master Clock + EMI + Copper Wiring
  • SE-L - USB Regenerator with Master Clock + EMI + Silver Wiring
