Silent Angel Munich M1T v2 Streaming Transport | The Audio Co.

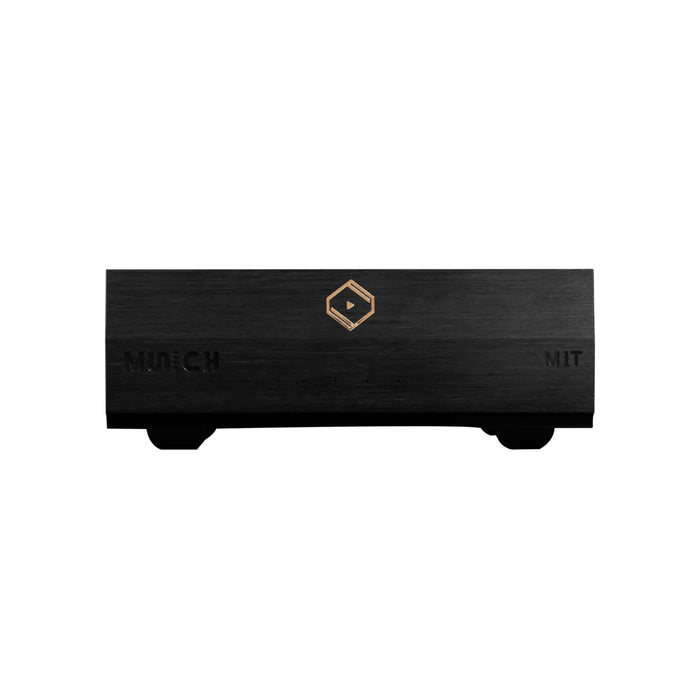

Silent Angel Munich M1T v2 Streaming Transport

by Silent Angel
Sale Sale
₹ 89,990
₹ 89,990 - ₹ 89,990
₹ 89,990
₹ 77,990
₹ 77,990 - ₹ 77,990
₹ 77,990

Taxes & Shipping Included

Variant: M1Tv2 4GB

The Silent Angel Munich M1T is a compact, high-fidelity network music transporter designed specifically for audiophiles who already own an external DAC. Unlike the standard Munich M1, the "T" (Transport) model eliminates the internal DAC and analog stages to focus entirely on delivering a clean, low-noise digital signal to your existing system.

Operating as a "digital bridge," taking in a network connection and outputting pure digital audio to an external DAC, Features a quad-core 1.5GHz ARM Cortex-A72 processor and low-noise DDR4 RAM.

Features
  • Compact size, matches that of the F1 Forester LPS and Bonn N8 Switch
  • Elegant metal enclosure with a solid aluminum alloy front panel
  • High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
  • Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
  • Digital output: AES/EBU, I2S, Coaxial. Sampling rate up to PCM 384KHz & DSD 5.6MHz (DSD128)
  • USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256)
  • Advanced circuitry with high quality components
  • Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
  • A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference
  • Gold plated ports (Coaxial & AES/EBU)
  • Supports Roon, Spotify, AirPlay2, TIDAL Connect, Qobuz Connect and many more streaming services with more added by future updates
  • Support for USB External Storage and NAS drives
Specifications
Available Color Black
Power Consumption 10W at max
Digital Outputs AES/EBU port x 1
I2S port x 1*
Coxial port x 1
- Supports up to PCM 384KHz and DSD 5.6M (DSD128)

* I2S output signal is not compatible with Holo Audio's DAC
* I2S using HDMI cable, not support HDMI protocol.
USB Audio USB Audio port x 1
- Supports up to PCM 768KHz and DSD 11.2M (DSD256)
USB USB 3.0 x 2
USB 2.0 x 1
- Above USB ports are for external storage
M-IO M-IO x 1*
*Reserved. To be enabled by future firmware upgrade
M-LINK M-LINK x 1*
*Reserved. To be enabled by future firmware upgrade
Ethernet 1 GbE RJ45 x 1
Music Format AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE
Gapless Playback Supported
MQA Handling The M1T will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port.
LED Indicator Mute LED x 1
Power LED x 1
Digital Output LED x 2*
*Yellow light on when in DSD format / Green light on when in PCM format
Temperature Operating: 32 ~ 86 °F
Storage: -4 ~ 158 °F
Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions 6.11(W) inch x 1.99(H) inch x 4.34(D) inch
Weight 2.21 lbs



Support
Apps
  • Android
  • iOS
Reviews & Awards
  • StereoNet
