Silent Angel Munich M1 - Music Streamer

With the success of their Rhein Z1 Server and Bonn N8 Switch, Silent Angel have established themselves as a player in the Digital Audio Streaming scene. For 2021 they have launched the Munich M1 Series Music Streamers which feature a heady mix of features that tick many a box for the audiophile and music lover alike.

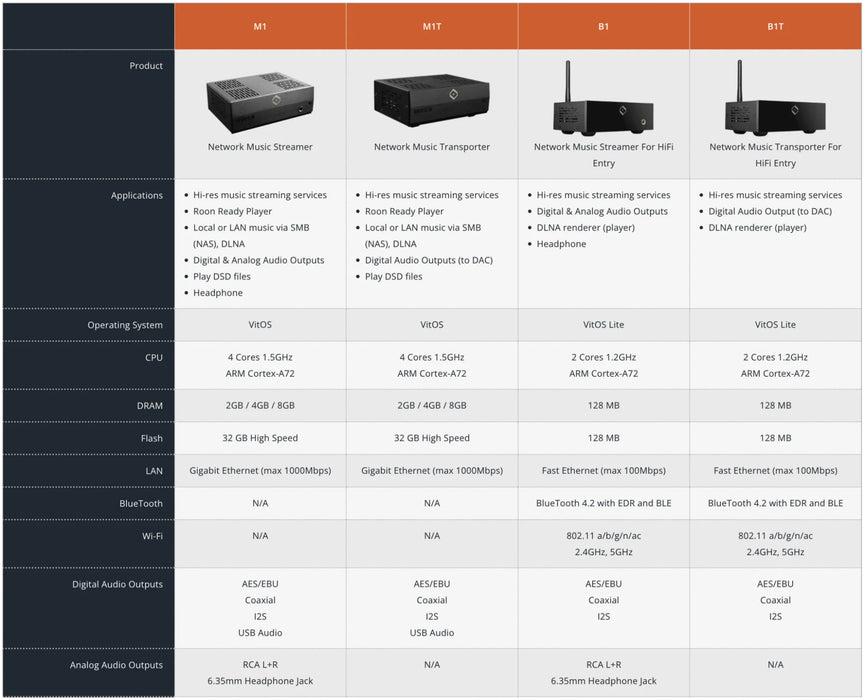

Available in two main variants M1 and M1T, the M1 is perfect for those looking for a flexible, compact streamer with an inbuilt high quality DAC. While the M1T is meant for those that want to add a Streaming transport only to their favourite DAC.

Features

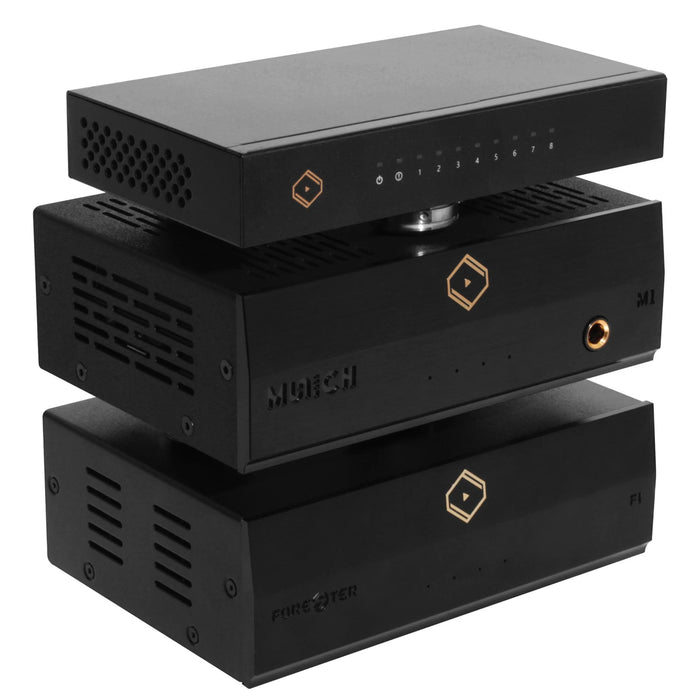

• Compact size, matches that of the F1 Forester LPS and Bonn N8 Switch
• 4 Core 1.5GHz ARM Cortex-A72 processor ensures fast processing
• Supports Roon, Spotify, AirPlay2, TIDAL, Qobuz and many more streaming services with more added by future updates

• Support for USB External Storage and NAS drives
• ESS SABRE 9018Q2M DAC ensures class leading sound
• DSD, MQA Support
• 6.3mm Headphone Output
• Fan-less cooling main board design, specialised heat-sink lowering 20˚C working temperature

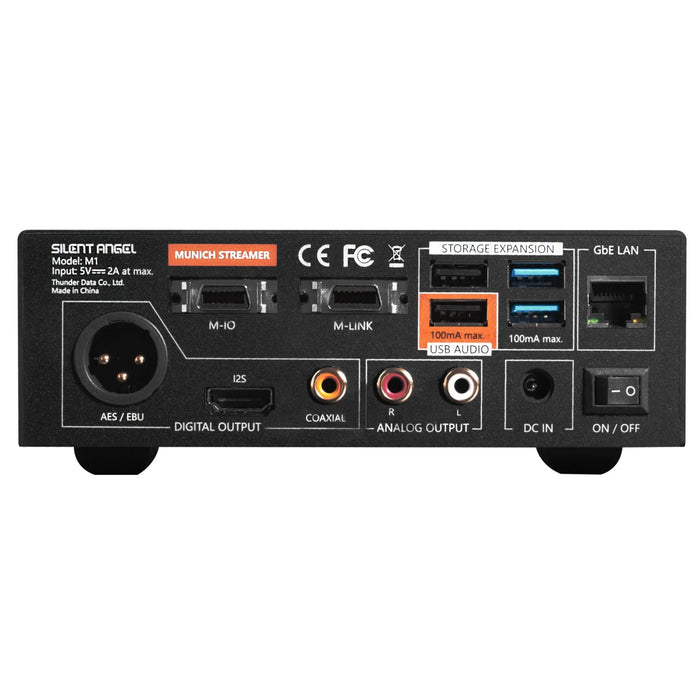

• AES/EBU, I2S, Coaxial digital output


Specifications

• 2Vrms THD+N : 0.00134 / 0.00164%
• Frequency response : 20Hz ~20KHz+- 0.5dB
• SNR : 108dB

Digital Audio Path Processor

• AES/EBU, I2S, Coaxial digital output supports up to PCM 384KHz and DSD 5.6M (DSD128)​

USB Audio

• Up to PCM 768KHz and DSD 11.2MHz (DSD256)

Extension

• USB3.0x1,  USB2.0x2 for extra storage, and M-IO, M-LINK for peripheral access

​Dimensions

• 155x50.4x110mm

Headphone Output

• 6.35mm headphone jack(33 Ohm)
• 1mW, THD+N : 0.0035%
• Max : 375mW THD+N : 0.002% (590 Ohm)
• Max : 27.5mW, THD+N : 0.0015%

​Processing

• CPU (4 Core 1.5GHz ARM Cortex-A72)
• DRAM (Low-noise DDR4) 2/4/8GB
• ROM (High-speed 32GB Flash)

Support

• Manual
• Datasheet

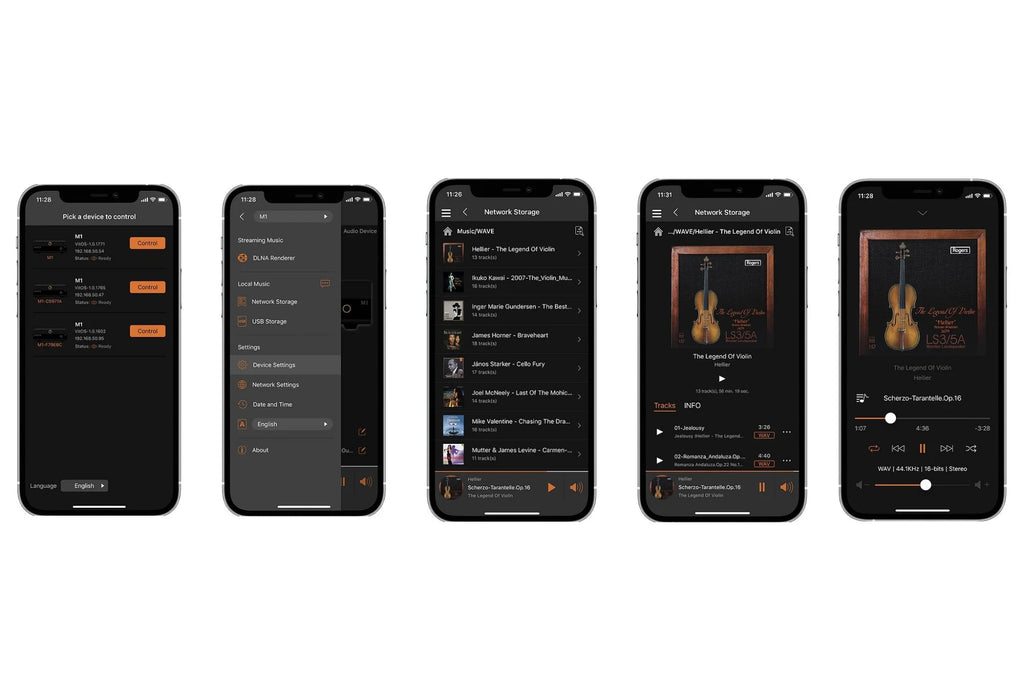

Apps
