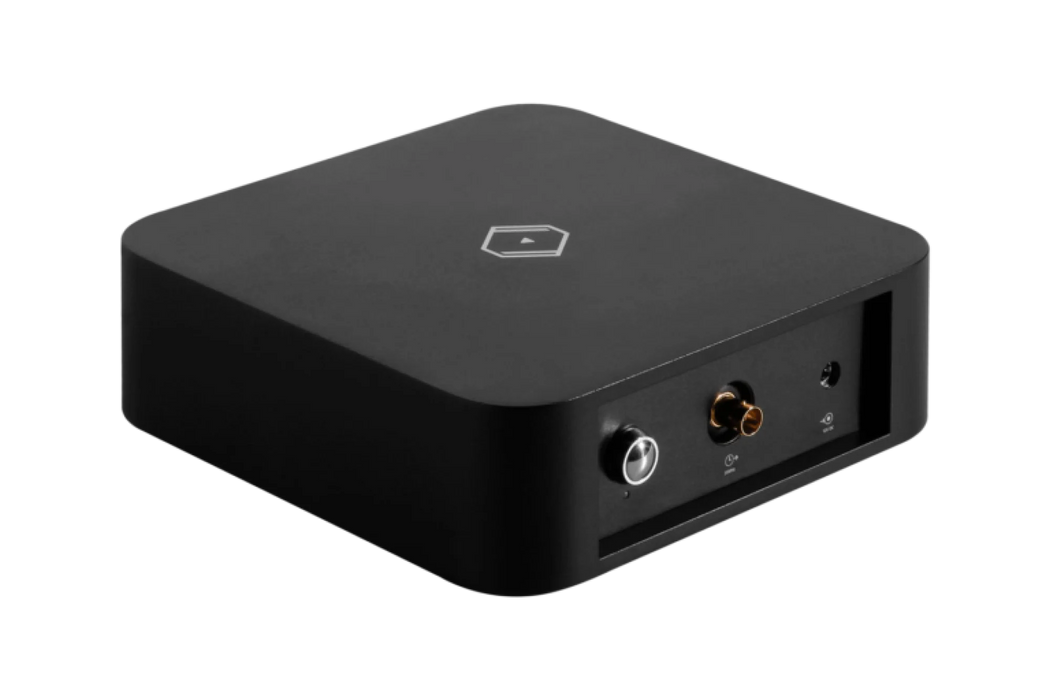

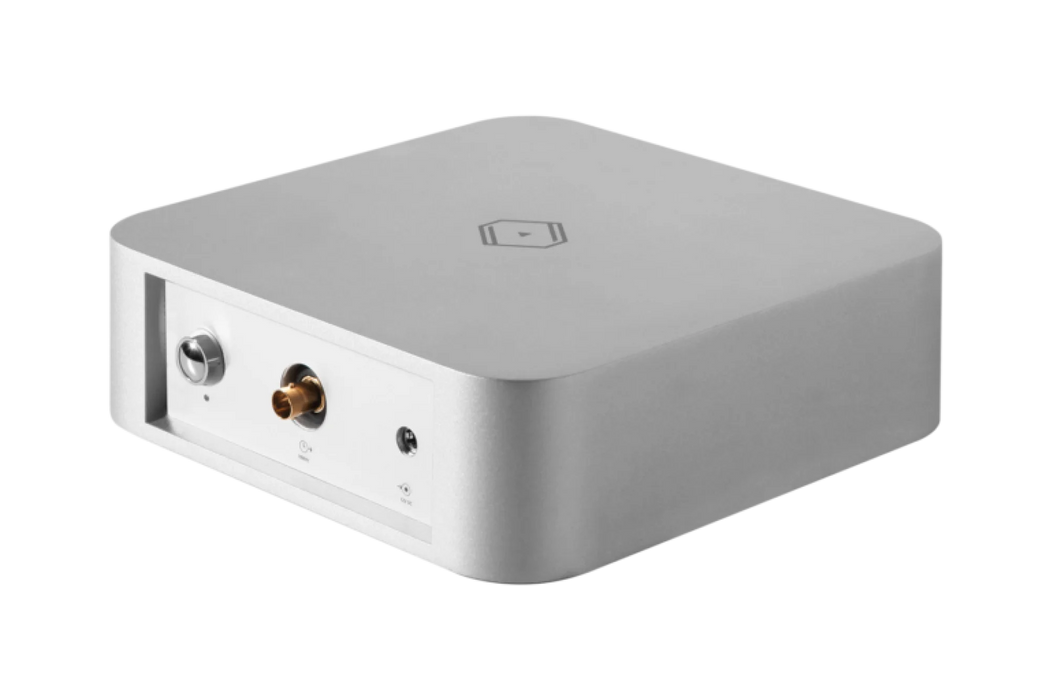

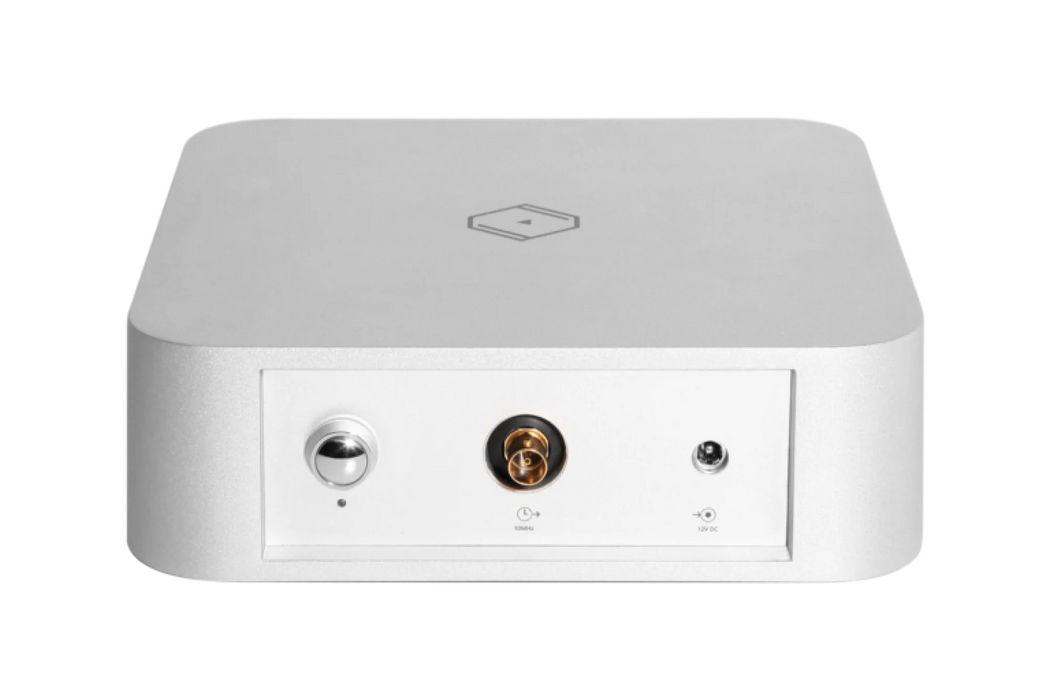

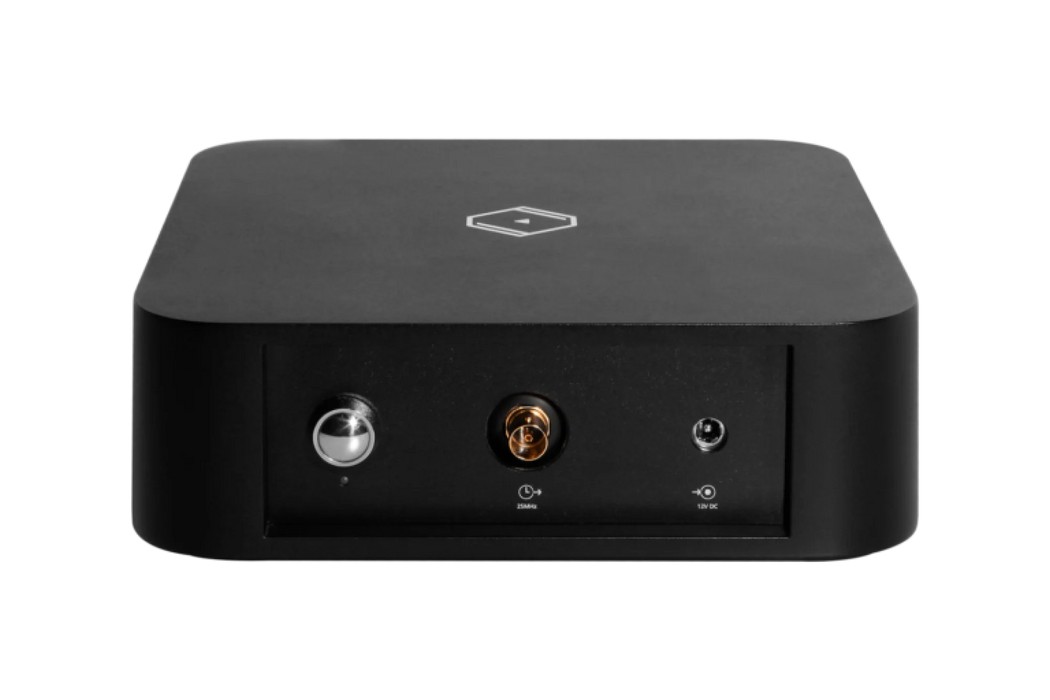

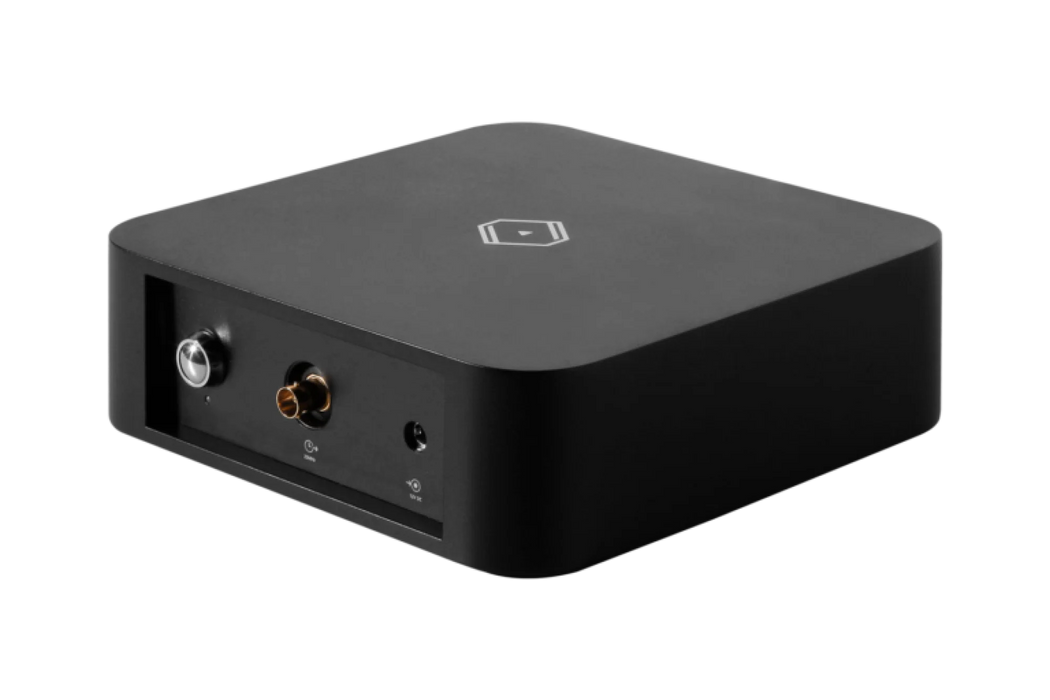

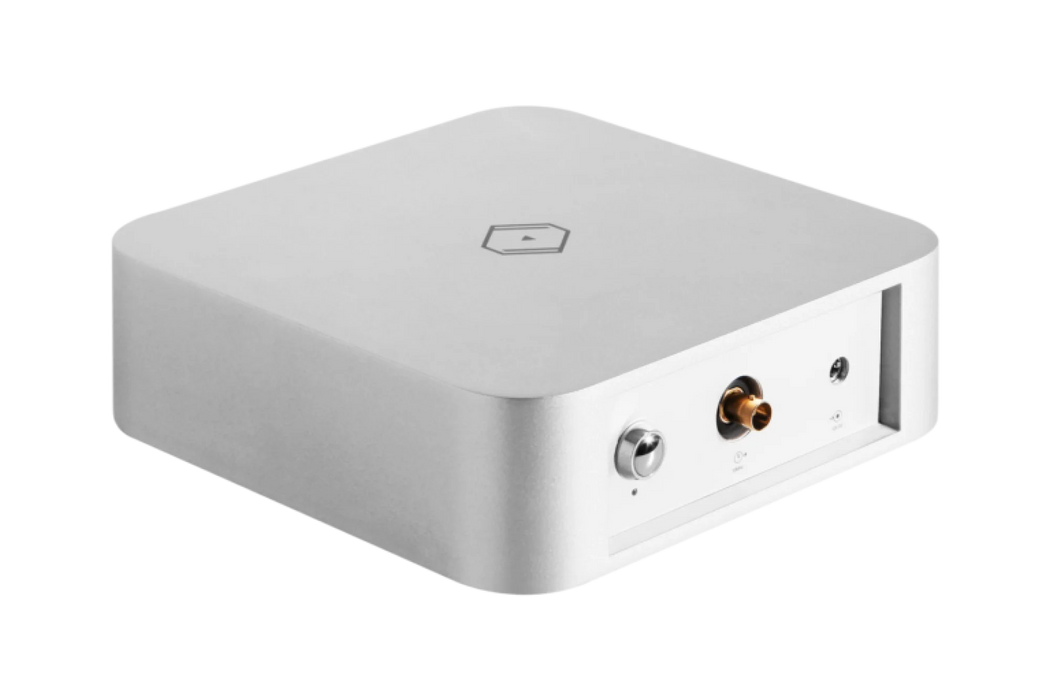

Silent Angel Genesis GC Audio Grade Reference Clock
Taxes & Shipping Included
Focused on Enhancing Listening Environment Precision, the Genesis GC clock enhances audio quality by utilizing a premium clock source and Silent Angel’s proprietary ultra-low noise, high precision, and low phase error HiFi-grade clock technology.
Designed for Precision, Focused on Listening Environment
Tailored Precision for Optimal Hi-Fi Performance, In digital listening environments, 10MHz remains the most common word clock frequency, but more audiophiles opt for the 25MHz frequency, optimized for audio and networking devices. Genesis GC offers a choice between 25MHz or 10MHz, allowing you to select the best clock frequency for your setup. It delivers exceptional audio performance for your Hi-Fi system while remaining a cost-effective upgrade solution.
Isolated for Pure Performance, unlike built-in word clocks that share system resources and face interference, the stand-alone Genesis GC operates independently, delivering a cleaner, more stable clock signal. By isolating it from system noise, electrical pulses, and jitter, Genesis GC ensures unmatched precision and guarantees the purest clock signal, significantly enhancing audio performance.
Features
- Genesis GC features a durable aluminum alloy housing that safeguards against vibration, dust, and noise, guaranteeing exceptional sound quality in any setting.
- Gold-Plated Word Clock Output, the Genesis GC ensures superior signal transmission with enhanced durability. This precision-crafted connection delivers the purest clock signal and provides even greater stability for your audio system, ensuring a flawless listening experience.
- Advanced TCXO Circuit Design for Reduced Digital Signal Noise, Temperature Compensation Crystal Oscillator clock circuits significantly reduce network latency and jitter, minimizing digital signal noise for superior audio clarity. Combined with a class-leading radar-grade switching power supply module, designed exclusively for noise-sensitive acoustic equipment, it delivers a stable, ultra-low ripple power source, ensuring optimal performance.
Specifications
| Available Color | Black, Silver |
| Clock Option | 10MHz, 25MHz |
| Power Input | (DC) 12V/1A, 1.2W (5.5mm x 2.5mm connector) |
| Clock Output Port | 1 Port (BNC, gold-plated) |
| Clock Output Port Impedance | 50 / 75 ohm auto-detection (default is 50 ohm) |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 200(W) * 62(H) * 200(D)mm 7.88(W) * 2.45(H) * 7.88(D) inches |
| Weight | Net: 2.8kg (6.18lbs) / Gross: 3.6kg (7.94lbs) |
| Certificate | CE, FCC, PSE |
