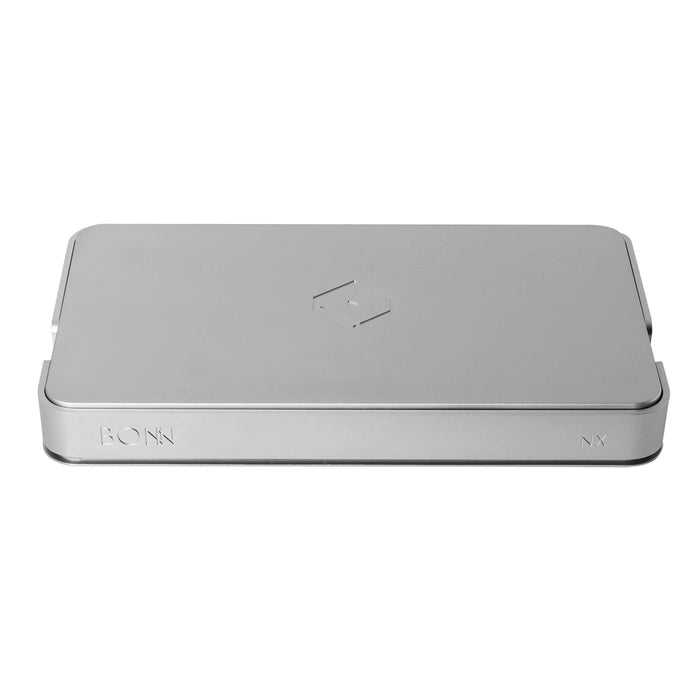

Silent Angel Bonn NX Audiophile-Grade Network Switch
The Ultimate Audiophile-Grade Network Switch, The Silent Angel Bonn NX Audiophile-Grade Network Switch is designed to improve your audio experience with its advanced technology and high-quality components. Experience improved sound quality, reduced noise, and increased efficiency with this powerful network switch.
Silent Angel employs an uncompromising approach towards designing and executing electronic circuits. Isolating, filtering and reducing noise preserves the integrity of the source and delivers a pure signal to connected components. As with all Silent Angel products, our objective is to ensure the device operates at a stable system voltage, sends precisely timed packets and reduces extraneous output noise.
We have found that even the smallest enhancement can slightly improve sound quality and the implementation of many small enhancements can unleash the ultimate potential of High Resolution Streaming Networks. Bonn NX is the culmination of everything we have learned about engineering Audio-Grade Network Switches: it delivers the highest sonic performance currently available.
Features
- Eight richly gold-plated Gigabit Ethernet Ports feature critically spaced ports calculated to minimize potential signal interference.
- Class-leading Radar-Grade internal switching power supply module, a technology exclusive to noise-sensitive acoustic equipment.
- Perfectly timed data transmission.
- TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.
- Brand new chassis design consists of two layers of different, carefully chosen materials: the inner layer is galvanized steel while the outer layer is thick, high-quality aluminum alloy. This extravagant construction maximizes shielding and control of eddy currents while damping vibration and noise. Sleek modern design adds great aesthetic appeal, making Bonn NX a functional work of audio art.
- 12V DC power jack bypasses the internal switching power module, enabling connection to an external linear power supply (Forester) for a significant performance upgrade.
- Gold-plated ground connection terminal provides further noise reduction.
- LED light switch enables users to turn off the port status indicator.
- Class-leading clock receiving module allows external clock input.
The Bonn NX creates a dedicated HiFi zone to effectively isolate your audio devices from other digital traffic, thereby eliminating noise and transmitting data with extreme timing accuracy. Implementing an isolated “Network Ecosystem” for audio eliminates degradation from the storm of network interference and latency issues caused by bandwidth-intensive activities from PCs and other connected devices.
Exclusive Clock Module, TCXO: Silent Angel’s TCXO (Temperature Compensation Crystal Oscillator) is more precise than the Crystal Clocks found in other network switches, lowering latency issues and jitter effects.
Jitter Effect Improvement: Distortion is a common byproduct of transmitting high-frequency network packets. Bonn NX lowers jitter to 369ps whereas typical switches present at 705ps.
Optimized For Music Applications
- Optimized for Roon infrastructure. e.g. Serve a network composed of Rhein Z1 as a Roon Core server, and Munich M1 as Roon Ready players.
- Optimized for high-resolution streaming services such as Tidal, Qobuz, Spotify and more.
- Optimized for playing music collections from NAS (Network Attached Storage), works well with multiple brands such as QNAP, Synology, WD NAS.
Specifications
| Available Color | Black, Silver |
| Power Input | IEC (AC) 100-240V, 50/60Hz (DC) 12V/1A (5.5mm x 2.5mm connector) |
| Ethernet Port | Gold-plated 1GbE RJ45 port x 8 |
| Interface | Clock input switch x 1 (external/internal) - BNC interface 25MHz external Word Clock - Silent Angle specialized TCXO clock module LAN port LED indicator switch x 1 - Control the on/off status of LAN port LED Grounding Port x 1 - Connect to a ground box to make the signal quality more purer and precise without interference |
| LED Indicator | AC Power LED (green) x 1 DC Power LED (green) x 1 LAN Port Status LED x 8 - Light on when linked; Flash when it's active - Green: 1000Mbps; Amber: 100Mbps |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 17.29 (W) x 2.49 (H) x 9.95 (D) inch 439 (W) x 63 (H) x 250 (D) mm |
| Weight | 14.34 lbs / 6.4 kg |
