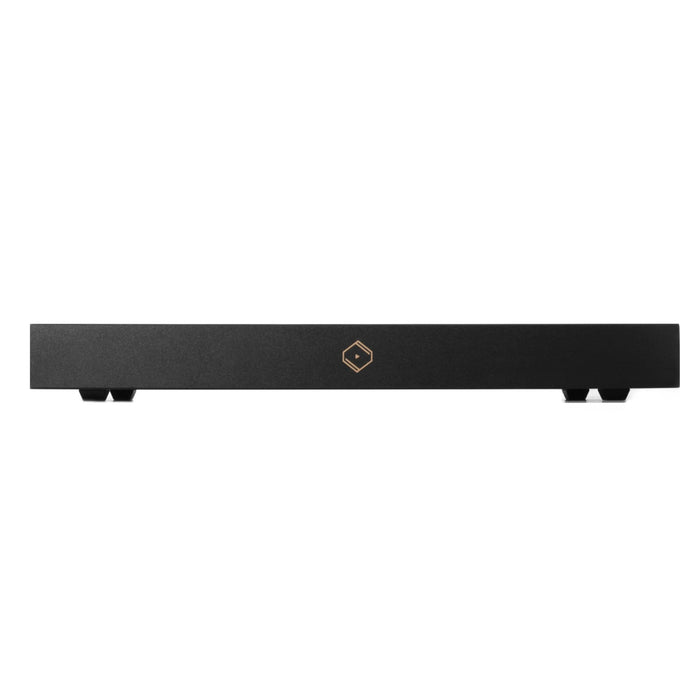

Silent Angel Bonn N8 Pro - Audiophile-Grade Network Switch

Original price ₹ 137,990 - Original price ₹ 137,990
Original price ₹ 137,990
₹ 137,990
₹ 137,990 - ₹ 137,990
Current price ₹ 137,990
Variant: Bonn N8 Pro

Bonn N8 Pro is born for music lovers who want to build the ultimate HiFi network and pursue the purest audio quality possible.  The Bonn N8 Pro creates a HiFi audio zone to effectively separate your audio devices from household traffic. Eliminates noise, transmits the highly accurate timed data, reduces the impact from network broadcasting storm and latency caused by bandwidth-intensive activities from PC and other devices.

Through the network signal quality improvements from Bonn N8 Pro, it introduces significant improvement in music streaming playback through streaming service or NAS.

Features

  • Eight gold-plated enclosed Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.
  • Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.
  • Perfectly timed data transmission.
  • TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.
  • An additional DC power jack (12V) to bypass the internal switching power module and to connect an external linear power supply for upgrade.
  • A gold-plated ground connector (banana terminal) for a grounding box to further lower power noise.
  • LED light switch which enables users to turn off the port status indicator.
  • Class-leading clock receiving module for an external clock input.



Exclusive Clock Module, TCXO: Silent Angel’s 0.1ppm TCXO (Temperature Compensation Crystal Oscillator) is 50 times more precise than a general Crystal Clock, lowering latency issues and jitter effects.

Jitter Effect Improvement: When transmitting high-frequency network packets, distortion is a common effect. Bonn N8 Pro is effectively able to lower this to 369ps whereas other general switches present at 705ps.

Optimized For Music Applications

  • Optimized for Roon infrastructure. e.g. Serve a network composed of Rhein Z1 as a Roon Core server, and Munich M1 as Roon Ready players.
  • Optimized for high-resolution streaming services such as Tidal, Qobuz, Spotify and more.
  • Optimized for playing music collections from NAS (Network Attached Storage), works well with multiple brands such as QNAP, Synology, WD NAS.

Support

Specifications

Available Models - N8 PRO (without external World Clock input)
Colour Black
Power Input IEC (AC) 100-240V, 50/60Hz
(DC) 12V/0.8A at max
Power Consumption 10 Watt at max
Ethernet Port Pure gold-plated 1GbE RJ45 port x 8
Interface Clock input switch x 1 (external/internal)
- BNC interface 10MHz external World Clock
- Silent Angle specialized TCXO clock module

LED indicator switch x 1
- Control the on/off status of LAN port LED

Grounding Port x 1
- Connect to a ground box to make the signal quality more purer and precise without interference
LED Indicator Power LED (Green) x 1 at the front panel
Port Status LED x 8 (Light on when linked; Flash when it's active) at the rear panel)
Green: 1000Mbps; Amber: 100Mbps
Temperature Operating: 32 ~ 86 °F
Storage: -4 ~ 158 °F
Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions 17.37 (W) inch x 2.05 (H) inch x 6.89 (D) inch
Weight 5.74 lbs
