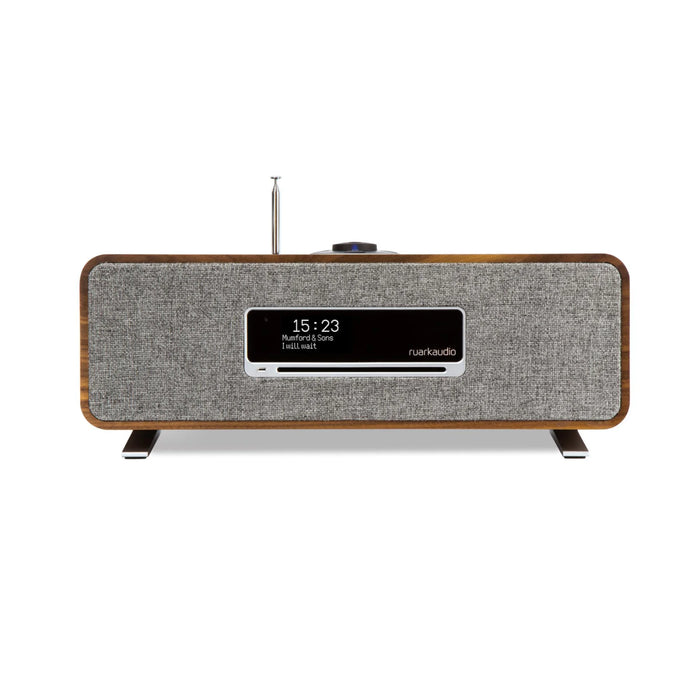

Ruark R3S Compact Music System

Pull up a chair, take the weight off your feet. Stream something new or find those CDs you thought you had forgotten about and listen to something from a while back. The memories, in high definition detail, come flooding back. With the Ruark R3S it’s time to discover again the music you love and just how enjoyable and relaxing listening can be through a system that will enhance your home and life.

Building upon its already impressive performance for 2023, R3 has been further refined and is now named R3S. Outwardly R3S retains the same beautiful compact design with its acoustically tuned handcrafted cabinet and high contrast O-LED display, but inwardly R3S features a powerful new processor and revised circuitry to deliver slicker performance and an even more engaging sound.

Driving the system is a dynamic High Fidelity amplifier combined with our custom NS+ drivers and for R3S we've now included STEREO+ sound processing which we developed for our limited edition R5 Signature. This creates a broader soundstage with depth and realism that extends way beyond R3S’s compact stature. Whatever your taste in music, R3S will fulfil the needs of even the most discerning listener.

R3S directly supports key streaming services including Spotify Connect*, Amazon Music and Deezer, and with its latest generation Bluetooth 5 receiver every other streaming service available. Bluetooth 5 provides excellent sound quality with a more robust and efficient connection meaning that connected devices will run longer without needing a recharge. The Bluetooth function also seamlessly integrates with the volume control on phones and tablets, so when volume is adjusted this also shows on the display of R3S.

Radio is evolving and with its SmartRadio tuner R3S will maximise your enjoyment of this timeless medium. DAB/DAB+ and FM tuners provide access to local and national broadcasts and its Internet Tuner allows you access high quality streams and stations world-wide. In addition with the growth of Podcasts, R3S now has a source dedicated to this increasingly popular format. For listen again shows and whatever your interest, a podcast to suit your taste is only a few clicks away using our slick RotoDial controller or supplied IR remote. Also available is a free Android and iOS control app called Oktiv. This also allows full control of R3S and is particularly useful for searching Internet radio stations and podcasts.

CD is still a great way to enjoy music and with its high specification player, R3S allows customers to reconnect with their CDs and rediscover the fun of browsing cover art and liner notes. Alongside standard CDs, R3S also plays homemade CDs encoded with WAV and MP3 files and will display track and artist data if this information is available on the disc.

On the rear panel we've included a USB-C playback and charge port, a headphone output and switchable analogue and digital inputs so devices such as a Turntable or TV can be easily connected. For film buffs and lovers of bass orientated music, the line outputs can be switched so they can be used for connection to an active subwoofer. Our own RS1 subwoofer is a perfect match for R3S adding an extra level of dynamic realism to its already impressive sound.

• Frequency response 40Hz – 20kHz
• Drivers 2 x 75mm Ruark NS+

• Amplifier 30W

• Enhancements Bass, treble, loudness, 3D audio

• Cabinet type Tuned bass reflex enclosure

• DAC/ADC up to 24-bit 192kHz

• Display High-contrast OLED

• App control UNDOK (iOS & Android)

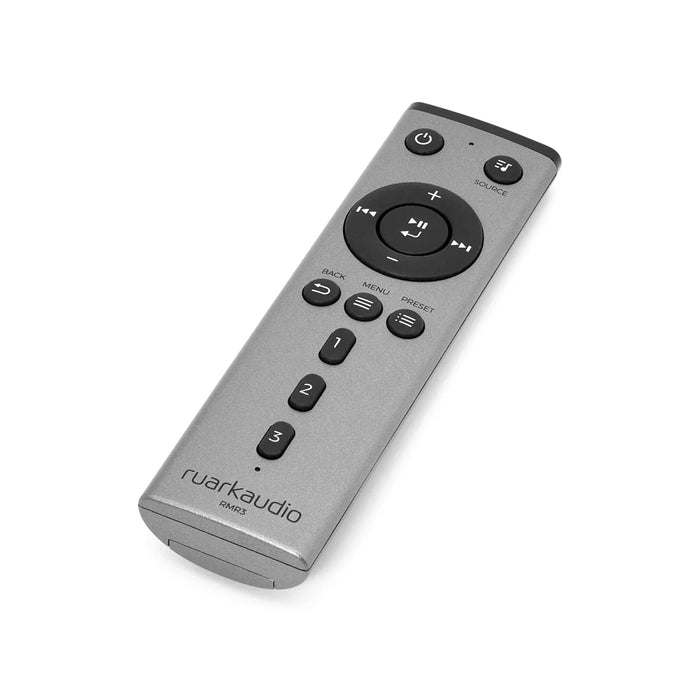

• Remote control Infrared

• Dual Alarms Daily, once, weekends, weekdays

• Auto standby Automatic power saving mode

• Adjustable input levels Line in, optical

• USB Type-C charge port 5V 1A (5W)

• Real time clock with internal battery backup
• Software Updates: Via over-the-air or USB if required
• User Interface Languages: Multilingual

• Radio DAB/DAB+, FM with RDS (87.5-108MHz) and Internet Radio

• Radio presets 8 presets per mode

• Bluetooth V5.2 SBC, BLE, A2DP

• Wi-Fi 802.11b/g/n, WPS2 setup, WEP, WPA & WPA2

• Music services Spotify Connect, Deezer, Amazon Music

• CD support CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320 Kbps

• Line-in Stereo RCA input (max 2.3Vrms)

• Optical input TOSLINK digital input (24-bit 192kHz)

• Sub-out/Line-out RCA (2.0Vrms)

• Headphone 3.5mm jack, 25mW into 16-32 Ohm

• USB 2.0 Type-C Fat32 flash drive compatible

• MP3 playback up to 48kHz 320kbps

• Aerial Removable telescopic

• Aerial connector 75Ω F-type connector

• Finishes Rich walnut veneer or soft grey with grey woven grille fabric
• Remote batteries 2 x 1.5V AAA
• Box contains R3S Compact Music System, universal power adapter with regional plugs, remote control, remote control batteries, telescopic aerial, aerial spanner, quick start guide
• Power adapter 100-240VAC 50-60Hz input 14VDC 2.85A 40W output, 1.8m cable, 2.1 x 5.5mm DC plug
• Power consumption 1.6W network standby, 5.0W idle
• Product dimensions H167 x W420 x D220mm
• Product weight 5.2kg
• Inner carton dimensions H370 x W600 x D190mm
• Packaged weight 6.9kg
