Pro-Ject Phono Box DC MM/MC Phono Preamp - Phono Preamp

Pro-Ject Phono Box DC MM/MC Phono Preamp

by Pro-Ject
₹ 20,000 - ₹ 20,000
₹ 20,000
₹ 20,000
₹ 20,000 - ₹ 20,000
₹ 20,000

Taxes & Shipping Included

The Pro-Ject Phono Box DC is a classic, versatile sound-first design that is an undeniable bargain. First and foremost, it’s designed to preampflify the phono signal in a clear, low-noise fashion with impressive depth & imaging for a stage in this class. Top-notch circuitry minimizes distortion and heightens RIAA equalization accuracy for gorgeous analog reproduction with MM or MC cartridges. Push-button selection between 40db gain (MM, 47k ohm load) and 60dB (MC, 100ohm load) makes Phono Box DC widely compatible, representing a fantastic introduction to the world of moving coil cartridges.

Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,…) of your amplifier.

Features

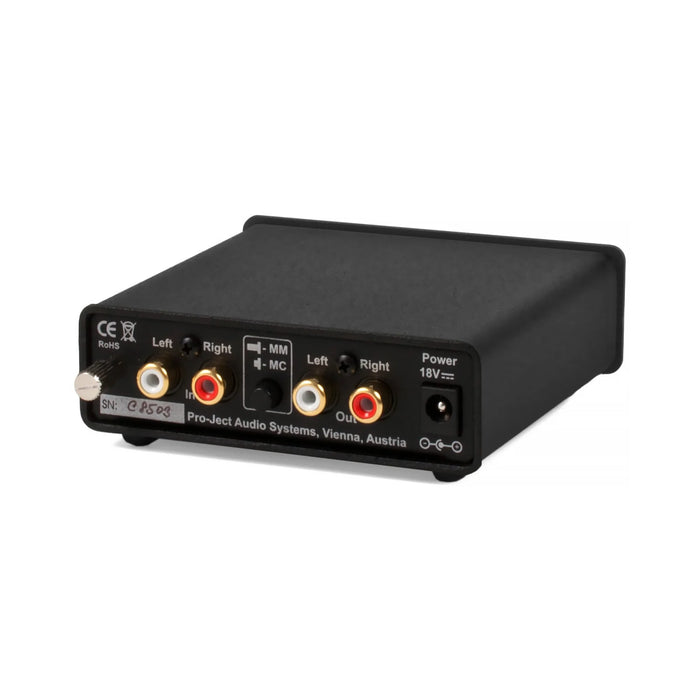

  • Preamplifier for MM or MC with switch on rear panel
  • Best buy classic
  • DC power supply (< 1 watt standby power)
  • Precise RIAA equalisation
  • Low noise ICs
  • Output stage with ultra-low impedance
  • Gold-plated RCA sockets
  • Small size for installation near recordplayer
  • Faceplate available in black and silver

Specifications
Input impedance, MM 47 kohms/120 pF
Input impedance, MC 100 ohms / 120 pF
Gain, MM 40 dB
Output voltage typically 300 mV/1 kHz at 3 mV/1 kHz (MM input)
Gain, MC 60 dB
Output voltage typically 300 mV / 1 kHz at 0,3mV/1 kHz (MC input)
Max. output 9.5V (1kHz)
Noise floor, MM 94 dBA
Noise floor, MC 75 dBA
THD, MM 0,01%
THD, MC 0,05%
RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0,5 dB
Outboard power supply 18V / 200 mA DC, suitable for your country's mains supply
Standby power consumption < 1 watts
Dimensions W x H x D 103 x 36 x 104 (115 mm with sockets)
Weight 570 g
