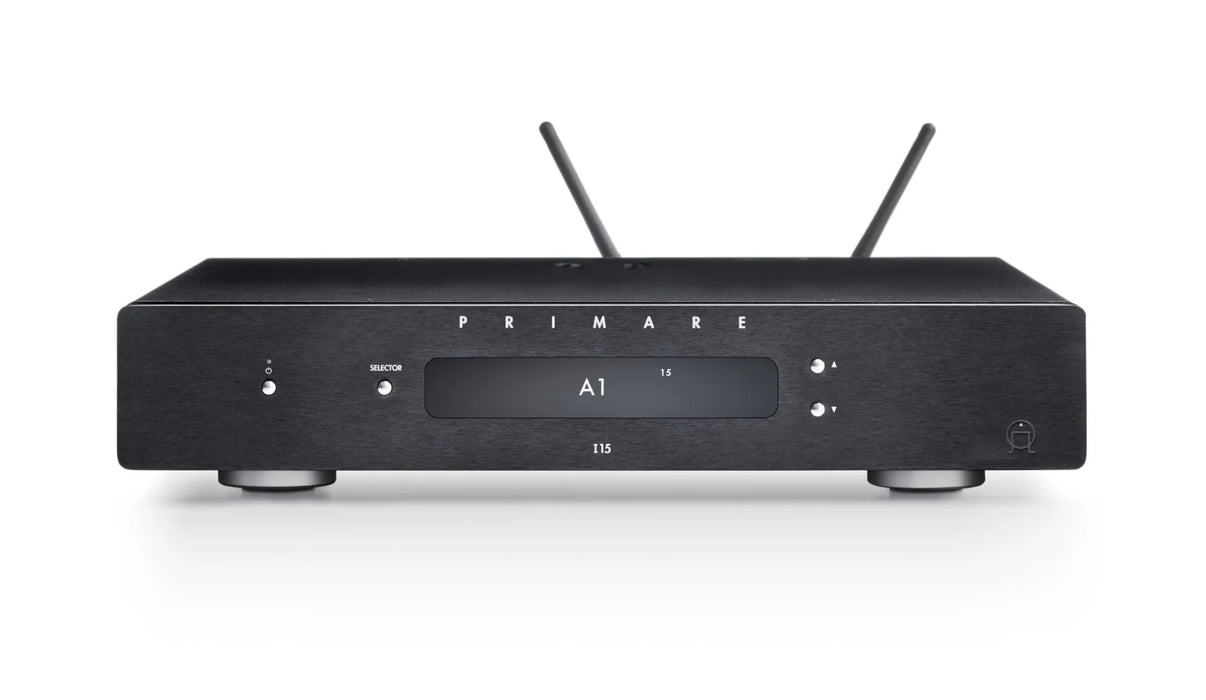

Primare I15 Prisma MK2 Integrated Amplifier

The Primare I15 Prisma MK2 is an award winning compact integrated amplifier and network player providing remarkable power and featuring Prisma music streaming and multi-room/multi-zone functionality; with its three-quarter-sized cabinet, opening up even greater possibilities for providing the highest quality music performance and access to any and every room in the house.

The I15 Prisma MK2 is a compact integrated system control center and amplifier – capable of providing exemplary performance whether the source is analog or digital, stored or streamed, wired or wireless.

Input Section – Carefully crafted input circuitry utilizes relays for input switching providing better isolation and sound than found in more conventional CMOS (Complementary metal– oxide–semiconductor) switches, and improved 2 x 4 channel balanced mode volume control IC selected for optimal channel balance and low listening level performance.

Amplification – The I15 Prisma employs a specially made Hypex UCD102 amplifier module, fed by our custom heavy duty switch mode power supply and carefully crafted analog input stage, provides a dynamic and detailed sound. The large scale mass production of this module allows us to provide the balanced and coherent sound for which Primare has become known at a more reasonable price than can be achieved with our limited production UFPD 2 amplifier module technology found in the larger I25 and I35, and A35.2 amplifiers.

Digital to Analog Conversion (DAC) – In order to allow for playback of virtually any digital source with absolute accuracy and musicality a high performance 32-bit stereo ESS ES9028Q2M reference DAC chipset was selected for the I15 Prisma MK2, which uses the critically acclaimed ESS patented 32-bit HyperStream technology capable of delivering a DNR of 129dB and THD+N of -120db S/N, while supporting up to 384kHz PCM and 256/11.2MHz DSD; performance levels that will satisfy the most demanding system needs and audio enthusiast.

Front Panel Display – the latest generation OLED display technology used in the I15 Prisma MK2 was originally developed for the automobile industry to ensure long life in even the most hostile environments, and improved readability due to greater consistency of colour value and brightness level.

Control Configuration – either from the front panel, C25 IR remote control or Prisma app, the I15 Prisma can be configured to best suit system needs, including:

Inputs can be assigned as a surround sound passthrough for incorporating the amplifier into a home cinema. Auto sense input circuitry can be configured to wake up the I15 Prisma MK2 from standby and automatically select any input source, or if already operating select any source, as it is activated.

Prisma – Network Player and Multi-room Technology

Prisma is a bundle of technologies that provide the broadest range of network music player features and functionality. Essentially created to be a streamer that would allow everyone, and everywhere, in the household to explore, discover, and share the deeply satisfying experience of high-performance music playback – Prisma provides multi-room/multi-zone connectivity and control of stored and streamed media, whether wired or wireless, all managed from mobile devices through the dedicated Prisma system control app.

In addition to control of network connected hard drives using the Prisma application, Prisma includes AirPlay 2, Bluetooth^®, Roon Ready*, Spotify Connect^®, and Chromecast built-in, a unique streaming portal allowing effortless direct connection to hundreds of streaming applications and services, including voice control, for the best possible performance and user experience.

*by future update

We believe that every aspect of our products – the way they look, the satisfying feel of the controls – contributes to the overall experience of living with Primare. As a result, Primare products exude the hallmarks of Scandinavian design – simple, elegant designs, with approachable and easy to understand functionality.

An example of this is the idea of being inconspicuous, of not drawing undue attention, which is inherent in the physical design of the I15 Prisma MK2, both in its compact size as well as minimal display and button array providing all the information and control necessary; simply and elegantly.

Features

• Stream hundreds of music services using familiar apps and devices, including high resolution platforms like Qobuz, Spotify, and Tidal HiFi
• Complete control of network connected hard drives using the Prisma application
• Advanced input, output and control options to satisfy virtually any system needs, including voice control and Roon media management software
• Powerful amplification and sophisticated DAC sections deliver every detail and nuance with power and precise control

Specifications

• Output power 2 x 60W/100W 8/4 ohms
• DAC ESS ES9028Q2M
• RCA 1 x stereo analog pair
• 3.5 mm 1 x stereo analog/digital
• RCA 1 x digital input
• Toslink x 3 digital inputs
• USB-B 1 x digital input
• RCA 1 x stereo pair variable analog output
• RCA 1 x digital output
• C25 remoteIR system control
• IR3.5 mm in/out
• RS232 outboard system control port
• 12V Triggerout
• Prisma connectivity and control
• USB-A x 1
• Ethernet x 1
• WiFi
• AirPlay 2
• Bluetooth
• Chromecast built-in
• Spotify Connect
• Dimensions 350 x 73 x 329 mm (WHD)
• Weight 6.4 Kg
• Finish black or titanium

Support

• Design Brief
• Manual
