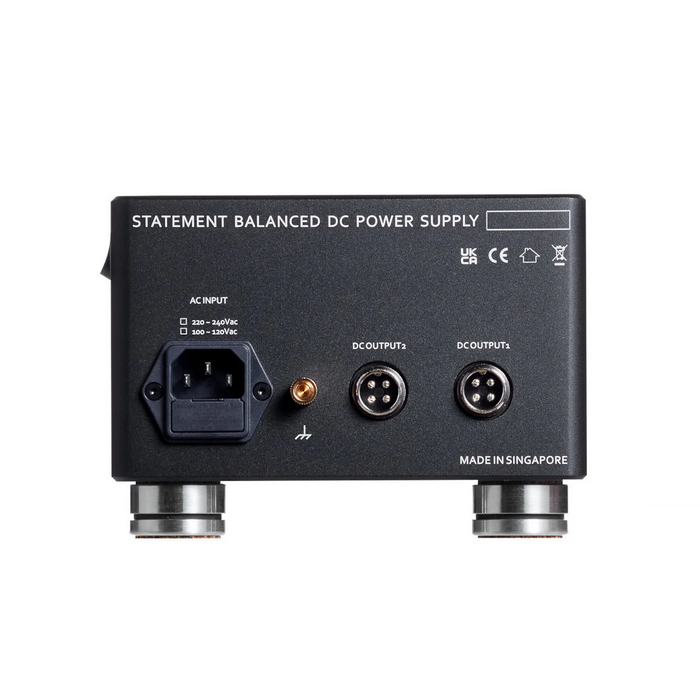

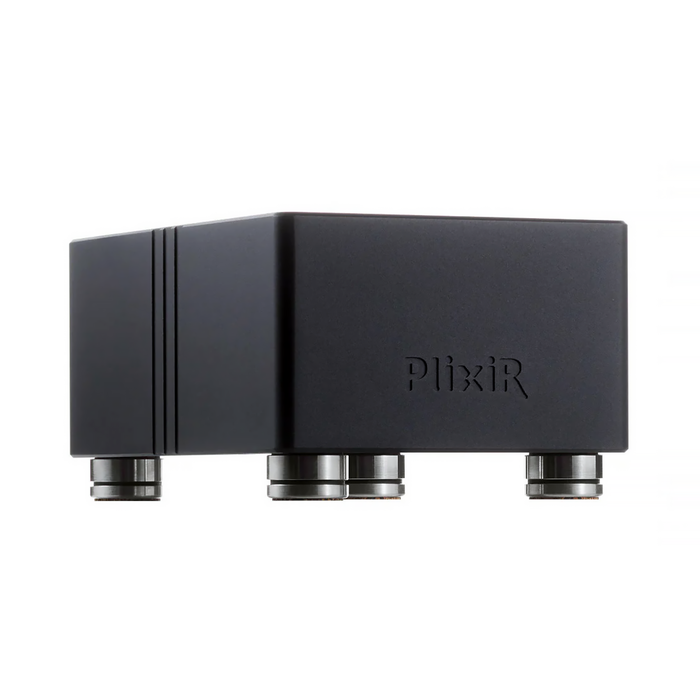

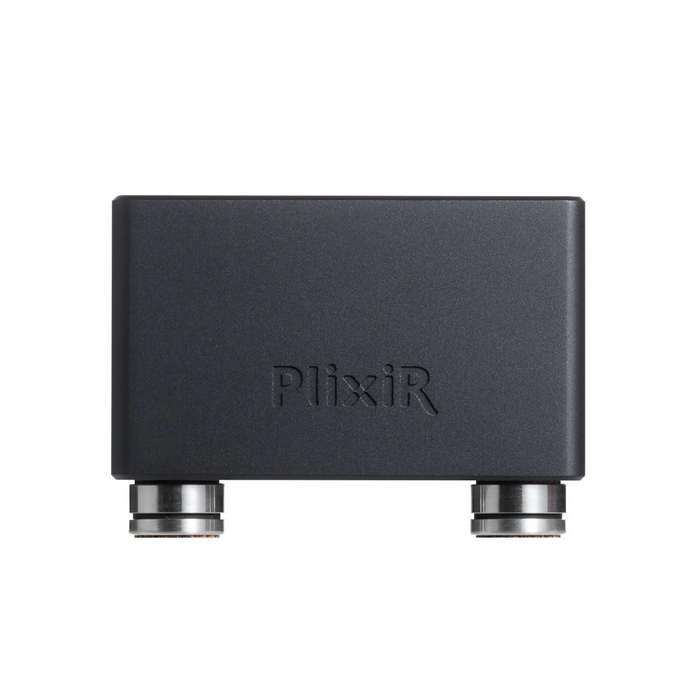

Plixir Statement BDC Balanced DC Power Supply

by PliXir

₹ 185,000 - ₹ 185,000

₹ 185,000

₹ 185,000 - ₹ 185,000

₹ 185,000

Taxes & Shipping Included

Quantity

The Statement BDC is PLiXiR’s flagship Balanced DC linear power supply. Based on our award winning Elite BDC, our unique 3-stage noise regulation architecture has undergone massive circuit refinements. With new proprietary star+plane ground design, massively increased capacitance (>40%) and improved layout schemes, it has allowed us to further reduce the noise floor (both high frequency and low frequency), the eddy ground loop current and the output impedance for transient current delivery. From the bespoke Noratel Tru-Balanced transformer, the customed German made Bfly Master PRO footer, to the long-awaited ground binding post feature, no efforts have been spared to create the ultimate PLiXiR DC power supply. Neutral. Natural. Details. Focus. Speed. Dynamics. Come and experience the next level PLiXiR sound.

Noratel Transformer

All Statement BDC features the use of our PLiXiR Tru-Balanced power transformer design, customed made for us by Noratel. Featuring a massively oversized transformer core, high purity OFC copper wire, a magnetic shield with vibration absorbing property and other secret tricks from experience, it’s the highest end transformer used in a DC power product to our knowledge.

Bfly Master PRO footer

High-end footers Master PRO footers from Bfly audio are used for all Statement BDC. These amazing German made footers features multi-layer damping with different material for different vibration frequency damping and is solely customed made to our specs. They are mounted loose and free without stress, so that the statement BDC performance will be maximised when placed onto the surface.

Casing

Extruded, 5mm-thick aluminium casing body. Thick metal top and bottom plates provide an ultra-rigid casing that guards against the sound-degrading effects of mechanical vibrations and protects the transformer from external damage.

Premium Components

Selected premium components including ultra-low-impedance capacitors, high-current connectors and high-purity copper cables.

Handcrafted

All PLiXiR products are handcrafted in Singapore. The ability to control all aspects of the PCB and product assembly allow us to fully optimise the performance and sound for all PLiXiR products. Each product is uniquely made. No cookie cutter process which focuses on production quantity but sacrifice performance is allowed here. We exist to make good products, not more products. The final tuning is done by James Soh, the founder, for the PLiXiR sound.

Specifications

Output: Less than 1mVrms residual noise at DC output.
Dual Output. Output 1 + Output 2 = 6 Amps Max Continuous
Output / Input Voltage: Output voltage - 5Vdc, 6Vdc, 9Vdc, 12Vdc, 15Vdc and 19Vdc.
Input voltage – available in 110 Vac or 230 Vac.
Weight in KG: 5.5
Dimensions in CM: 16 x 23 x 11.5 (Length x Depth x Height*)* Height including footers.
Comes With: 2 pieces x 1 meter PLiXiR Elementa DC Power Cable, with a choice of 2.1mm or 2.5mm DC plugs. [For other plug types, please contact us for more information.]
