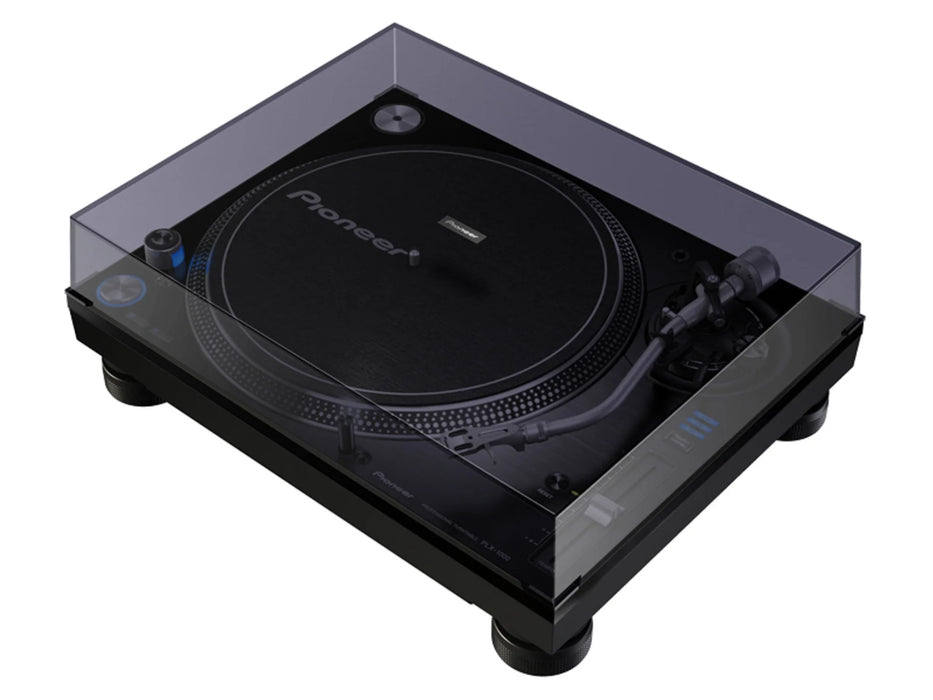

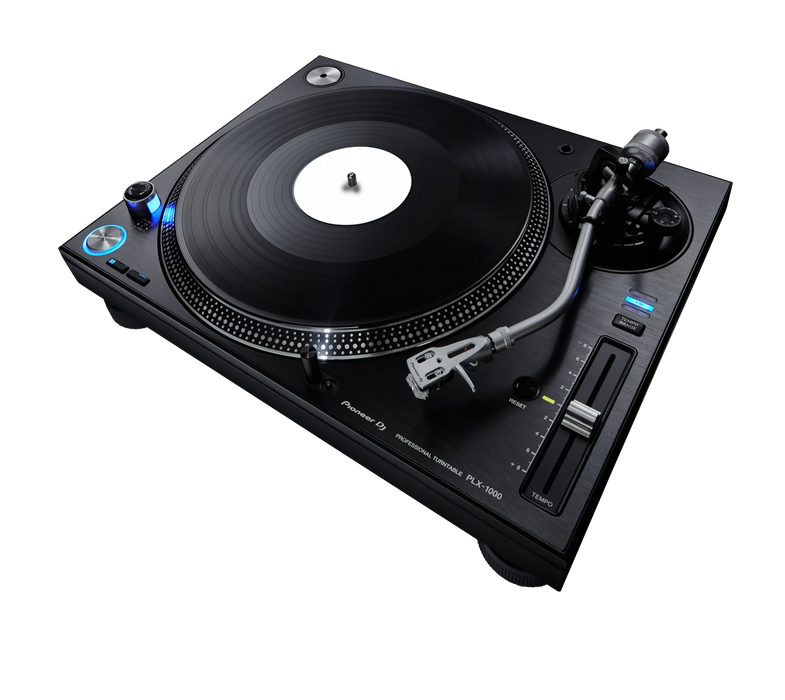

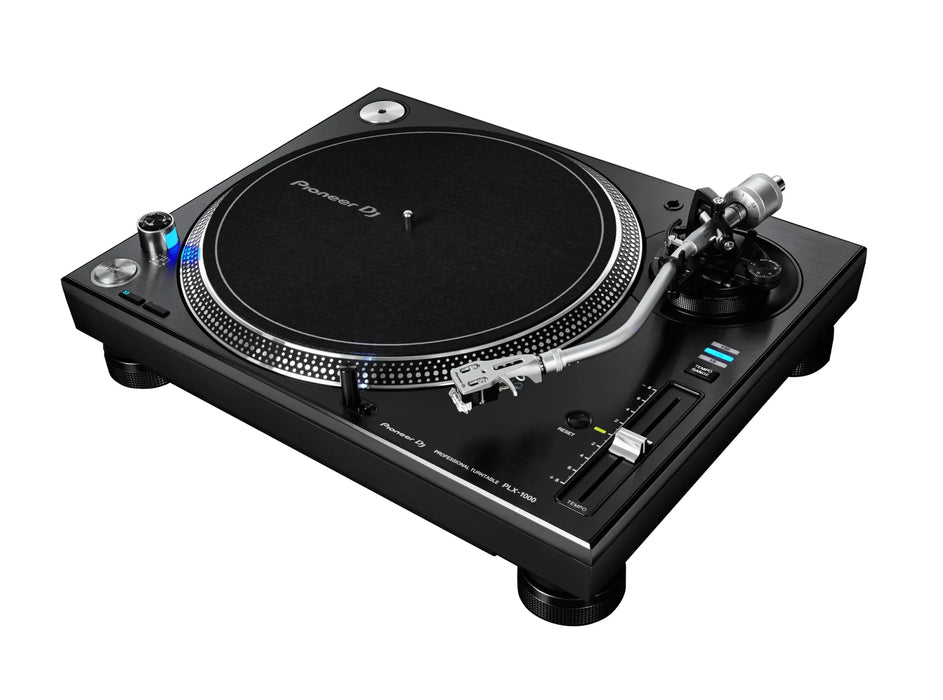

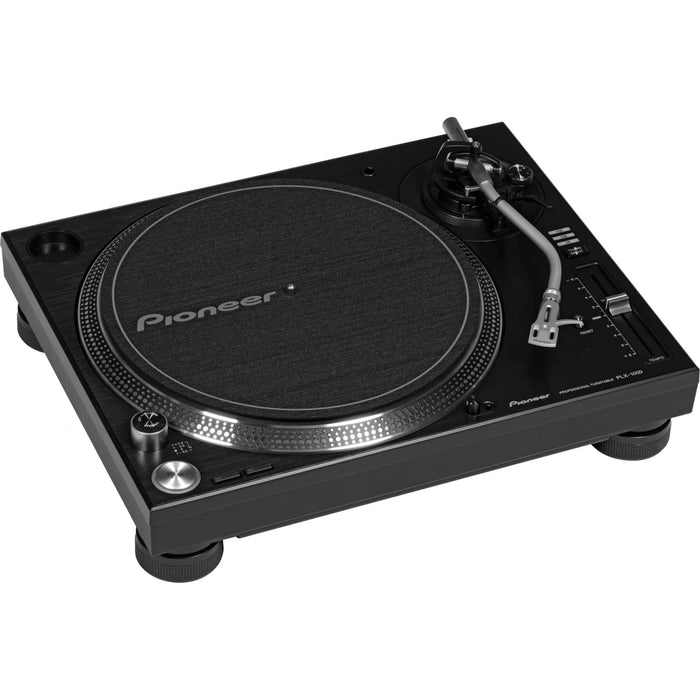

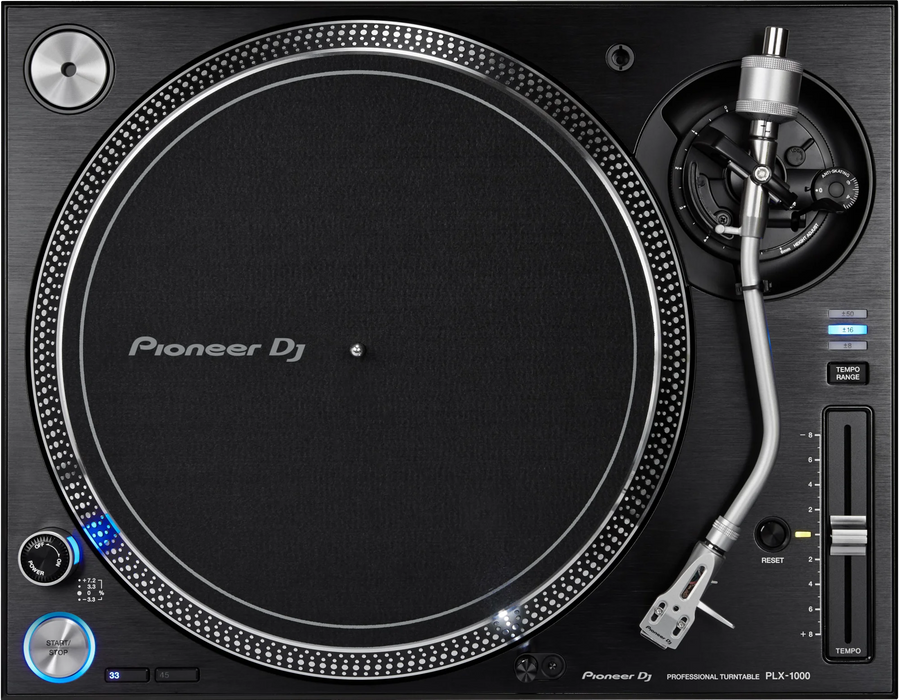

Pioneer PLX-1000K Direct-Drive Turntable
Taxes & Shipping Included
The Pioneer PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.
The Pioneer PLX-1000 - Professional Turntable is designed for personal listening and live performance applications such as DJing at a party or in a club. The table utilizes a high-torque direct drive motor and a classic layout that DJs are familiar with, including tempo control, a start/stop button, and a lighted speed guide. The high-torque motor is capable of at least 4.5 kg/cm of torque and can reach a rotational speed of 33 rpm in 0.3 seconds.
The turntable is built with a heavy-mass zinc die-cast chassis with a reinforced bottom made of 8mm thick resin. The unit's base is reinforced with a 9mm thick vibration dampening material for stable playback. The tonearm uses rubber insulation to minimize howling effects, and the RCA jacks are gold-plated for lower impedance signals and improved sound quality. For convenience and durability the turntable features detachable power and RCA audio cables to prevent turntable failure as a result of cable failure. An integrated Kensington lock allows you to secure the turntable to the DJ booth.
The turntable allows for tempo adjustments of ±8, ±16, and ±50%, with a reset button for instant ±0% fixed rotation speed. It comes with a turntable sheet, a slip mat, a dust cover, a head shell, a balance weight, a sub weight, a shell weight, an adapter for EP records, a power cord, a stereo RCA audio cable, and a ground wire.
Features
- User-Friendly Control Layout
- High-Torque Direct Drive Motor System
- Tempo Control with Variable Width Levels
- Built to Reduce Vibration
- Rubber Encased Tonearm
- Adjustable Pitch Range: ±8, ±16, ±50%
- Die-Cast Zinc Chassis
- Detachable Audio and Power Cables
Turn the tables
The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
Excellent sound design
The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
Pick up the pace
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

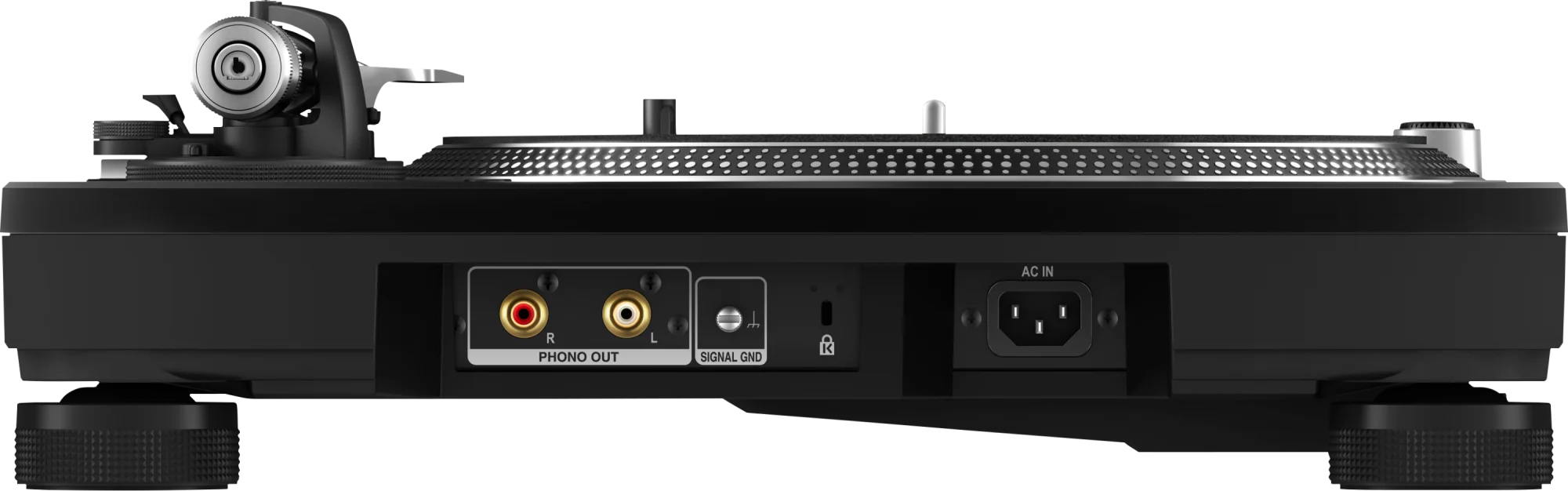

Flexible connectivity
Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
Specifications
Width |
453 mm |
|---|---|
Depth |
353 mm |
Height |
159 mm |
Weight |
14.6 kg |
Drive Method |
Quartz lock, servo-type, direct drive |
|---|---|
Turntable |
Aluminium, die-casting diameter: 332 mm |
Motor |
3-phase, brushless DC motor |
Braking System |
Electronic brake |
Rotation Speed |
33⅓ rpm, 45 rpm |
Rotation Adjustment Range |
±8, ±16, ±50 % |
Wow and Flutter |
0.1 % or less WRMS (JIS WTD) |
Signal-to-Noise Ratio |
70 dB |
Starting Torque |
> 4.5 kgf・cm |
Start Time |
0.3 sec (at 33⅓ rpm) |
Arm Type |
|
|---|---|
Overhang |
15 mm |
Effective Length |
230 mm |
Tracking Error |
Within 3° |
Height Adjustment Range |
6 mm |
Stylus Pressure Variable Range |
0-4 g (1 scale 0.1 g) |
Proper Cartridge Weight |
2.5-12 g (includes mounting materials) |
Outputs |
1 ANALOGUE (RCA) |
|---|
Accessories |
|
|---|
