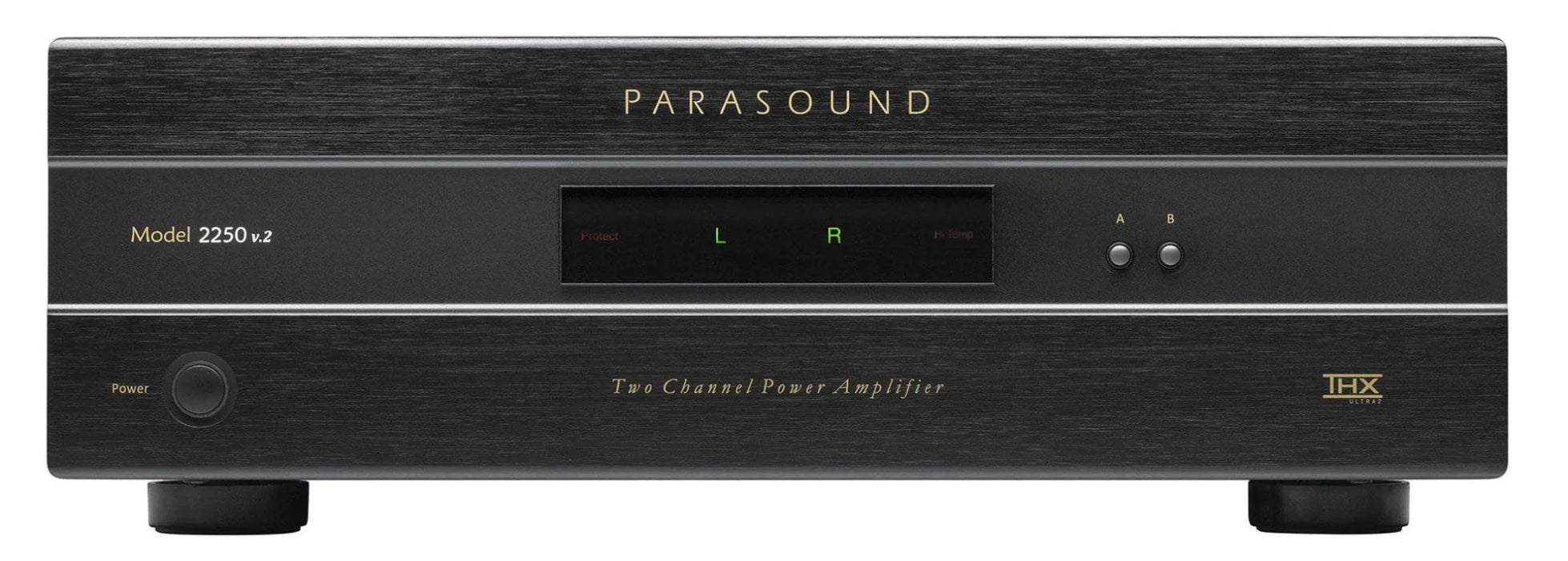

Parasound NewClassic 2250 v.2 - 2 Channel Power Amplifier

by Parasound
₹ 218,000 - ₹ 218,000
₹ 218,000
₹ 218,000
₹ 218,000 - ₹ 218,000
₹ 218,000

Taxes & Shipping Included

  • THX Ultra2 certified
  • 275 watts x 2 into 8 Ω (all channels driven)
  • 400 watts x 2 into 4 Ω or 2 Ω (all channels driven)
  • 750 watts x 1 bridged into 8 Ω or 4 Ω
  • 45 amps peak current per channel
  • 2 Ohm stable operation with load selector switch
  • Two pairs of speaker outputs with front panel A/B buttons
  • Rear-mounted lockout switch disables front A/B buttons
  • High pass filter, switchable for 20Hz or 40Hz
  • Automatic on/off by DC trigger with looping output
  • Automatic on/off by audio signal with 2 sensitivity settings
  • Fully discrete circuitry with high current toroid transformer
  • Bridging switch for stereo or mono operation
  • Efficient, low heat design
  • DC Servo and relay protection circuits
  • Rear-mounted left and right gain controls
  • Standby, channel status and high temperature indicators
  • Gold-plated RCA input jacks
  • Heavy duty 24k gold-plated 5-way speaker terminals
  • 115/230v selector on rear panel

All Channels Driven
275 watts x 2, 8Ω
400 watts x 2, 4Ω
400 watts x 2, 2Ω (Load switch set to 2-3Ω)

Bridged Mono
750 watts x 1, 8Ω
750 watts x 1, 4Ω (Load switch set to 2-3Ω)

Current Capacity
45 amps peak per channel

Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.6 dB

Total Harmonic Distortion
0.20% at full rated output
0.015% at average listening levels

IM Distortion - 0.05 %
Transient IM Distortion - Not measurable

S/N Ratio
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance - 33 k Ω

Input Sensitivity
1 V in for 28.28 V out, THX standard

Inter-Channel Crosstalk
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 – 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
35 watts Idle (no audio)
1000 watts full output

Dimensions
17.25" Wide
18.5" Deep, with cables connected
6" High with feet, 5.25" panel only (3U)
(437 x 470 x 153mm, 133mm panel only)

Net Weight - 43 lbs (19.5 kg)

Rack Mount Accessory
May be Purchased Separately: RMK33
