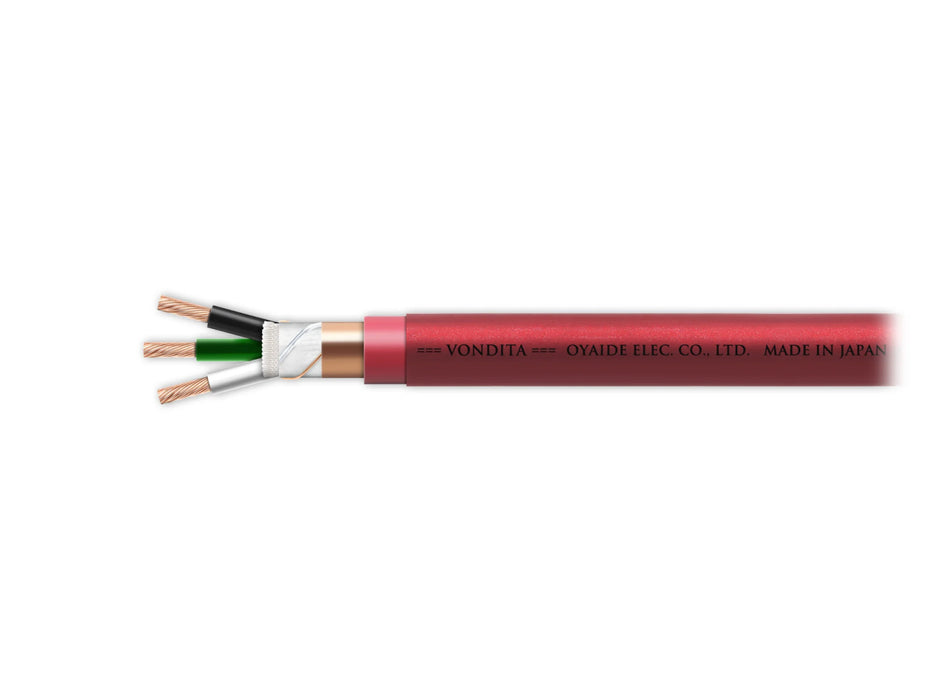

Oyaide Vondita AC Power Cable
Taxes & Shipping Included
A bewitching tone. VONDITA-X was developed based on this concept. Some who have heard its sound have described it as magical, and others have even described it as artistic. A beautiful and magical work of art, the VONDITA-X will continue to captivate the hearts of those who listen to its bewitching and lustrous tones, bringing voices to life from the silence of space.
Features
"102 SSC" - Oyaide Electric Precision Conductor
- To avoid impurities as much as possible, only virgin copper that does not contain any recycled copper is used in accordance with JIS C1011.
- Peeling process is applied to remove 100% of impurities attached to the surface.
- In order to facilitate the flow of electrical signals through the surface layer of the conductor, the strand is made finer using a natural diamond die to improve the surface smoothness of the strand.
- The stranded wire is processed with a processing accuracy of ±1μm, far exceeding the standard error tolerance of ±8μm.
- Two annealing processes are used to eliminate mechanical stress distortions in the strands.
- Thorough product control of manufacturing control values, maintenance, shipping days, etc. Achieved the highest conductivity of 102.3% IACS.

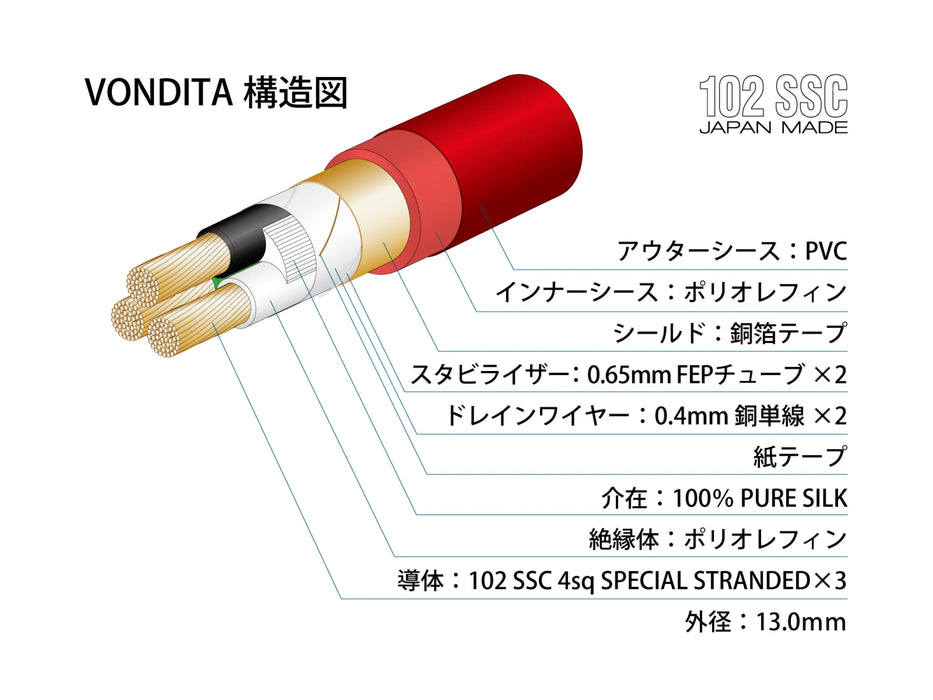

The luxurious use of silk inclusions, the DNA-like double-helix structure of the drain wire, and the outer sheath made of a combination of different materials. All of these are the crystallization of our commitment to thorough vibration control. Vibration suppression is an important element in audio, and this is reflected in the internal design of the cable without compromise. Silk inclusions are also effective in suppressing static electricity. The harmony of these internal designs and the 4.0sq internal conductor with a special twisted structure using the precision conductor "102SSC", provides excellent spatial expression while maintaining quietness and optimal bandwidth balance for music reproduction.
Specifications
Model Name | VONDITA |
---|---|
Cable Structure | 3P Cab-tyre |
Conductor Material | 102SSC(Hot / Cold / Earth ) |
Conductor Size / AWG | 4.0sq(SPECIAL 4E STRANDED)/ ≈11AWG |
Insulator Material | Polymer Polyolefin |
Shield | Copper Foil |
Cable Sheath | PVC + Polyolefin |
Cable O/D | 13.0mm |
Rated V/A | 300V / 20A <PS>E |
