Oyaide OSP-SC Isolation Spikes
Taxes & Shipping Included

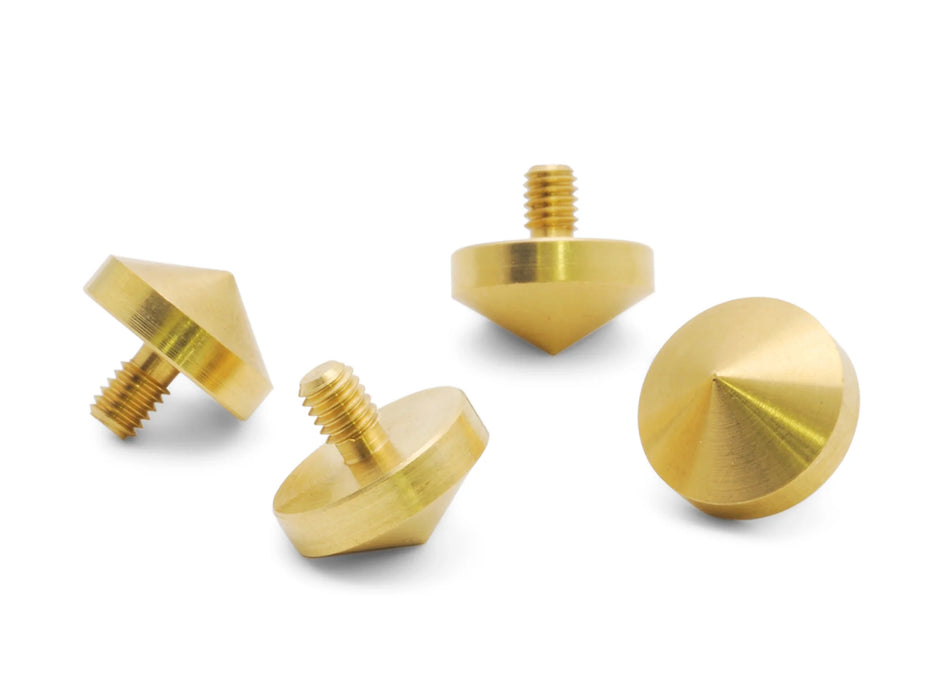

The Oyaide OSP-SC is a conventional "OSP" spike with M4 threads, which can be easily installed by hand into the M4 threaded holes on the bottom corners of the OCB-1 to further enhance the performance of the OCB-1.
The OCB-1 series has undergone a minor change in spring 2012. In conjunction with this change, the OSP-SC, a machined brass spike, an optional product for the OCB-1 series, will be released in the summer of 2012.
Features

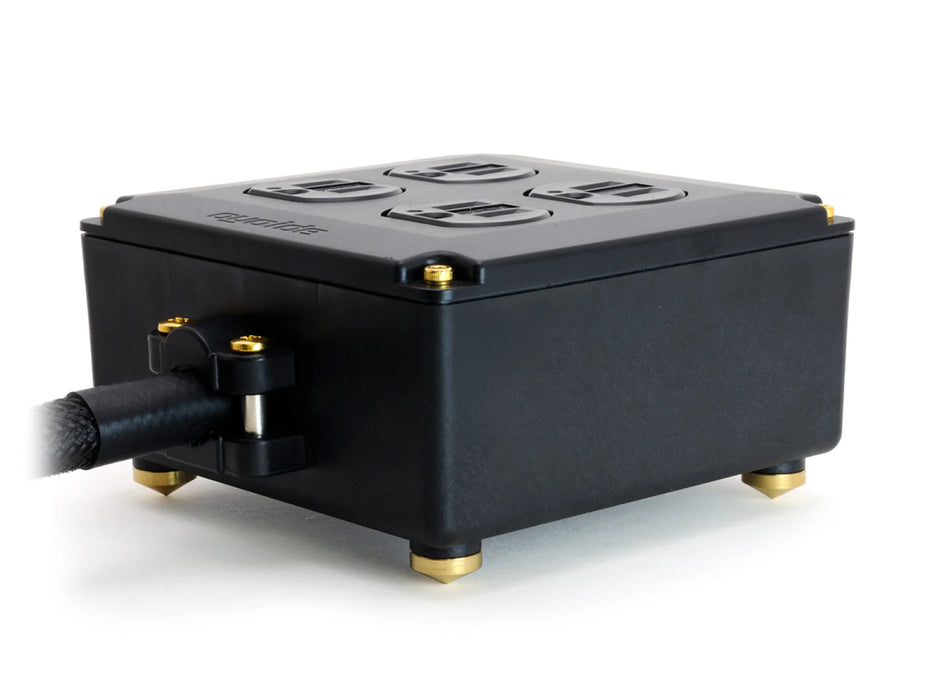

The OSP-SC can be attached to the latest minor change model of the OCB-1 series and is designed to be screwed into the four corners of the bottom surface of the OCB-1. The screw size is M4. Therefore, the OSP-SC can be attached to any model other than the OCB-1 as long as it has M4 size screw holes.

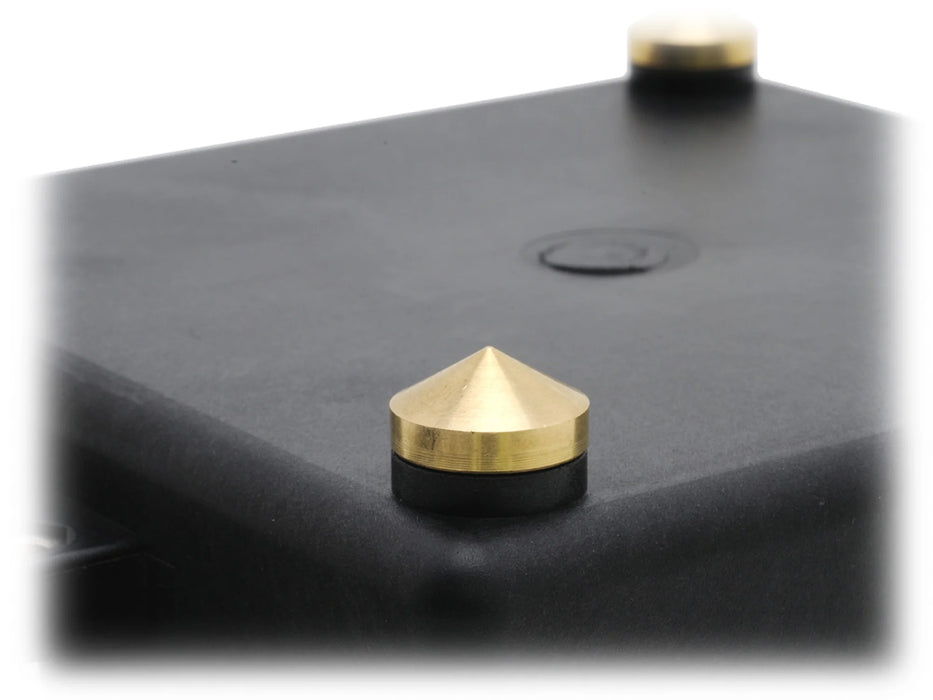

With OSP-SC, OCB-1 achieves point contact and dampens vibrations from the floor surface. By attenuating vibration, which is a major cause of sound quality degradation, OSP-SC further enhances the performance of OCB-1.
Specifications
| Model name | OSP-SC |
|---|---|
| Supported Models | OCB-1EXsⅡ、OCB-1 SX V2 (OCB-1 Series Later Ver.2012) |
| Material | High-purity brass（no surface treatment) |
| Size | φ14mm、full length13mm、Spike angle120° （Spike height7mm、Screw length 6mm、Screw diameter M4 size） |
| Package Unit | 4 pcs. |
