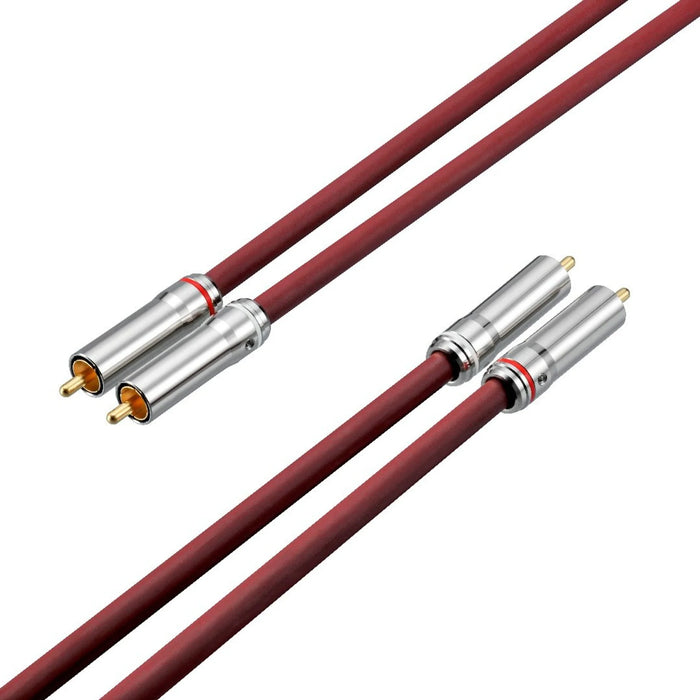

Ortofon Reference Red RCA Interconnect Cable

The Ortofon Reference Red Interconnect cable is a perfect combination of 4N OFC (Oxygen-free copper) and 4N HiFC (High performance pure copper) conductors. These two copper conductor materials are combined to create a warm, dynamic sound with high resolution. The Reference Red is surrounded by shield of both 16 sets of 0.1mm x 10 copper wires and aluminum to reduce electromagnetic induced noise. The gold plated RCA terminals provide easy, stable and durable connection.

The new Ortofon Reference Interconnect cables Series is designed and manufactured by Ortofon Japan.

Each of the new Reference series cables has its individual sonic expression:

• The Reference Red is an all-purpose, decent, but not too expensive cable that would be a great addition to any audio equipment. The sound is relaxed, warm and dynamic with high resolution.
• The Reference Blue is a dynamic and high-resolution cable that reveals detailed reproduction throughout the spectrum.
• The Reference Bronze has an astonishing wide-range, clear and neutral sound.
• The Reference Black is a new generation reference audio cable par excellence with a well-balanced, neutral and precise sound.

Features

• Cable capacity: 190pF/m
• Cable length: 1.0 m or 1.5 m
• Terminal type: RCA
• 2 pieces per set

Specifications

① Signal conductors:
  • OFC (Oxygen-free copper) Ø 0.5 mm + Ø 0.32 mm × 7
  • HiFC (High performance pure copper) Ø 0.12 mm × 28
② Signal conductors:
  • OFC (Oxygen-free copper) Ø 0.5 mm + Ø 0.32 mm × 7
  • HiFC (High performance pure copper) Ø 0.12 mm × 28
③ Damping material: Cotton fiber
④ Shield: Aluminuim tape
⑤ Shield: Braided Tin-plated 3N copper wire Ø 0.1 mm × 10 × 16
⑥ Insulation: Halogen-free highly resilient elastomer
⑦ Cable diameter: 7.5 mm
⑧ Insulation: PE
