Ortofon Reference Bronze XLR Interconnect Cable - The Audio Co.

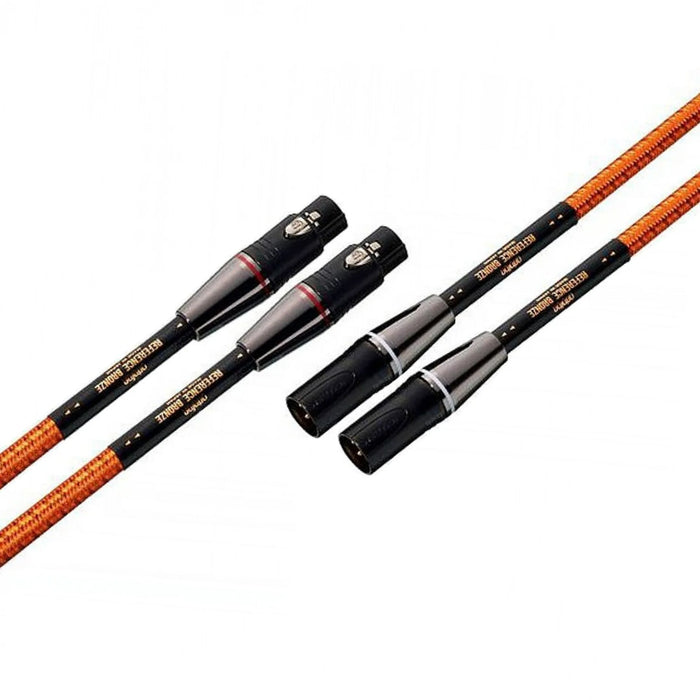

Ortofon Reference Bronze XLR Interconnect Cable

by Ortofon
₹ 85,000 - ₹ 85,000
₹ 85,000
₹ 85,000
₹ 85,000 - ₹ 85,000
₹ 85,000

Taxes & Shipping Included

Length: 1.0m

The Ortofon Reference Bronze Interconnect cable is a combination of three conductor materials: 4N PCUHD (Pure Copper Ultra High Durability), 4N HiFC (High performance pure copper) and 4N OFC (Oxygen-free copper), the Reference Bronze deliveres an astonishing wide-range, clear and neutral sound. Two bundles, each of 4 different kinds of conductors run in parallel and are orientated in such a way that their internal structure are kept asymmetric with respect to each other. Both Nickel plated RCA terminal with rhodium plated housing and gold plated XLR terminal guarantee a durable and quality connection.

The new Ortofon Reference Interconnect cables Series is designed and manufactured by Ortofon Japan.

Each of the new Reference series cables has its individual sonic expression:

  • The Reference Red is an all-purpose, decent, but not too expensive cable that would be a great addition to any audio equipment. The sound is relaxed, warm and dynamic with high resolution.
  • The Reference Blue is a dynamic and high-resolution cable that reveals detailed reproduction throughout the spectrum.
  • The Reference Bronze has an astonishing wide-range, clear and neutral sound.
  • The Reference Black is a new generation reference audio cable par excellence with a well-balanced, neutral and precise sound.

Features

  • Cable capacity: 240pF/m
  • Cable length: 1.0 m
  • Terminal type: XLR
  • 2 pieces per set

Specifications

① Signal conductors: PCUHD (Pure Copper Ultra High Durability) Ø 0.32 mm × 7
② Signal conductors: OFC (Oxygen-free copper) Ø 0.18 mm × 20
③ Signal conductors: HiFC (High performance pure copper) Ø 0.12 mm × 30
④ Signal conductors: HiFC (High performance pure copper) Ø 0.08 mm × 49
⑤ Signal conductors: PCUHD (Pure Copper Ultra High Durability) Ø 0.32 mm × 7
⑥ Signal conductors: OFC (Oxygen-free copper) Ø 0.18 mm × 20
⑦ Signal conductors: OFC (Oxygen-free copper) Ø 0.12 mm × 30
⑧ Signal conductors: HiFC (High performance pure copper) Ø 0.08 mm × 49
⑨ Damping material: Cotton fiber
⑩ Shield: Aluminuim tape
⑪ Shield: Braided 4N OFC (Oxygen-free copper) Ø 0.12 mm × 8 × 24
⑫ Insulation: Halogen-free highly resilient elastomer
⑬ Insulation: Braided nylon fiber
⑭ Cable diameter: Ø 10 mm
⑮ Insulation: PE (Polyethylene)
