Ortofon OM 10 - Moving Magnet Phono Cartridge - The Audio Co.

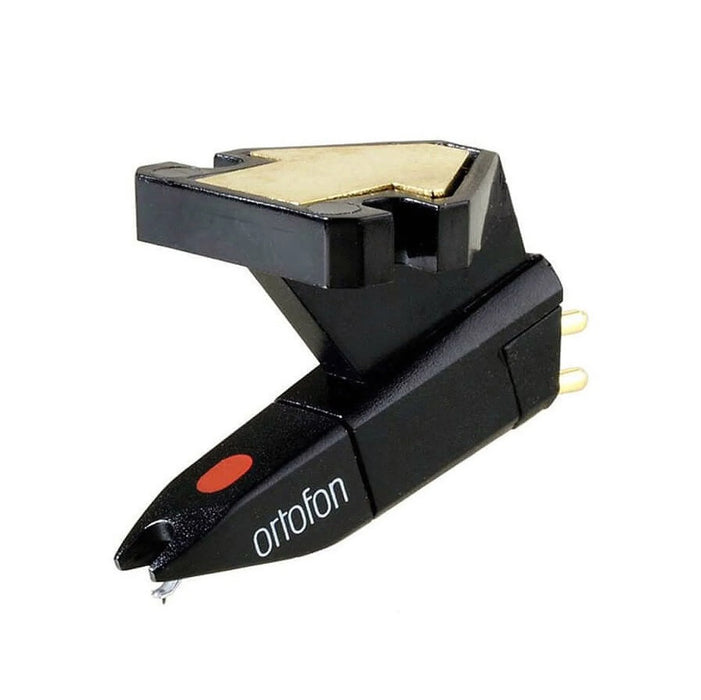

Ortofon OM 10 - Moving Magnet Phono Cartridge

by Ortofon
₹ 14,000 - ₹ 14,000
₹ 14,000
₹ 14,000
₹ 14,000 - ₹ 14,000
₹ 14,000

Taxes & Shipping Included

A perfect match to tonearms. Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. We offer a wide range of replacement styli for OM cartridges.

With the OM cartridge you instantly hear the improvement: music you've heard many times takes on new dimensions.

  • If your tonearm is an standard tonearm, just leave the weight-plate.
  • If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
  • Channel balance at 1 kHz  -  2 dB
  • Channel separation at 1 kHz  -  22 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency response  - 20-20.000 Hz
  • Tracking ability at 315Hz at recommended tracking force *) - 70 µm
  • Compliance, dynamic, lateral  -  25 µm/mN
  • Stylus type  -  Elliptical
  • Stylus tip radius  -  r/R 8/18 µm
  • Tracking force range  -  1.25-1.75 g
  • Tracking force, recommended  -  1.5g
  • Tracking angle  - 20°
  • Internal impedance, DC resistance  -  800 Ohm
  • Internal inductance  -  450 mH
  • Recommended load resistance   -  47 kOhm
  • Recommended load capacitance -   200-500 pF
  • Cartridge colour, body/stylus - Black/Black
  • Cartridge weight -  5 g
