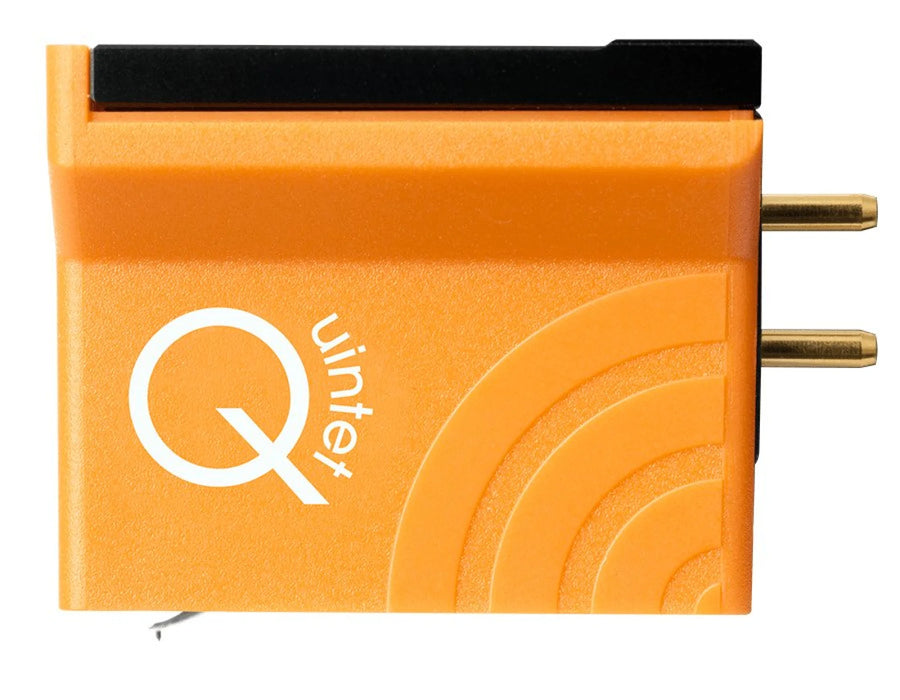

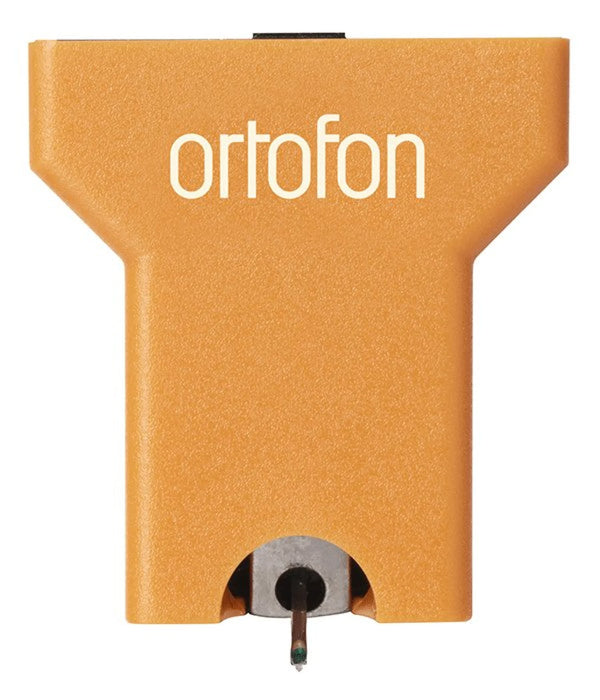

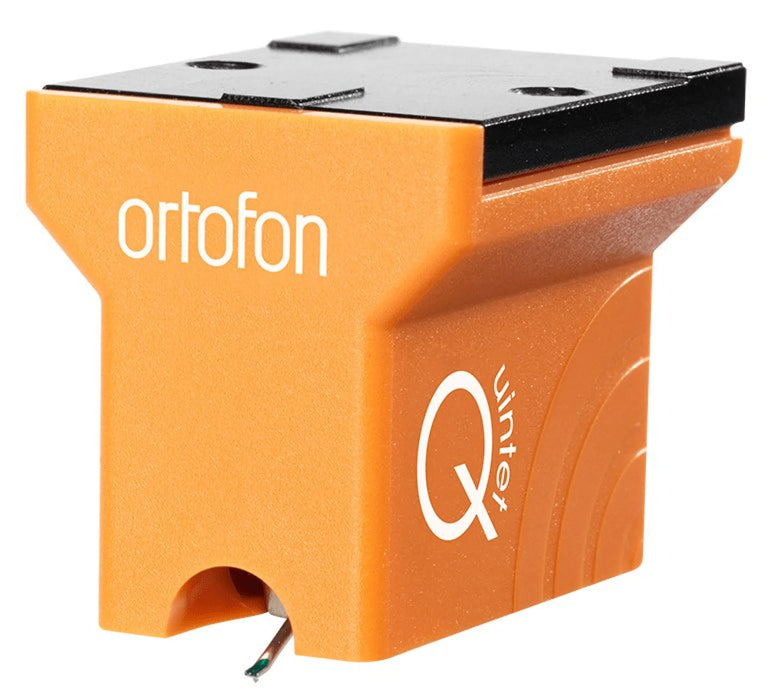

Ortofon MC Quintet Bronze - Moving Coil Phono Cartridge
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. The MC Quintet Bronze Moving Coil Phono Cartridge is a direct result of our continued research and innovation.
Since 1948 Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
It is our aim to bring our customers many hours of new and surprising experiences in listening to their precious vinyl collection.
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
- MC Quintet Mono is a true mono cartridge for playing mono microgroove vinyl records
- MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- MC Quintet Blue adds more dynamics and resolution, sounds more open and reproduces more details
- MC Quintet Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
- MC Quintet Black S is the best of everything, true to the groove with resolution and accurate insight into each recording
The Quintet Bronze moves into the higher league of the Quintets.
The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.
Additionally its larger footprint ensures reduced distortion and record wear.
The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
- Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
- Channel balance at 1 kHz - < 1.2 dB
- Channel separation at 1 kHz - > 23 dB
- Channel separation at 15 kHz - > 15 dB
- Frequency response 20-20.000 Hz - +/-1.5 dB
- Tracking ability at 315Hz at recommended tracking force *) - 80 µm
- Compliance, dynamic, lateral - 15 µm/mN
- Stylus type - Nude Fine Line
- Stylus tip radius - r/R 8/40 µm
- Tracking force range - 2.1-2.5 g (21-25 mN)
- Tracking force, recommended - 2.3 g (23 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 5 Ohm
- Recommended load impedance - > 20 Ohm
- Cartridge body material - ABS/Aluminium
- Coil wire material - Pure 4-nines copper
- Cartridge colour - Bronze
- Cartridge weight - 9 gram
