Norma REVO PA-150 Reference Stereo Power Amplifier

by Norma Audio
₹ 821,990 - ₹ 855,990
₹ 821,990
₹ 821,990
₹ 821,990 - ₹ 855,990
₹ 821,990
Color: Silver

The Norma REVO PA 150 represents the best expression of the classic stereophonic amplifier… a timeless classic! Versatile in terms of use, these electronics can be combined with almost any type of speaker: dynamic, electrostatic, magnetodynamic, high and low efficiency… each of these, in its own peculiarity, will be able to express itself to the fullest of its features by acquiring dynamics, speed, extension, soundstage, but above all bringing the listener closer to the musical truth. This is Norma’s mission! The considerable sizing of the power supply and the very high current available at the output give REVO PA 150 excellent delivery and load control capacity. Its power doubles on a 4 ohm load, so even lower loads are handled with maximum ease.

The features of REVO PA-150 make it an extremely versatile power amplifier. Its high power (140W/8Ohm), the ability to drive the most demanding speakers and sound characteristics, make it unique. Power, dynamics, speed and transparency are combined to make a total lack of listening fatigue and outstanding musicality.
These features make it a perfect match with the preamp REVO SC-2 LN, which expresses the same sound personality.

But, also for people who want to combine it with other preamps, the REVO PA-150 can become a perfect partner. For example, with the best tube preamps you can enhance the characteristics of sound, giving an extraordinary ability to drive the speakers without introducing any harshness in the sound and the listening fatigue often present in solid state amplifiers.

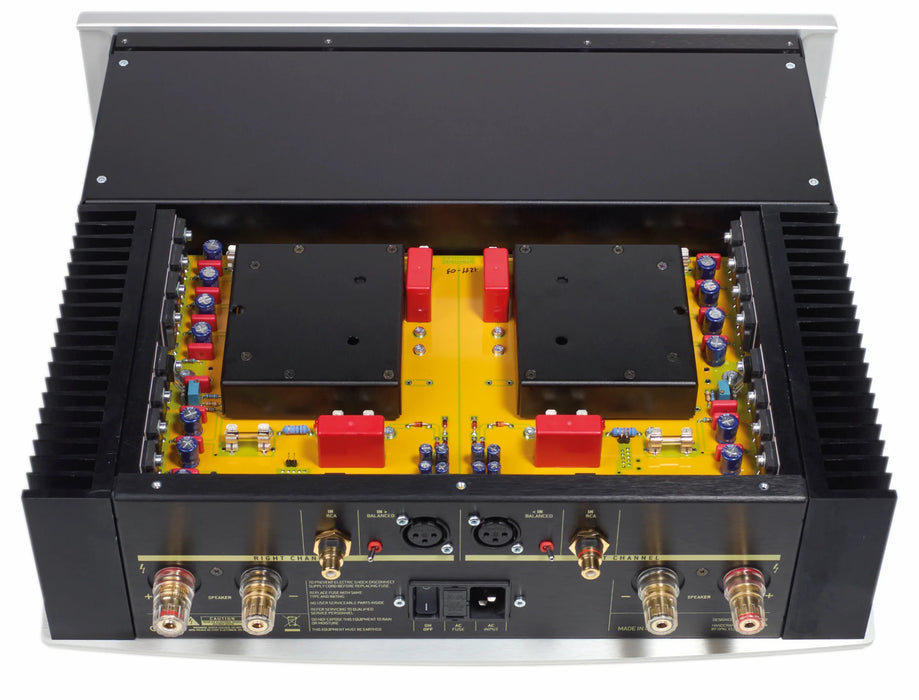

The inside workings show that the technical refinement follow the same philosophy. The REVO PA-150 uses a proprietary circuitry, regulated high-speed power supply, low noise and is built with a careful selection of the best available materials.


Features

  • Extreme low noise, high speed schematic topology and wide band (>2 MHz)
  • Separate power supply for Gain, Driver and Output stages.
  • High speed and low noise regulated power supply for gain and driver stage.
  • High current MOS-FET power device (200 A output peak current).
  • 16 power device for a total rated 2.000 W power handling capability.
  • High filtering capacity (70.000 uF) with numerous (24) low impedance capacitors.
  • Full aluminium non-magnetic frame.
  • Toroidal power transformers specially designed for audio applications, low flow dispersion, low mechanical noise, high permeability magnetic core with consequent low output impedance, 2 x 400 VA.
  • Inputs configurable RCA (unbalanced) & XLR (balanced).
  • Inputs selection by relay with GOLD/PALLADIUM contacts.
  • RCA solid core gold plated plug connector for any signal connections.
  • DC Protection for sensitive speakers.
  • Made in Italy

Specifications

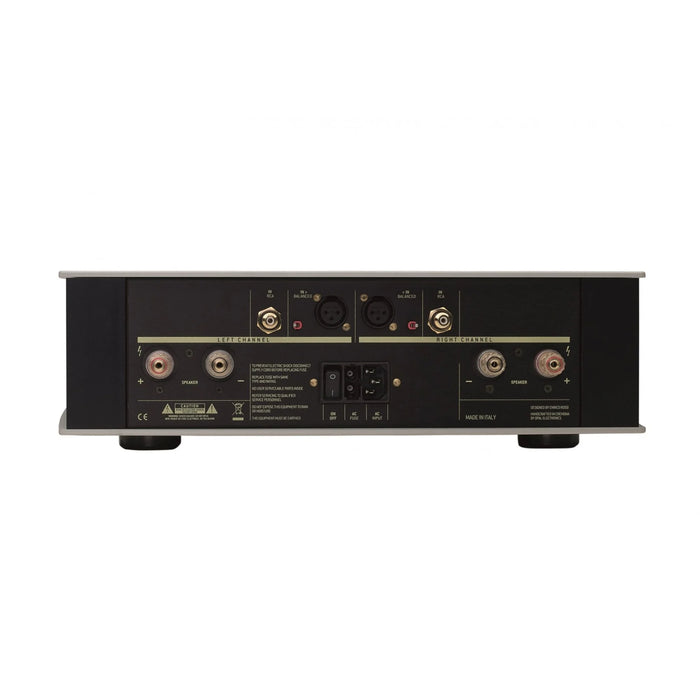

  • Connections 1 RCA, 1 XLR Balanced
  • Input Impedance 47Kohm (non sel. input) / 33Kohm (sel. input)
  • Outputs Voltage 1 Binding Post couple, 4mm Banana and forks
  • Frequency Response 0 Hz – 2.0 MHz (-3dB, non filtered)
  • Output Power 150W RMS / 8Ohm – 280W RMS / 4 Ohm (per channel)
  • Gain, Sensitivity 28.5 dB, 1.30 V r.m.s. / 150 W – 8 Ohm
  • Configuration Dual Mono
  • Configuration Solid state
  • Power devices MosFet, 4 couple each channel
  • Available output current 48A continuous, 200 A peak (each channel)
  • Capacity of filter 72.000 Uf, 12 capacity for each channel
  • Electric Transformers 2 toroidal special audio use, 400 VA each channel
  • Supply 230 V AC / 50 Hz
  • Dimensions (HxWxD) 110x430x365mm (excluding footers and rear connections )
  • Weight 25 Kg

 Support

Awards& Reviews

About

Norma is based in Cremona, Italy.

The city and its surroundings are well known all over the world for being home to great composers as Monte-verdi and Ponchielli, and to famous violin makers such as Stradivari, Amati, Guarneri and many others. As of today, more than 100 violin makers’ shops are found in the ancient roads of the city.

In this inspiring context, where music permeates everything, for more than 20 years Norma has been involved in the study and implementation of sophistica- ted audio amplifiers, where technical skills and musical sensitivity must be merged together, in the same way the best musical instruments are made.

The result of this endeavor is a unique sound, which represents a synthesis of parameters usually set one against each other: dynamics, speed, and absolute transparency are combined with extraordinary musica- lity and total lack of listening fatigue.

The struggle between solid state and valves is finally overcome, as is the concept or reproduction.

Norma brings the listener to an intimate relation with the original event.
