Neutrik NL4MPR speakON Panel Mount Connector - Home Audio Accessories

Neutrik NL4MPR speakON Panel Mount Connector

by Neutrik
₹ 1,490 - ₹ 1,490
₹ 1,490
₹ 1,490
₹ 1,490 - ₹ 1,490
₹ 1,490

Taxes & Shipping Included

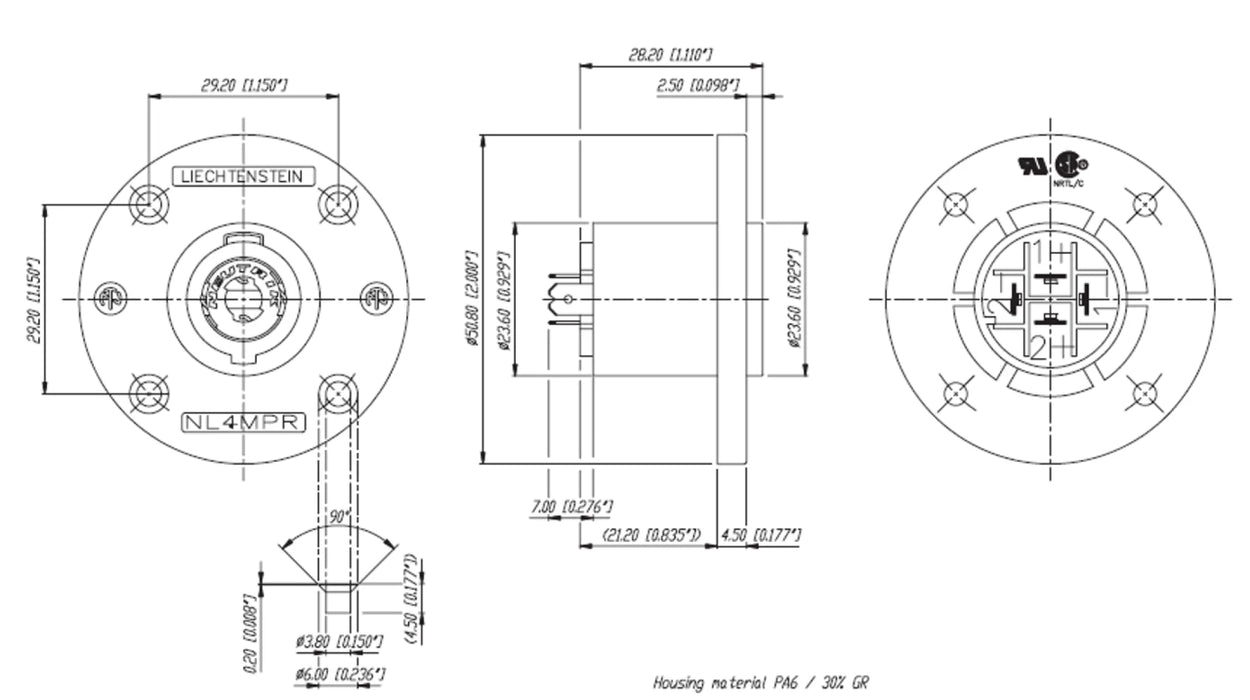

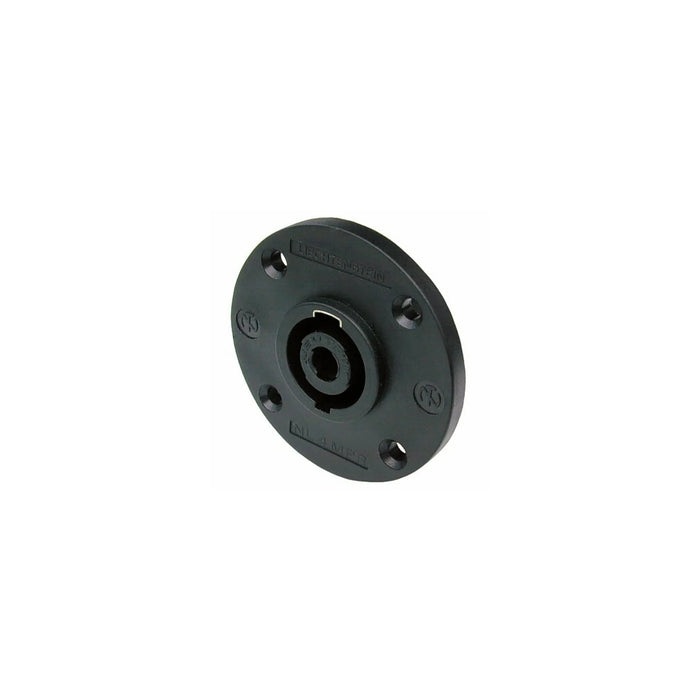

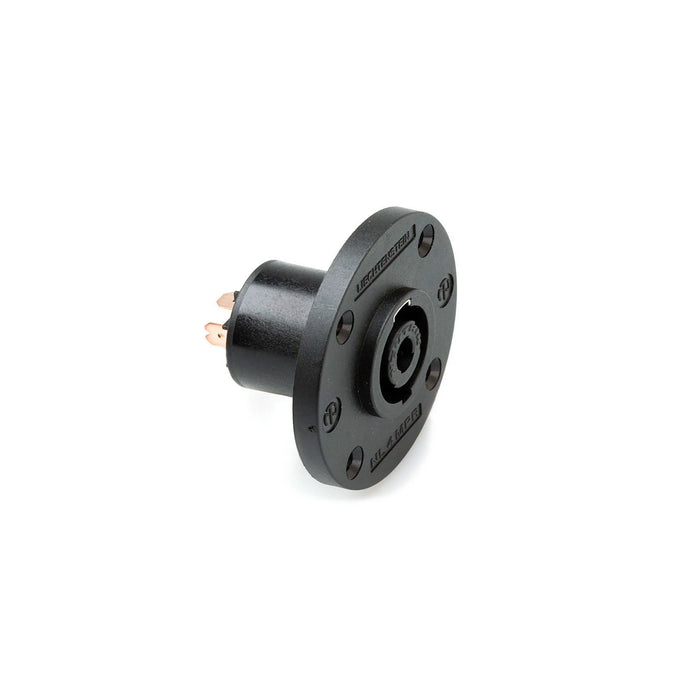

Neutrik speakON panel mount connectors are the go-to choice for secure loudspeaker and amplifier connections. Their distinctive metal locking mechanism ensures a reliable contact only when fully engaged. Designed for durability and versatility, these connectors are simple to install. This 4-pole chassis connector features a black round G-size flange with countersunk holes and 3/16" flat tabs for a seamless fit.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. 4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.

Price per connector (01 no.)

Features
  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
Specifications
Title NL4MPR
Connection Type speakON
Gender male



ontact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!



Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape round G-size flange
Layout four thru holes



Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black



Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Description

Neutrik speakON panel mount connectors are the go-to choice for secure loudspeaker and amplifier connections. Their distinctive metal locking mechanism ensures a reliable contact only when fully engaged. Designed for durability and versatility, these connectors are simple to install. This 4-pole chassis connector features a black round G-size flange with countersunk holes and 3/16" flat tabs for a seamless fit.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. 4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.

Price per connector (01 no.)

Features
  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
Specifications
Title NL4MPR
Connection Type speakON
Gender male



ontact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!



Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape round G-size flange
Layout four thru holes



Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black



Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
