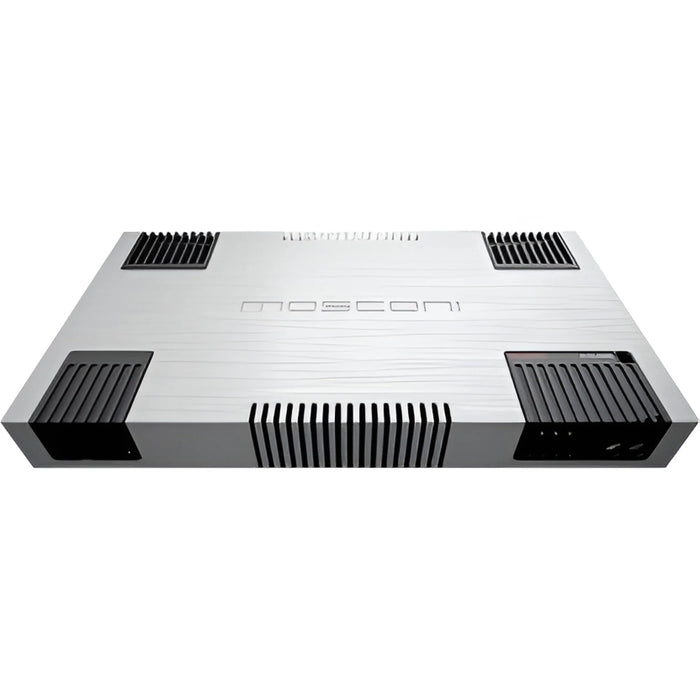

Mosconi Gladen Zero 4 - Four Channel Amplifier

4 Channel amplifier
Available in Silver-Satin Finish
Power Rating: 2 CH x 100 Watt & 2 CH x 210 Watt @ 4 Ohm < 1% THD+N
Sn Ratio: >80 dBA [CH1/2] >76 dBA [CH3/4] (ref: 1 Watt into 4 Ohm)

AB class, full MOSFET
1 Ohm stable.
Very low THD and IMD
Regulated power supply
High/Low level selector (HL / LL)
Auto REMOTE function
Cross Over with separate High Pass and Low Pass filter, Band Pass allowed
Slot for G_cards (G_HOC, G_HP, G_LP, G_FSA)
Remote Volume Control RTC_MOS (optional)
Side panels in soft touch finishing with red LED lighting

Target powers (CH1/2 + CH3/4):

• 2 x 100 + 2 x 210 Watt per channel @ 4 Ohm
• 2 x 145 + 2 x 325 Watt per channel @ 2 Ohm
• 1 x 290 + 1 x 650 Watt @ 4 Ohm BTL Mode*
• 1 x 245 Watt @ 4 Ohm + 1 x 900 Watt @ 2 Ohm (BTL Mode*)

Input sensitivity: (Power rating ref)

• 0.39 V ÷ 8.6 V (LL) / 1.1 ÷ 25 V (HL)

Xover functions (BAND Pass allowed):

• CH1/2 FILTER1: 20 ÷ 175 Hz (HP or LP x1/ x10 )
• CH1/2 FILTER2: 50 ÷ 300 Hz (HP or LP x1/x20 )
• CH3/4 FILTER: HP (20 ÷ 175 Hz ) & LP (50 ÷ 300 Hz)
• FILTER1 + FILTER2 ( CH1/2) Band Pass Allowed
• FILTER (CH3/4) Band Pass Allowed
• 12 dB/oct – 0.7 (Stereo & Mono)

Size:

• 450x250x50 mm

Weight:

• 5,1 Kg
