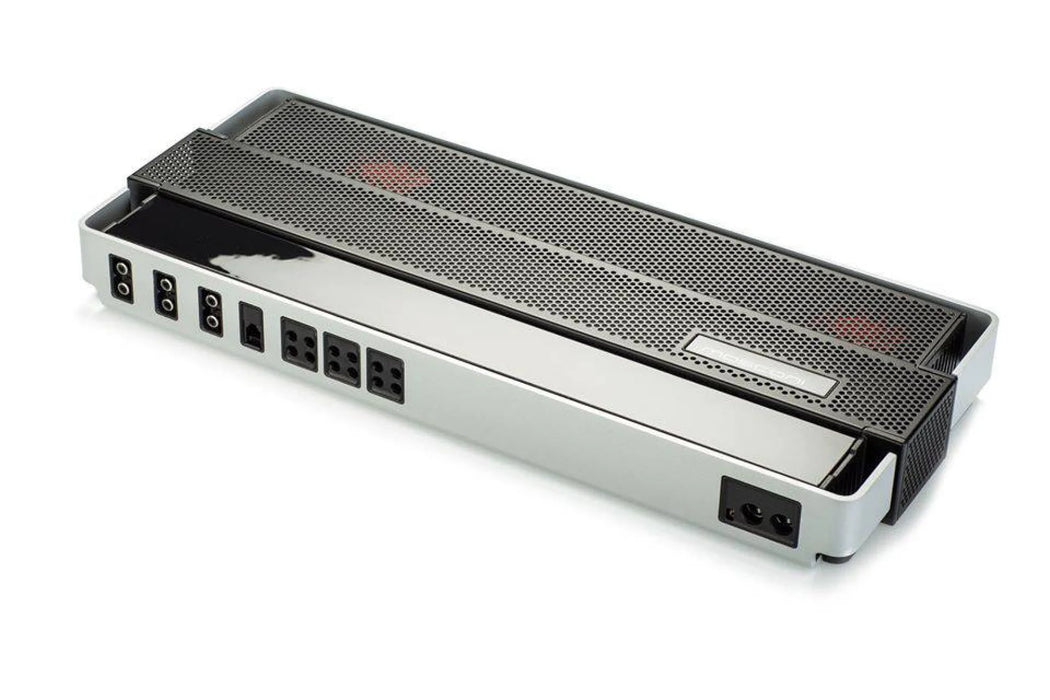

Mosconi Gladen PRO 5|30 - Five Channel Amplifier
5 Channel Reference Hybrid Amplifier
This debut amp from Mosconi’s new PRO series amplifier Mosconi Gladen Pro 5/30 is the latest EISA Best Product 2017-18 from the brand. Boasting five independent channels of power – the first stereo pair provides 85W, the second pair 170W while the final channel uses a Class D amp to pipe a substantial 600W to the subwoofer. Maximum flexibility is ensured thanks to the inclusion of separate active crossovers in all channels or, alternatively, all crossovers can be bypassed to adapt the input parameter for use with Mosconi’s DSP.
Power Rating: xxx Watt per channel @ 4 Ohm < 1% THD+N
Sn Ratio: > xx dBA (ref: 1 Watt into 4 Ohm)
Available in Black/Silver finishing
Target powers:
- 95×2 + 185×2 + 660×1 Watt @ 4 Ohm
- 150×2 + 290×2 + 1030×1 Watt @ 2 Ohm
Input sensitivity: (Power rating ref)
- 0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]
- 0.14V ÷ 5.9V (3.1V in DDSP mode) [CH5]
Crossover functions:
- CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
- CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]
- CH5= LP: 43 ÷ 200Hz [24 dB/oct]
Special features:
- Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
- High Level / Low Level selectable input
- RTC input
- Internally controlled via Atmel Processor
Size:
- 500 x 205 x 55 mm
Weight:
- 5.4 Kg
