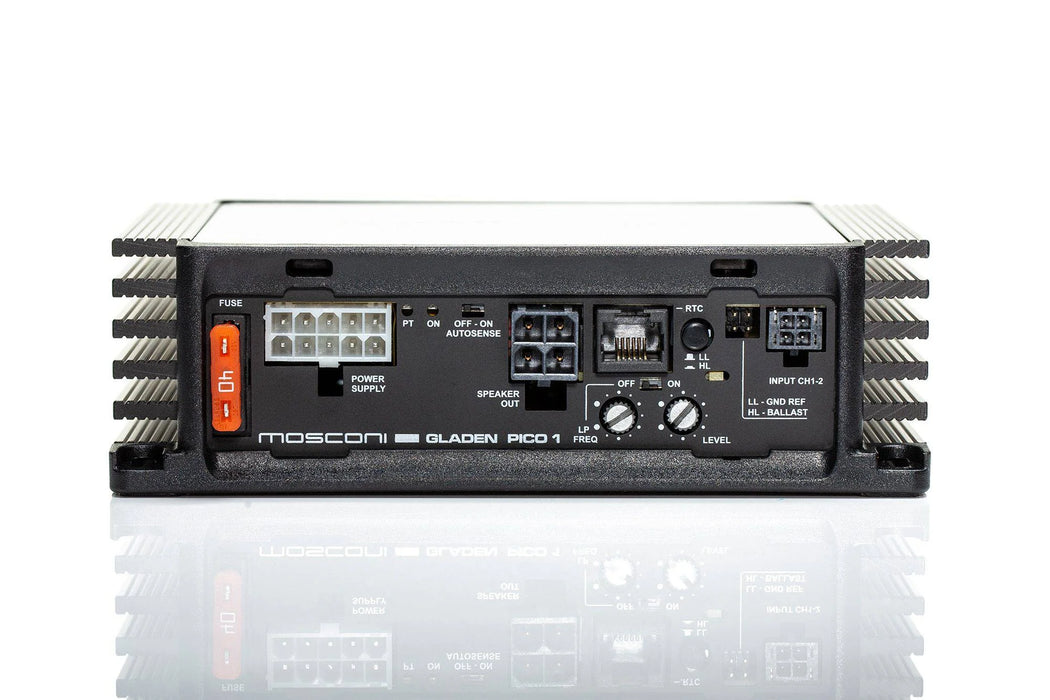

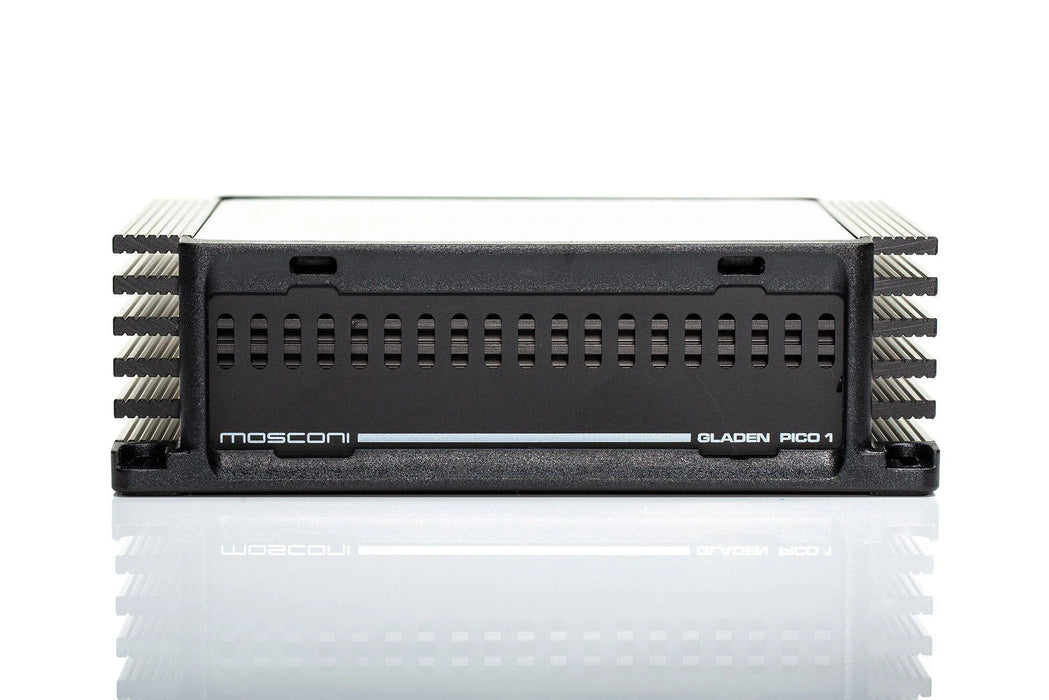

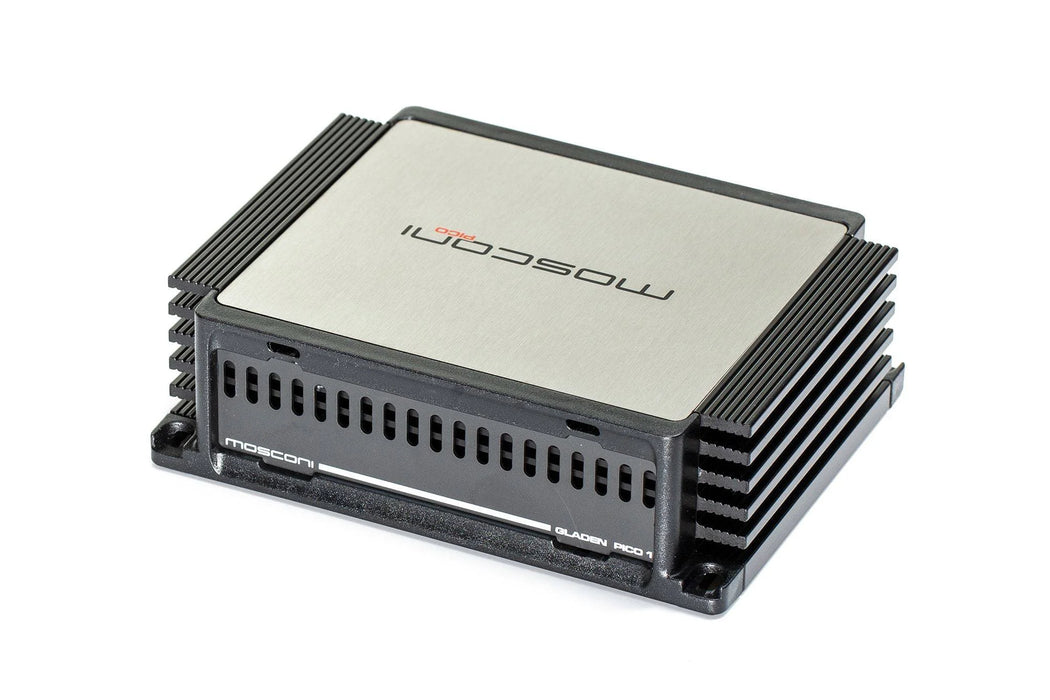

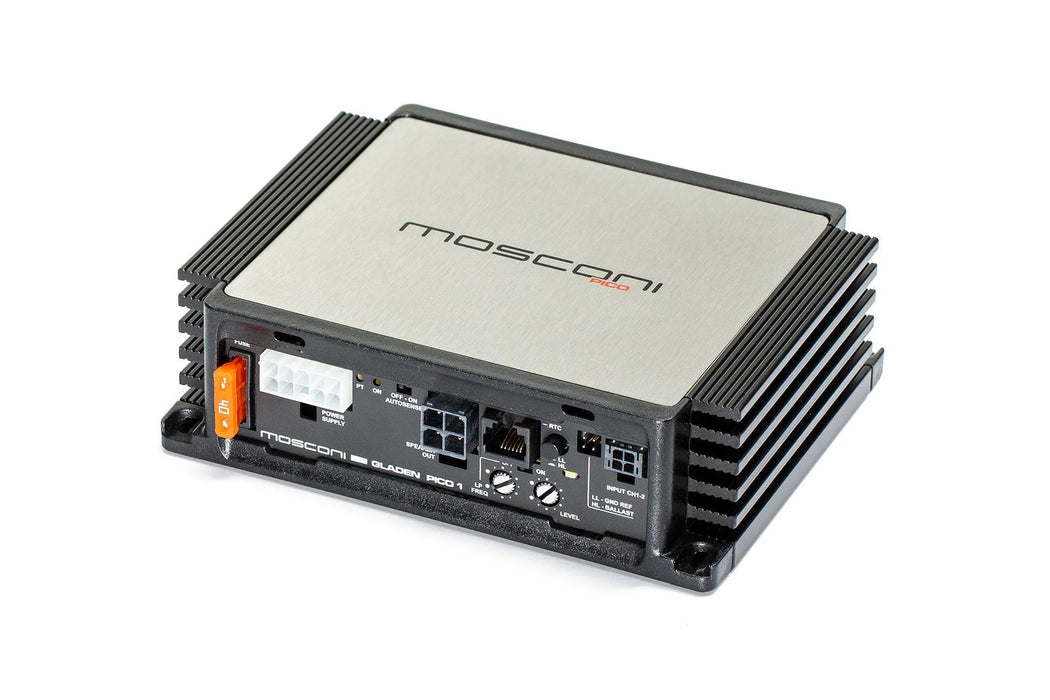

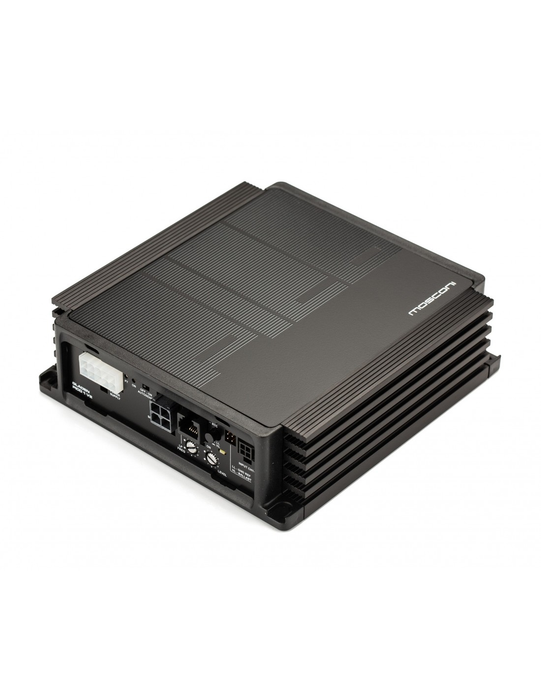

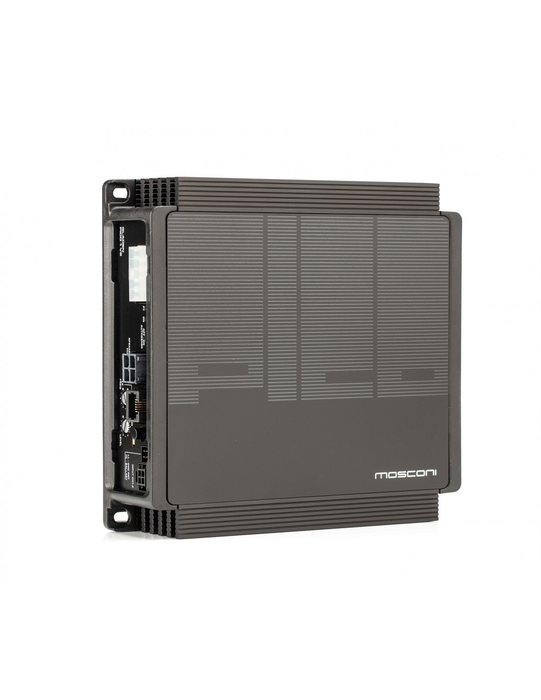

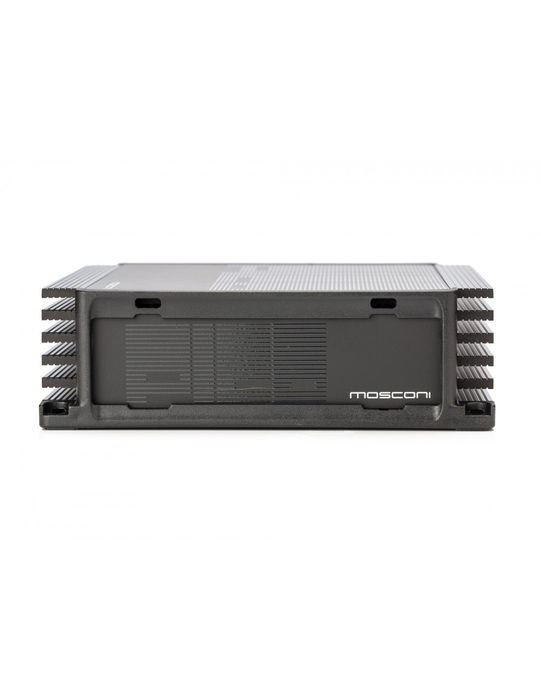

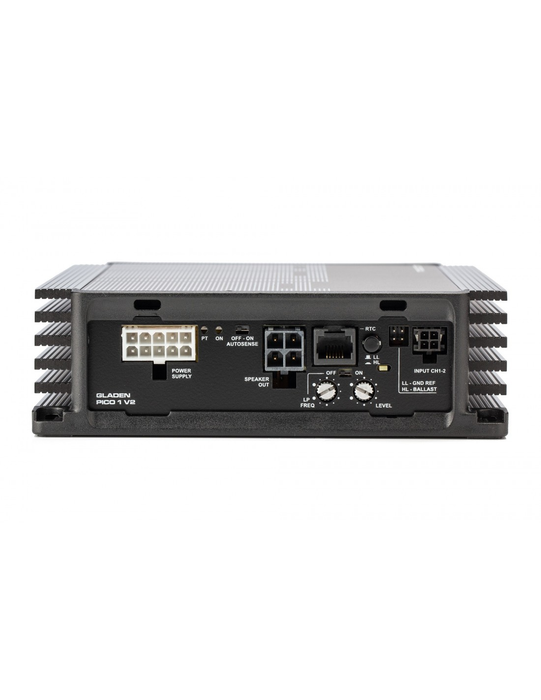

Mosconi Gladen PICO 1 v2 Monoblock Amplifier

Full-range PWM amplifier with separate, synchronized modulation and fast high-current mosfets. The Mosconi PICO 1 delivers a full 900 Wrms into 1 ohms. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

• Automatic switch-on (only high level, SE or BTL mode)
• Remote volume control (optional)
• Molex connectors

Features

• 1 channel amplifier
• Class D technology
• Up to 900 Watts @ 1 Ohm
• Made in Italy

Specifications

• Output power RMS @ 4Ω: 1 x 350 Watts
• Output power RMS @ 2Ω: 1 x 600 Watts
• Output power RMS @ 1Ω: 1 x 900 Watts
• Input voltage: 0,3 V - 20 V
• Overall efficiency: > 75 %
• Auto-On (only High Level): Off - BTL
• Low-pass filter: Off / 45 - 310 Hz (12 dB/Oct)
• Subsonic filter (always on) : 13 Hz (12 dB/Oct)
• Dimensions: 150 x 115 x 46 mm
• Weight: 1050 Gramm

Support

• Manual
• Ground Reference
